Description

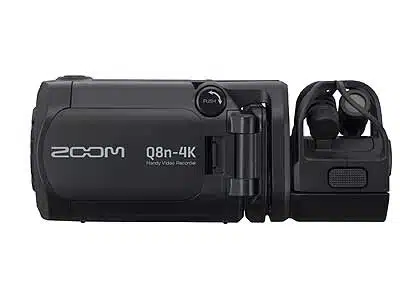

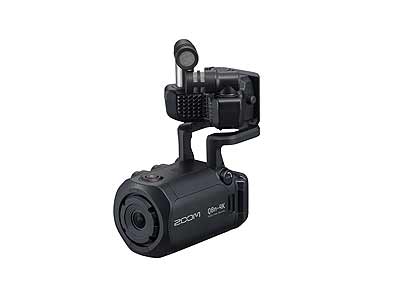

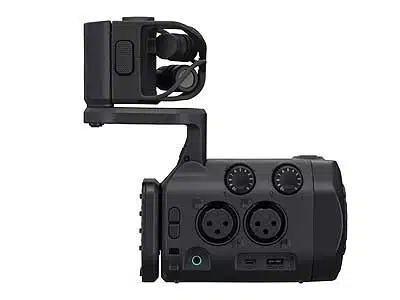

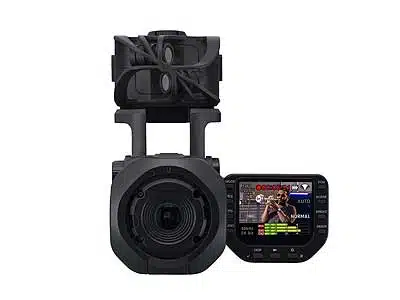

Zoom Q8n-4K

Zoom Q8n-4K is designed to capture professional-grade audio with 4K video in a versatile, all-in-one handy recorder. It is the perfect video production and livestreaming solution for today’s musicians, filmmakers, podcasters and more.

VIDEO PRODUCTION BEYOND THE LIMITS OF A SMARTPHONE

Zoom Q8n-4K is designed for creators to showcase your best sound and look, elevating your videos with four audio tracks, along with 4K UHD video.

LIGHT WEIGHT, LIGHT ON THE WALLET

Compared to a mirrorless or DSLR, this camera’s size is meant to seamlessly fit into your production while its price ensures that it fits into your budget.

4-TRACK MINDED

With the included X/Y mic capsule and two XLR inputs, you can capture up to four tracks of simultaneous, crystal-clear audio.

Capture every instrument and voice of your band by running the main outputs of a mixing board right to your Q8n-4K.

CAPTURING PERFORMANCES

Take advantage of the Q8n-4K’s compact size, vivid imagery, and high-quality audio, recording your genuine look and sound during live or studio performances.

Record in 4K resolution at 30fps. With the F2.8/150º wide-angle lens, five field of view (FOV) settings, and brightness adjustments, the Q8n-4K produces vivid video quality at every shoot.

LiveStreams

Easily connect via USB to your computer and stream to your favorite platforms.

LISTEN UP

Use the stereo headphone output jack and on-screen level meters to monitor your sound.

INDEPENDENT FILMMAKING

The Q8n-4K is compact and mobile, perfect for run-and-gun shoots while operating handheld or with a gimbal.

SELFIE MODE

Be the star of your own production. Use the flip-out screen to view yourself while operating the Q8n-4K.

POWER YOUR SHOOTS

Choose the right power source for your shoot by using the camera’s rechargeable Li-ion battery, charge via USB or with an optional AC adapter, all while recording to a mini-SD card up to 512GB.

Control App

The Q8n Control app (for iOS / for Android) allows you to remotely monitor your levels and start and stop recording.

Features

4K video and 4-track audio recorder
High-quality 150º wide-angle lens with 5 field of views
Interchangeable Zoom mic capsule system
Two XLR mic/line input (with phantom power)
Full-color flip LCD for self-movie capture
USB interface for livestreaming / data transfer
iOS/Android apps for remote control*

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Specifications
Image Sensor	1/2.3″ 16 M-pixel CMOS sensor
Lens	F 2.8, 150° FOV
Video Format	MPEG-4 AVC/H.264 (MOV)
Video Resolutions
4K	30, 25, 24
1080	60, 50, 30, 25, 24
720	60, 50, 30, 25, 24
Audio Formats
WAV:
96 KHZ	24-bit, 16-bit
48 KHZ	24-bit, 16-bit
44.1 KHZ	24-bit, 16-bit
Audio Functions
LO CUT	Off / 80 Hz / 120 Hz / 160 Hz / 200 Hz / 240 Hz
FX	Off / Limiter / Compressor / Leveler / DeEsser / NoiseGate
LEVEL	−∞ dB – +10 dB
PAN	L100 – Center – R100
DELAY	0 ms, 10 ms … 300 ms (only during web camera use)
DIRECT MONITOR	On/Oﬀ (only during web camera and USB mic
Image Functions
FOV	5 steps
SCENE	AUTO / INDOOR / OUTDOOR / NIGHT / CONCERT LIGHT
SELF TIMER	OFF / 3 sec / 5 sec / 10 sec
BRIGHT	LOW / NORMAL / HIGH
Display	2.0″ full-color LCD 320 × 240
Audio Inputs
MIC	XY Mic: XYQ-8 (120° XY stereo mic）
	Maximum sound pressure: 120 dBSPL
	Input gain: −∞ dB – 43 dB
INPUT 1 / 2	Input connector: XLR
	Input gain (PAD OFF): −∞ dB – 55 dB
	Input impedance : 1.8 kΩ or more
	Maximum permissible input level: +26 dBu (PAD ON)
	Phantom power: +12 V / +24 V / +48 V
	Equivalent input noise: –120 dBu or less
Output Connectors	Combined line/headphone stereo mini jack
Output Connectors	HDMI micro Type D
Built-in Speaker	300 mW 8 Ω mono speaker
Recording Media	microSD / microSDHC / microSDXC (512 GB maximum)
USB
USB TYPE-C
WEBCAM	Class: UVC 1.0 + UAC 1.0
	Formats: 720 p, 1080 p WVGA video
	48 kHz/16-bit audio stereo output
CARD READER	Class：USB Mass Storage
USB MIC	Class: UAC 1.0, Format: 44.1 kHz/16-bit
	2-input/2-output
	Note: card reader and USB mic functions support iOS devices
	Note: supports USB bus power operation
	Note: Use USB cable that supports data transfer.
Remote	ZOOM BTA-1 or other dedicated wireless adapter
Power	Lithium-ion battery: DC 4.2 V maximum voltage, DC 3.7 V nominal voltage, 1600 mAh capacity
Power	AC adapter (ZOOM AD-17): DC 5 V/1 A
RECHARGING TIMES	By USB 2.0 port: about 4 hours and 30 minutes
	By USB 3.0 port: about 3 hours
	Using ZOOM AD-17: about 3 hours
BATTERY OPERATION TIME	4K/30: 1 hour and 20 minutes
	1080/30: 2 hours and 30 minutes
	Note: Times when MOV mode, 48 kHz/24-bit, XYQ-8 connected, no XLR input, Power Saving enabled
External Dimensions
MAIN UNIT (MIC ARM LOWERED)	159 mm (D) × 68 mm (W) × 65 mm (H)
MAIN UNIT (MIC ARM RAISED)	134 mm (D) × 68 mm (W) × 135 mm (H)
MIC	45 mm (D) × 66 mm (W) × 51 mm (H)
Weight	367 g (including battery)

Click to rate this post!

[Total: 0 Average: 0]

In The Box

Q8n-4K Handy Video Recorder
BT-03 Battery
Lens Cover
Lens Hood
Windscreen
USB Cable
Quick Guide
