AJA BRIDGE LIVE 3G-8 Multi-Channel SDI/IP Streaming Solutions

Description

AJA BRIDGE LIVE 3G-8 Low Latency Turnkey Systems with 1 RU Appliance + 8 Bi-directional 3G-SDI connectors

The BRIDGE LIVE family are the broadcast quality, low latency turnkey systems for REMI, Synchronous Multi-Channel Video Contribution, Remote Collaboration, Direct to Audience Streaming, and Multi-Bitrate/Multi-Format Delivery via a wide range of IP video standards and/or SDI. New to the BRIDGE LIVE family is the AJA BRIDGE LIVE 3G-8 is a high-density HD version of BRIDGE LIVE, which supports up to 8x bi-directional 3G-SDI I/O.

BRIDGE LIVE and BRIDGE LIVE 3G-8 were developed as a collaboration between AJA and Comprimato to deliver the performance, reliability, and ease of use necessary for critical live encode, decode, or transcode needs. Equipped with either 12G-SDI I/O or 3G-SDI I/O with the power and flexibility to enable real time, bidirectional encoding, decoding, and transcoding for critical UltraHD or HD workflows, BRIDGE LIVE is an essential part of any modern video production toolkit. A compact and robust 1RU form factor, with redundant power supplies, and a three-year warranty, means peace of mind even when dealing with the most demanding applications.

Whether facilitating remote production, interviews, live event streaming, synchronous multi-camera backhaul with HDR, cloud contribution, program return, confidence monitoring, collaborative production, or ABR ladder profiles to hand off for OTT packaging, BRIDGE LIVE ensures simultaneous, secure, and reliable workflows over purpose built dedicated lines or the public internet.

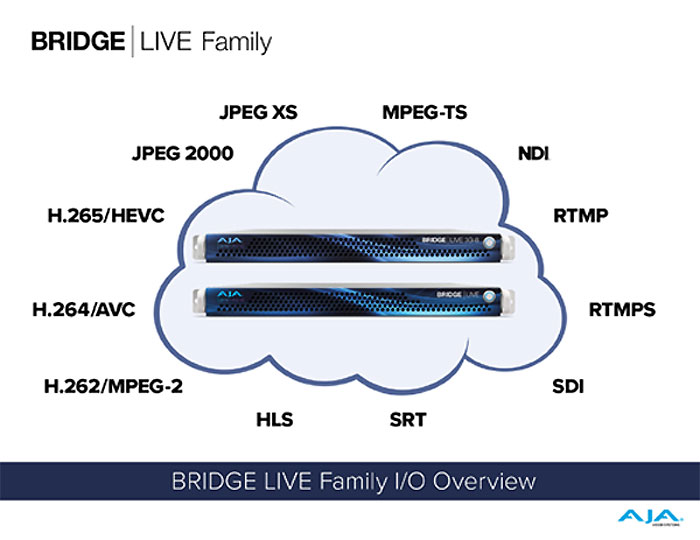

BRIDGE LIVE FAMILY I/O Overview

The BRIDGE LIVE family of products, BRIDGE LIVE and BRIDGE LIVE 3G-8, support the most widely used IP video compression schemes and transport protocols to solve your workflow needs. The BRIDGE LIVE family supports conversion to/from SDI to numerous IP video solutions and well as pure IP conversion and distribution workflows.

NDI Encode/Decode/Transcode

BRIDGE LIVE includes support for NDI (Network Device Interface), the high quality, real time, low latency IP video standard developed by NewTek. BRIDGE LIVE can support up to 8x simultaneous 60p HD NDI encodes/decodes or 1x 30p UltraHD NDI encode/decode to/from SDI (BRIDGE LIVE model dependent). BRIDGE LIVE’s NDI functionality offers:

SDI to NDI (encode)
NDI to SDI (decode)
IP Video Streams to NDI (transcode)
NDI to IP Video Streams (transcode)
Multiple Discovery Servers

Used in conjunction with BRIDGE LIVE’s broad codec and protocol support, collaboration between geographically separated (remote) NDI facilities can be realized.

BRIDGE LIVE provides broad NDI compatibility with 3rd party NDI software and hardware transmitters and receivers.

Synchronous Multi-Channel Transport

BRIDGE LIVE and BRIDGE LIVE 3G-8 support independent SDI source inputs and maintains their synchronous relationship while transporting the content to end-point destinations.

This functionality can take place between a pair of BRIDGE LIVE units for a synchronous end-to-end SDI workflow, often referred to as SDI backhaul, or site-to-site SDI workflows.

BRIDGE LIVE’s synchronous multi-channel capability is also supported for cloud contribution, whereby a BRIDGE LIVE system can send signals to a Comprimato Live Transcoder cloud instance, thereby ensuring multi-source synchronicity for delivery to various CDNs, platforms, and cloud services as IP video.

Furthermore, Synchronous Multi-Channel Transport can be scaled up from a single BRIDGE LIVE pair to additional BRIDGE LIVE pairs to enable workflows where multiple BRIDGE LIVE systems can receive SDI and send to multiple BRIDGE LIVE systems outputting SDI, all in synchronicity. HDR is also supported for end-to-end SDI workflows.

Metadata, HDR, Timecode and Closed Captioning Support

The BRIDGE LIVE 3G-8 fully support Closed Captioning as well as additional metadata, which is often a neglected feature set with other encode/decode solutions.

BRIDGE LIVE 3G-8 support:

MPEG-2 ancillary packet support, SMPTE ST 2038
SDR/HDR Transfer Characteristics, Colorimetry, Luminance via SDI
SCTE-35/SCTE-104 Ad insertion markers
CEA-608/CEA-708 Closed Captioning
Timecode
Embedding Closed Captioning/Subtitles into H.264 SEI messages
Metadata pass-through
Electronic Program Guide (EPG) on input
SEI (supplemental enhancement information) timecode insertion

Transport, Containers, and Protocols

The BRIDGE LIVE 3G-8 can be configured to meet your requirements, whether it’s low latency or highest quality signal delivery. BRIDGE LIVE gives you the tools to move content and deliver according to your workflow needs.

BRIDGE LIVE supported Protocols

HLS
RTP
RTMP
RTMPS (output)
SRT
UDP
MPTS (input)
JPEG 2000 (VSF-TR01)
JPEG XS (VSF-TR07)

BRIDGE LIVE supported Transport Formats

MPEG-TS
NDI
AVC-TS
Fragmented MP4

BRIDGE LIVE supported Audio Formats

AAC-LC (ADTS, LATM)
AAC-HE v1& v2 (ADTS, LATM)
AC3
E-AC3 (input)
Dolby-E Passthrough
MPEG-2 Audio
NDI (uncompressed float)
Uncompressed PCM (multi-channel)

JPEG 2000 and JPEG XS I/O are available with an optional license.

Supported Encodes/Decodes

The BRIDGE LIVE 3G-8 support the following configurations for encoding and decoding between SDI and streaming formats as standard. Multiple streams, formats and destinations can be derived from a single SDI input.

NDI:

8-bit or 10-bit
4:2:2
BRIDGE LIVE 3G-8: Up to 8x simultaneous 60p HD encode/decode to/from SDI
NDI Inputs can be received, transcoded, and output as IP Video Streams
IP Video Inputs can be received, transcoded, and output as NDI Streams, up to UltraHD resolution.

H.265 (HEVC):

8-bit or 10-bit
4:2:0
BRIDGE LIVE 3G-8: Up to 8x simultaneous 60p HD encode/decode to/from SDI
SRT, RTMP and MPEG-TS protocol support

H.264 (AVC):

8-bit or 10-bit
4:2:0 or 4:2:2
BRIDGE LIVE 3G-8: Up to 8x simultaneous 60p HD encode/decode to/from SDI
SRT, RTMP and MPEG-TS protocol support

H.262 (MPEG-2):

8-bit
4:2:0
BRIDGE LIVE 3G-8: Up to 8x simultaneous 30p/60i HD encode/decode or up to 4x simultaneous 60p HD encode/decode to/from SDI with an HQ option
SRT, RTMP and MPEG-TS protocol support

JPEG XS Encode/Decode License

BRIDGE LIVE capabilities can be optionally expanded to include visually lossless JPEG XS encoding and decoding.

JPEG XS (TR-07)

10-bit
4:2:2
BRIDGE LIVE 3G-8: Up to 8x simultaneous 60p HD encode/decode (up to 220Mbs)
IP to IP transcodes with JPEG XS are supported and can be scaled up depending on CPU & GPU resource availability
MPEG-TS protocol support

Hardware

The AJA BRIDGE LIVE 3G-8 supports up to 8x 3G-SDI simultaneously for multi-channel HD in 1RU. Dual 10 GigE ports provide network connectivity, and dual power supplies.

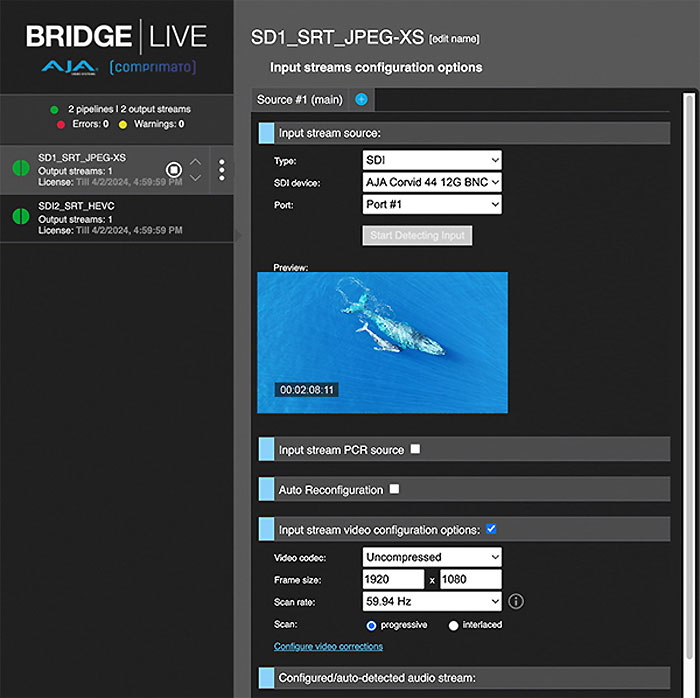

Administration, monitoring, and access to both models of BRIDGE LIVE are supported via either a network browser or local monitor via the device’s built-in DisplayPort. Indirect agnostic monitoring and automation are supported via both REST API and SNMP.

To view more AJA Products

View more Routing & Distribution Products

Related Products in biz:

Features

BRIDGE LIVE 3G-8: 3G-SDI I/O supports Multi-Channel HD (up to 8x channels).
BRIDGE LIVE 3G-8 supports multiple frame rate families at the same time
Bidirectional Encode/Decode/Transcode; NDI, H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2), JPEG 2000* (TR-01), and JPEG XS (TR-07)
Synchronous Multi-Channel / Multi-System Transport for SDI backhaul or Cloud Delivery
Protocols; SRT, UDP, HLS, RTP, RTMP/S, MPTS (input)
Transports; MPEG-TS, NDI, AVC-TS, Fragmented MP4
NDI Multiple Discovery Server and NDI Groups support
Multi bit rate/format distribution, ABR Ladder Profiles for OTT hand-off
Selectable profiles for 12-bit, 10-bit and 8-bit, 4:2:2 and 4:2:0 depending on the codec
Unmatched metadata capabilities including MPEG-2 ANC, SMPTE 2038, Ad insertion markers (SCTE-35/SCTE-104), CC/Subtitles (EIA-608/708, Line 21, H.264 SEI)
Hitless Redundancy via ST 2022-7 and SRT 1.5.3
HDR/SDR from SDI source to SDI destination in BRIDGE LIVE end-to-end configurations
Remote WebUI or local GUI for easy administration, control, and operation
Monitoring, Control, and Automation supported via REST API or SNMP
Turnkey 1RU rackmountable, enterprise class form factor
Dual 10 GigE interface for control and transport
Dual power supplies for critical application redundancy
Three-year warranty

Specifications

Technical Specifications
BRIDGE LIVE 3G-8 SDI Video Formats	(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1080i 50, 59.94, 60 (HD) 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 3G-SDI, SMPTE ST 424, 10-bit 1.5G-SDI, SMPTE ST 292M, 10-bit 270 Mbit/s SDI, SMPTE ST 259M-C, 10-bit
Video Color Component Sampling	SDI YCbCr, 4:2:2, 10-bit Transport Streams YCbCr, 4:2:2, 10-bit/8-bit YCbCr, 4:2:0, 10-bit/8-bit NDI P216, 4:2:2, 16-bit UYVY, 4:2:2, 8-bit
Video Codecs	H.264 (AVC, MPEG-4) H.265 (HEVC) JPEG 2000 (VSF TR-01) MPEG-2 NDI JPEG XS (VSF TR-07)
Audio Streams/Codecs	AAC-LC (ADTS, LATM) AAC-HE (ADTS, LATM) AAC-HE v1 & v2 (ADTS, LATM) AC3 E-AC3 (input) Dolby E pass-through MPEG-2 Audio NDI (uncompressed float) Uncompressed PCM multi-channel (SMPTE ST 302M-2007)
Metadata	MPEG-2 ancillary packet support (SMPTE ST 2038) HDR over SDI end-to-end via VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance Closed Captioning (EIA-608/708) Line 21 Captions Metadata pass-through SCTE-35, SCTE-104 Subtitles embedded within H.264 SEI messages Timecode embedded within HEVC and H.264 SEI messages Electronic program guide (EPG) on input
Containers and Protocols	HLS (input) AVC TS segments Fragmented MP4 HLS (output) AVC TS segments MPEG-TS MPTS (input) RTMP RTMPS (output) RTP, UDP SRT (including encryption) VSF TR-01 VSF TR-07
Video Processing	Auto Color Component Sampling based on I/O settings Cropping / Padding Color adjustments Deinterlacing Frame rate 50% down-conversion (60p->30p, 59.94->29.97, 50p->25p) Frame rate up-conversion (50i->50p) Logo insertion Resizing
Audio Processing	Channel Remapping Gain Sample Rate conversion Up/Down-mixing (e.g. 5.1 to stereo and vice versa)
Synchronization	Input PCR Global configuration (in separate transport stream) Local configuration (in each transport stream) Output PTS Pass-through Add offset to input PTS NTP Encoder Synchronous Multi-Channel Transport PCR Decoder Synchronous Multi-Channel Transport
Audio Input Digital	16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Audio Output Digital	16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Configuration and Monitoring	Local “Kiosk” interface (keyboard, mouse, and monitor) Remote access via Browser REST API SNMP
BRIDGE LIVE 3G-8 Form Factor	1RU turnkey system 8x Din 1.0/2.3 (3G-SDI compatible) 2x 10 GigE RJ-45 Local interface via Display Port and USB OS custom image Update and license via download
Size (w x d x h)	17.2” x 16.9″ x 1.7″ (436.88 x 429.26 x 43.18 mm)
Weight	28 lb. (12.7kg) in box 18 lb. (8.2kg) server only
Power	100-240 VAC 50/60 Hz (Dual, redundant power supplies) 190W typical, 245W Maximum
Environment	Safe Operating Temperature: 5 to 35 C (41 to 95 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 8-90% noncondensing Nonoperating Relative Humidity: 5-95% noncondensing
