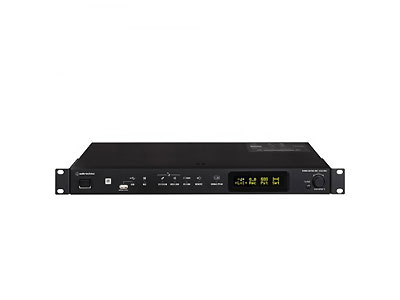

Audio-Technica ATUC-IRCU Hybrid Control Unit

Overall System:

• Operating Frequencies: Infrared
• Frequency Response: +1.0, -2.0dB, 20Hz – 20kHz (+4dBu output at 1kHz)
• Data Length / Sampling Frequency: 24bit/48kHz
• Dynamic Range: 110dB, A-Weighted
• Signal-to-Noise Ratio: 90dB, A-Weighted
• Total Harmonic Distortion: Less than 0.03%, 1 kHz unity
• Operating Temperature Range: 0 – 40°C
• Operating Humidity: 25 – 85%
• Simultaneous Use: 300 (200x ATUC-IRDU + 100x ATUC-50CU/ATUC-50IU)
• Headroom: 20dB
• Latency: MIC Input to Output: 1 ms
  DU to CU: 1.2 ms
• Number of Channels: Voice: 10 channels
  Monitor: 4 channels

Discussion Unit:

• Equivalent Input Noise: Mic/Line: Less than -126dBu, Rs = 150ohm

Control Unit:

• Connections: Inputs: MIC/LINE×2, AUX×1 (ST), INTERPRETATION RETURN×2
• Outputs: BAL.×4, UNBAL.×1
• Link/Chain: DU A/B terminals, CU A/B terminals (DU C/D terminals)
• IR Antenna: IR antenna I/O terminals × 4 (Load Impedance 75ohm) N
• Residual Noise: Less than -86dBu, A-Weighted
• Crosstalk at 1 kHz: Less than -80 dB
• Power Supply: AC 100V – 240V 50/60Hz
• Phantom Power: DC+48V
• Power Consumption: 26W to 175W (maximum)
• Dimensions: 434mm × 326mm × 44mm
• Weight: 4.76kg
• OLED Display: 20 × 2Character type, Color: Yellow
• Operating life: 100,000 hours
• Accessories: Power cord, Euroblock connectors (9 pieces)

Infrared:

• Bandwidth: 1MHz – 10MHz
• Modulation Method: FM

Recording:

• Compressed bit-rate: MP3 – 64kbps/128kbps/192kbps/256kbps/320kbps
• Media: Via USB Storage Device (Supported file systems: FAT16/FAT32):
  WAV – 1/2/3/4 track (BWF standard)
  MP3 – 1/2 track (Original format)
