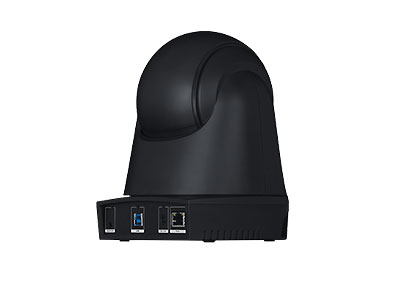

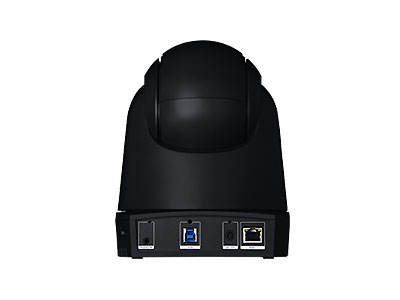

AVer DL30 Distance Learning Tracking Camera

Camera:

• Image sensor: 1/2.8′ 1080p Low Lux CMOS
• Effective Picture Elements: 2 Megapixels
• Output Resolution: 1080p/60 (IP Streaming & USB)
• Minimum Illumination: 0.5 Lux (IRE50, F1.6, 30fps)
• S/N Ratio: > 50 dB
• Gain: Auto, Manual
• TV Line: 800 (Center), 600 (Corner)
• Shutter Speed: 1/4 to 1/10,000 sec (60 Hz), 1/3 to 1/10,000 sec (50 Hz)
• Exposure Control: Auto, Manual, WDR
• WDR: Yes
• White Balance: Auto, Manual
• Optical Zoom: 12X
• Digital Zoom: 2X
• Focal length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance: 0.3 m (Wide), 1.5 m (Tele)
• Preset Positions: 10 (IR), 256 (IP & USB)
• Camera Control Interface: IP, USB
• Camera Control: Protocol: VISCA (IP), CGI (IP), USB
• Image Processing: Noise Reduction (2D/3D), Flip, Mirror, WDR
• Power Frequency: 50Hz / 60Hz

Viewing Angles:

• DFOV : 84.1° (Wide) to 7.8° (Tele)
• HFOV : 76.5° (Wide) to 6.8° (Tele)
• VFOV : 47.3° (Wide) to 3.8° (Tele)

Pan / Tilt Angles:

• Pan: ±170°
• Tilt: ±90°

Pan / Tilt Speed (Manual):

• Pan: 1° to 90°/sec
• Tilt: 7.85° to 45°/sec

Preset Speed:

• Pan: 120° / sec
• Tilt: 110.84° / sec

AI Auto Tracking Functions:

• Tracking Modes: Presenter Mode, Zone Mode, and Hybrid Mode

Privacy Protection Mechanisms:

• Protection Modes: Privacy Mode, Sleep Mode

Audio:

• Channels: 2ch (Stereo)
• Codecs: AAC, PCM
• Sample Rate: AAC (48, 32, 16, 8 KHz), PCM (48 KHz)

Interface:

• Video Outputs: IP, USB
• Audio Outputs: IP, USB
• Audio Inputs: Mic in, Line in

General:

• Power Requirement: AC 110–220V to DC 12V/2A
• Power Consumption: 12W
• PoE: PoE+
• Dimensions (W x H x D): 158.8 x 200.0 x 162.2 mm
• Net Weight: 1.62 (±0.1) kg
• Application: Indoor
• Tally Lamp: N/A
  Security: Kensington Slot
• Remote Control: Infrared

Operating Condition:

• Temperature: 0°C to 40°C
• Humidity: 20% to 80%

Storage Condition:

• Temperature: -20°C to 60°C
• Humidity: 20% to 95%

IP Streaming:

• Resolution: 1080p, 60fps
• Network Video Compress Formats: H.264, MJPEG (Web Page)
• Network Audio Compression Formats: AAC
• Sample Rates: 48, 32, 16, 8 KHz
• Maximum Frame Rate: 1080p, 60fps
• Bit-rate Control Modes: VBR, CBR
• Range of Bit-rate setting: 512 Kbps to 32 Mbps
• Network Interface: 10/100 Base-T
• Network Protocol: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
• NDI®|HX Capability: N/A

Multi-stream Capability

• 2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page), 1080p, 60fps (max.)
• 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p, 30fps (max.)

USB:

• Connector: USB 3.1 Gen 1 Type-B
• Video Formats: MJPEG, YUY2
• Maximum Video Resolution: 1080p
• USB Video Class (UVC): UVC1.1
• USB Audio Class (UAC): UAC1.0

Web UI:

• Live Video Preview: Yes
• Camera PTZ Control: Pan / Tilt / Zoom / Focus / Preset Control
• Camera / Image Adjustment: Exposure / White Balance / Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools:

• IP Search and Configuration Tool: Supports Windows® 7 or later
• PTZ Management: Supports Windows® 7 or later
• PTZ Control Panel: Supports iOS & iPadOS® 9 or later
• CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later
• PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later

Warranty:

• Camera: 3 Years
• Accessories: 1 Year

Optional Accessories:

• Wall Mount Kit (Brackets (x2), M4 x 8mm Screws (x2), 1/4′-20L 7.5mm, Screw (x1), Wall Mount Kit Installation Guide), Ceiling Mount Kit (Brackets (x2), M3 x 6mm Screws (x3), 1/4′-20L 7.5mm, Screws (x3), Ceiling Mount Kit Installation Guide)

• Camera
• Remote Control
• Power Adapter
• Power Cord
• USB Cable
• Cable Ties (x4)
• Cable Fixing Plate (x1)
• M2 x 4mm Screws (x2)
• 1/4′-20L 7.5mm Screw (x1)
• Quick Start Guide
