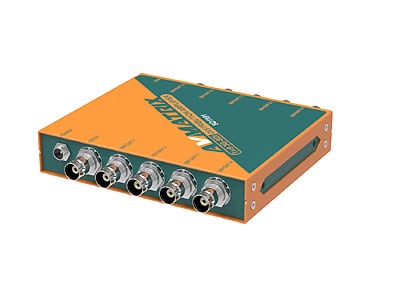

AVMATRIX SD1191 Reclocking Distribution Amplifier

Connections

• SDI Video Input: 1×SD/HD/3G-SDI(75Ω BNC)
• SDI Video Output: 9×SD/HD/3G-SDI/ASI (75Ω BNC)
• Updates: USB

Standards

• SDI Format Support
  (2K) 2048×1080p 30/29.97/25/24/23.98
  (2K) 2048×1080PsF 30/29.97/25/24/23.98
  (HD) 1920×1080p 60/59.94/50/30/29.97/25/24/23.98
  (HD) 1920×1080PsF 30/29.97/25/24/23.98
  (HD) 1920×1080i 60/59.94/50
  (HD) 1280×720p 60/59.94/50
  (HD) 1280×720p 30/29.97/25/24/23.98
  (SD) 625i 50/525i 59.94
• SDI Compliance
  MPTE 372M, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, DVB-ASI
• SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
• SDI Color Space and Precision
  RGB 4:4:4 10bit/12bit
  YUV 4:2:2 10bit/12bit
  YUV 4:4:4 10bit/12bit
  XYZ 4:4:4 12bit

Power

• Power Supply: Threaded locking DC connector
• Voltage Range: DC 6-24V
• Power Consumption: 5W (Max)

Physical Specifications

• Dimension: 125.5×104×24.5mm
• Gross Weight: 1300g
• Net Weight: 600g

Environmental Specifications

• Operating Temperature: -20℃~60℃
• Storage Temperature: -30℃~70℃
• Relative Humidity: 0%~90% non-condensing
• Warranty: 3 Year Limited Manufacturer’s Warranty.

• SD1191 (1×9 3G-SDI Reclocking Distribution Amplifier)
• DC 12V Universal Power Supply with International Socket Adapters
• Mounting Brackets ×2
