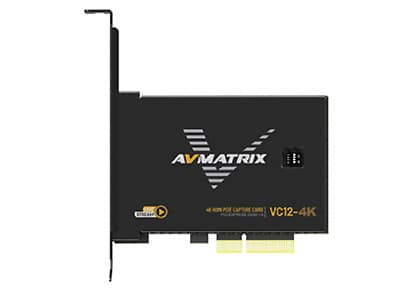

AVMATRIX VC12-4K HDMI PCIE Capture Card

CONNECTIONS

• Host Interface: PCIE2.0×4, 2.5GB/s transfer bandwidth
• Video Interfaces: 1xHDMI2.0 input, 1xHDMI2.0 Loopout

STANDARDS

• HDMI Input Format:Up to 4K60hz, 1440144hz, 1080p240hz
• Capture Format
  4096×2160, 3840×2160, 3440×1440, 2560×2048,
  2560×1920, 2560×1440, 2560×1080, 1920×1200,
  1920×1080, 1600×1200, 1440×900, 1280×1024,
  1280×800, 1280×720, 1024×768, 800×600,
  720×576, 720×480 60fps
  4096×2160, 3840×2160, 2560×1440,
  1920×1080, 1280×720
  50fps
  4096×2160, 3840×2160, 2560×1440, 1920×1080,
  1280×720, 800×600, 720×576, 720×480
  30fps
  4096×2160, 3840×2160, 2560×1440,
  1920×1080, 1280×720
  25fps
  2560×1440, 1920×1080, 1280×720 144fbs
  2560×1440, 1920×1080, 1280×720 120fbs
  1920×1080, 1280×720 240fps
  1920×1080, 1280×720 59.94 fps
• Capture Color Space: YUY2, uncompressed
• Audio Capture: 1xHDMI embedded audio capture
• Audio Codec: 16 bit PCM, 48kHz, 1536kbps
• Other Features: Support 1080i hardware de-interfacing, 3D noise reduction algorithm

SUPPORTS

• Device Support: Support XBOX, PS4, SWITCH, Video Player, Tv box and Media Box, etc.
• OS Support: Windows 7 and above, Linux 18.04 and above
• Software Compatible: OBS, XSplit, VLC, VirtualDub, VMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2/ AVCaptureSession encoding/streaming software
• APIs Support: Windows(DirectShow, DirectSound/WASAPI), Linux(V4L2, ALSA)

OTHERS

• Power consumption: ≤2.0W
• Temperature: Operating temperature: 0°C-60°C, Storage
• Temperature: -20°C-70°C , Relative Humidity: 5%-90% non-condensing
• Dimension: 120.1 x 95.7 x 21.6mm
• Weight: Net weight 100g, Gross Weight: 145g
