BirdDog 4K SDI - 12G-SDI, 4Kp60 NDI Encoder/Decoder
USD 1,078.00 excl. Tax
BirdDog Flex 4K BackPack 4K Full NDI Encoder
USD 430.00 excl. Tax
BirdDog 4K QUAD NDI Encoder/Decoder
USD 2,058.00 excl. Tax
Product Highlights:
- 4K QUAD NDI Encoder/Decoder
- Encode & Decode up to 4Kp60
- 12G & HDMI 2.0 connections
- SFP+ for 10GbE & long range
- Cross Converter
- Free RESTful API
| Weight | 4 kg |
|---|---|
| Choose the Product Variant |
Micro Converter HDMI to SDI 12G ,Micro Converter HDMI to SDI 12G wPSU |
Description
Click to rate this post!
[Total: 2 Average: 5]

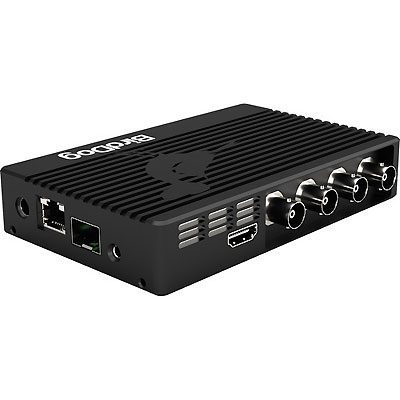

BirdDog 4K QUAD of 12G-SDI NDI Encoder/Decoder
Birddog 4K Family has been engineered from the ground up for real-world users. Built around BirdDog’s custom NDI silicon chip and housed in an aircraft-grade aluminum case, BirdDog 4K QUAD features include 12G SDI and HDMI 2.0 inputs and outputs, a built-in cross converter, an SFP+ port for 10GbE connectivity, active loopouts, an audio intercom system, an NDI tally system, PoE, and compatibility with BirdDog’s Comms Pro and Central Pro apps.
Encode & Decode up to 4Kp60
With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI has never been easier.
12G & HDMI 2.0 connections
All SDI connectors on the 4K line are 12G SDI, including all four SDI connectors on 4K Quad. All the HDMI connectors are 2.0 for maximum compatibility with your sources and destinations
SFP+ for 10GbE & long range
industry-standard SFP+ connection allows for short, medium, and long-range connections over fiber and supports Ethernet protocols from 1GbE to 10GbE.
NDI Tally that just works
A full Tally system is built right into the 4K family, and it requires zero configuration. Includes a built-in large Tally light for your on-air talent to see which camera is live easily, plus user-selectable Tally borders on loop out.
Cross Converter
All 4K products include a built-in cross converter, and the 12G SDI inputs can be looped out of the HDMI 2.0 port. Any of the HDMI 2.0 inputs can be looped out of the 12G SDI.
PTZ Control
The optional USB-to-Ethernet dongle lets you control any PTZ camera that supports NDI®, NDI|HX, or Visca over IP.
RESTful API DIY Automation
Download the free BirdDog RESTful API and program your automation for all BirdDog hardware endpoints, including cameras.
SS-R-24Nov23
Specifications
Click to rate this post!
[Total: 2 Average: 5]
| SUPPORTED VIDEO FORMAT | |
| UHD 3840×2160 | 23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 |
| HD 1920x1080p | 23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 |
| HD 1920x1080i | 50.00i, 59.94i |
| HD 1280x720p | 50.00p, 59.94p, 60.00p |
| VIDEO I/O CONNECTIVITY | |
| HDMI 2.0 Output | Yes (1x) |
| AUDIO INPUT | |
| SDI | 2Ch, 48kHz |
| 3.5mm AUDIO | Microphone |
| AUDIO OUTPUT | |
| HDMI | 2Ch, 48kHz |
| SDI | 2Ch, 48kHz |
| 3.5mm AUDIO | Stereo Headphone/line output |
| VIDEO PROCESSING | |
| Downconvert NDI output | 4K -> 1080p, 1080p -> 720p |
| VIDEO CODEC SUPPORT | |
| NDI (Full bandwidth i-frame compression) | Yes |
| DISPLAY | |
| Integrated 4-line OLED Status Display | Yes |
| Integrated Multiviewer | HDMI Out |
| TALLY | |
| Onboard Bi-color Tally indicator | Yes |
| Selectable Tally indicator on video loop outputs | Yes |
| NETWORK CONNECTIVITY | |
| Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet) | Yes |
| Open SFP+ Cage (10gb SFP+ Adapters sold separately) | Yes |
| Embedded Web configuration Panel | Yes |
| WEIGHTS & DIMENSIONS | |
| Size | 135x85x25mm |
| Weight | 260g |
| POWER | |
| DC Input | DC 12v / 16w |
| PoE (Power over Ethernet) | PoE+ 802.3at |
| EXTERNAL INTERFACE SUPPORT (Requires Optional Cables) | USB to RJ45 for additional network in device support, USB to RJ45 for VISCA over IP PTZ control, USB to Serial PTZ control (RS232), USB ISO recording |
Delivery Info
Click to rate this post!
[Total: 2 Average: 5]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
Reviews (1)
1 review for BirdDog 4K QUAD NDI Encoder/Decoder
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Related products
USD 430.00 excl. Tax
USD 430.00 excl. Tax
USD 199.00 excl. Tax
USD 229.00 excl. Tax
USD 750.00 excl. Tax
Charlotte –
BirdDog 4K QUAD NDI Encoder/Decoder: Empowering Video Professionals
The BirdDog 4K QUAD NDI Encoder/Decoder is a powerhouse engineered to cater to the diverse needs of video professionals. Crafted around BirdDog’s custom NDI® silicon chip and encased in a robust aircraft-grade aluminum build, this device encapsulates an array of features aimed at enhancing real-world usability.
Key Features:
Versatile Connectivity: Featuring 12G SDI and HDMI 2.0 inputs and outputs, it ensures seamless compatibility with various sources and destinations, enabling smooth data transfer.
Support for 4Kp60 Encoding & Decoding: With support for resolutions up to 4Kp60, including HD resolutions, it simplifies the encoding and decoding process, ensuring high-quality output.
Networking Capabilities: Equipped with an industry-standard SFP+ port, it facilitates short to long-range connections over fiber and supports Ethernet protocols from 1GbE to 10GbE, ensuring flexible networking options.
Intuitive NDI Tally System: The built-in Tally system requires zero configuration, featuring a large Tally light for easy identification of live cameras, enhancing production efficiency.
Cross Converter: Seamlessly convert signals with the integrated cross converter, allowing HDMI 2.0 inputs to be looped out through 12G SDI and vice versa, maximizing adaptability.
PTZ Control & Automation: Users can control compatible PTZ cameras supporting NDI®, NDI|HX, or Visca over IP through the optional USB to Ethernet dongle, providing enhanced operational control.
RESTful API for Customization: Download the BirdDog RESTful API for customized automation, enabling personalized configurations for all BirdDog hardware endpoints, including cameras.
User Experience:
Users have lauded the BirdDog 4K QUAD NDI Encoder/Decoder for its seamless operation and exceptional performance. The device’s user-friendly interface and simple setup have made it a go-to choice for both seasoned professionals and newcomers in the video production realm.
