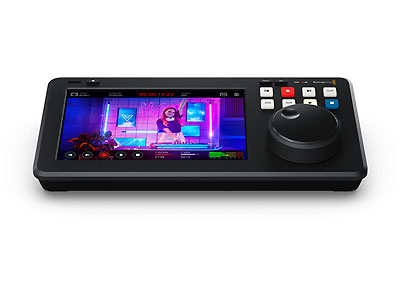

Blackmagic HyperDeck Shuttle 4K Pro Live Media Player and Master Recorder

Connections:

• SDI Video Inputs: 1
• SDI Loop Outputs: 1
• SDI Video Outputs: 2
• SDI Monitor Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• HDMI Monitor Outputs: 1
• Built in Speaker: Mono
• Audio Output: 1 x 6.35 mm headphone jack
• Screen: 7 inch LCD.
• Reference Input: 1 x BNC In, Tri-Sync/Black Burst and Timecode.
• Reference Output: 1 x BNC Out.
  Tri-Sync or Black Burst.
• SDI Audio Inputs: 64 channels embedded audio.
• SDI Audio Outputs: 64 channels embedded audio.
• HDMI Audio Inputs: 8 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Remote Control: 1 x RS-422 In.
• Recorder Configuration: Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
• Ethernet: 1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.
• External Recording: 1 x USB-C 3.1 Gen 1 (up to 5Gb/s) for external disk recording.
• Computer Interface: 1 x USB-C for software updates.

Standards:

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60
  1080i50, 1080i59.94, 1080i60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K DCI Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 424M.
• SDI Metadata Support: Television standard 24‑bit, 48 kHz sample rate.
• Supported HDMI Formats: 525i59.94 NTSC, 625i50 PAL,
  720p50, 720p59.94, 720p60,
  1080i50, 1080i59.94, 1080i60,
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60,
  4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• Audio Sampling: Television standard 24‑bit, 48 kHz sample rate.
• Video Sampling: 4:2:2 YUV
• Color Precision: REC 601, REC 709, REC 2020.
  33 point 3D LUTS can be applied to SDI monitor out.
• HDR Support: Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
• Multi Rate Support: Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media:

• Cache Recording: Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
• Media: 1 x SD card slot
  1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI.
• Media Type: UHS-I and UHS-II SD cards.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs:

• Video Codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60.
  Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs.
  DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps.
  DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps.
  H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps.
  H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
• Audio Codecs: AAC 2 Channels.
  PCM 2, 4, 8, 16, 32 or 64 Channels.

Scopes:

• Scopes: Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.
• Viewing Modes: Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.

Control:

• Built in Control Panel: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. 11 buttons for transport and device control with search dial
• External Control: 11 buttons for transport and device control with search dial.

Teleprompter:

• Multi Rate Support: Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
• Supported File Formats: Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)

Software:

• Software Included: Blackmagic OS
  Blackmagic HyperDeck Setup
• Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
• Operating Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11.

Displays:

• Built in LCD for video, audio and timecode monitoring and menu settings.

Power Requirements:

• Power Supply: 1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
• Power Usage: 60 W max.

Environmental Specifications:

• Operating Temperature: 0° to 40° C (32°to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non‑condensing
• Warranty: 1 Year Limited Manufacturer’s Warranty.

• HyperDeck Shuttle 4K Pro
• 12V universal power supply with international socket adapters
