Blackmagic Video Assist 4K 7-inch All in One Professional Monitor and Recorder

SKU: HYPERD/AVIDAS74K Categories: ,

This model has been discontinued

Description
Click to rate this post!
[Total: 4 Average: 5]

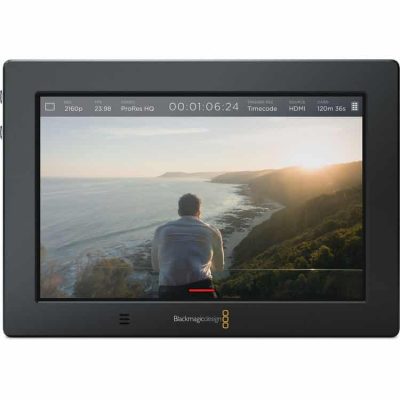

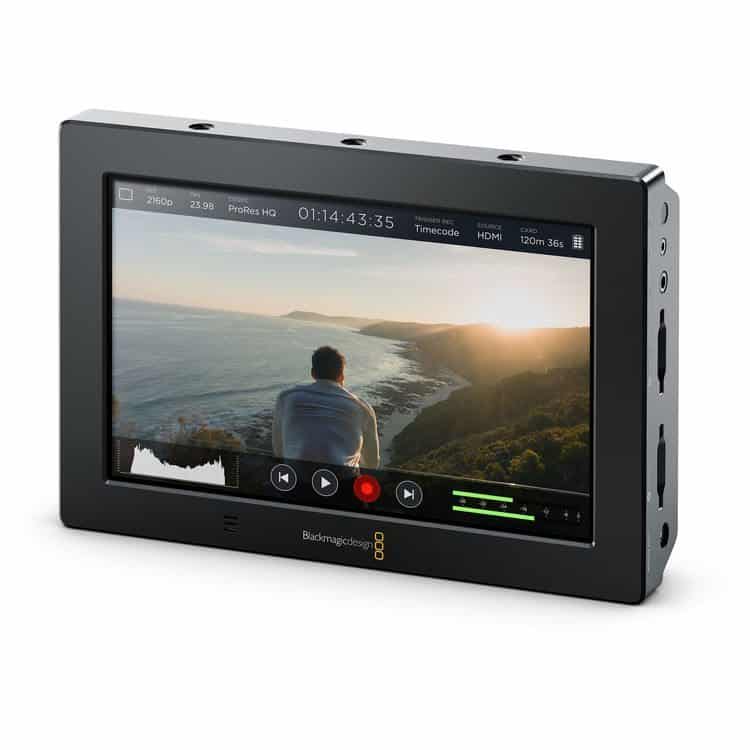

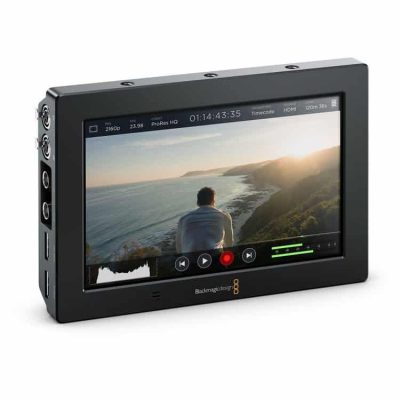

Blackmagic Video Assist 4K Monitor and Recorder

Blackmagic Video Assist 4K has gained its market share in 4K Recording. Video Assist 4K is one of the most recently released recording solutions by Blackmagic. This recorder is the ultimate, affordable 4K recording solution for videographers.

Compact, Portable Video Recording Solution

Blackmagic products have always continued to offer video and audio production solutions for professionals over time. The latest addition to the list of Blackmagic products is the Video Assist 4K, which integrates the latest technology in video recording in a compact and portable camera. The Blackmagic Video Assist 4K has redefined video recording with its capability of recording in some different formats as well as including its professional production monitor. It comes packaged as the best possible accessory that will help you get extra functionality from your digital camera.

Main Features for Video Assist 4K

Affordable consumer cameras normally operate on small screens and support poor file formats; old camera versions commonly used custom file or tape formats.

The descriptive features of these two camera models made it hard for them to be used professionally. However, with Blackmagic Video Assist 4K, this problem is solved as it is compatible with all types of cameras, including DSLRs and cameras based on old tapes.It is an inexpensive and applicable solution that comes with two high-speed UHS-II recorders that can work with some popular and readily available SD card brands and are compatible with readily available SD card readers.

Broadcast quality files can be saved in DNxHD or ProRes formats and come with a 10-bit 4:2:2 video. Users can trigger the start and stop of recording using HDMI, SDI or LANC. With the Blackmagic Video Assist 4K, you get uninterrupted recording since recording continues automatically to the next card the moment the first is full.

The 7″ high-resolution LCD monitor with a touchscreen that comes with a wide viewing angle of 135 makes this model easy to use. With simple taps and swipes, users can change settings of the monitor, display information about the camera and evaluate video and audio levels of recordings.

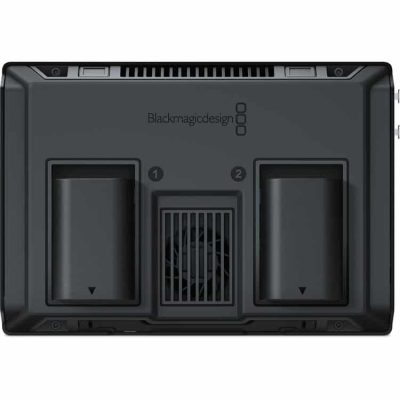

Customers can also have their eyes on the shot as they view audio meters, histogram and timecode as well as current input frame rates.The camera can be powered with a 12V DC input and has two LP-E6 battery slots. Discharging of batteries happens serially and hence the second battery takes full charge when the first one gets drained.

Other Great Features

The Blackmagic Video Assist 4K monitor comes with an all-in-one design that makes it easy to mount cameras, hold the monitor with one hand or setting it up on a table with a kickstand. The monitor is great for outdoor and indoor use and is a durable solution.

High-End Features High Screen Resolution

A good screen with a high resolution is important for capturing cinematic-quality shots. The Video Assist 4K comes with a large screen with a high resolution that makes it easier to focus and frame when shooting. If you own a camera that lacks a recording facility, such as the Blackmagic 4K Micro Studio Camera, then the Video Assist 4K is a perfect accessory to pair with such types of devices. It will make it possible for you to shoot and record professional videos as well as audio. The best part about Blackmagic Video Assist 4K is that it works equally well with different camera brands that support pairing through SDI/HDMI ins and outs.

Advanced Shutter Technology

The Blackmagic Video Assist 4K comes with advanced shutter technology that ensures every moment is captured. It also comes with other capabilities, such as allowing for on-set recording, monitoring, and playback. The recorder comes equipped with a super 35 Sensor that is firmly mounted to ensure for rigidity. During use, you will find that the camera is flexible enough to be used in both studio and field production.

Blackmagic Video Assist 4K Advanced Functionalities

Remote Control & Audio Recorder

The Blackmagic Video Assist 4K comes with a number of advanced technical components that enhance its functionality and equally make it an easy-to-use recorder. You can control the Video Assist 4K remotely using LANC connection which it is supplied with. It also comes with a 28-dBi electrical noise floor, which ensures that audio recordings are of the highest possible quality.

Dual Recorders

You can use the Blackmagic Video Assist 4K for recording long or live events non-stop. The recorder integrates dual recorders, which ensure there is enough backup just in case one fails. You can also use affordable SD card media with the recorder, which allows for high-speed, dual UHS-II SDHC recording.

Mini XLR Inputs

You will find the Blackmagic Video Assist 4K to be a good investment, especially after learning that it comes with two Mini XLR inputs. This is particularly true if you shoot your videos with a standard DSLR, which outputs poor audio quality. With Video Assist 4K, you can pip the picture from your DSLR, bypass the audio from the DSLR, and input it from your Video Assist 4K recorder. The process is rather easy and will get you feeling like a professional videographer or producer.

Affordable Solution

The Blackmagic 4K camcorder models have become synonymous mainly because of their one attribute; affordability. The Blackmagic Video Assist 4K, which has just been released, continues the trend by offering high-end videography solutions at a very competitive price.

Multiple Formats

Videographers will be happy to learn that they can use the Video Assist 4K to record some different formats. Add this to the fact that the recorder is compatible with some different digital camera models, and you have the perfect accessory for recording your videos. Visit us today at any of our expandore stores and learn from our experts how you can get the most from your Blackmagic Video Assist 4K and buy one to move your videography experience a level up.

Specifications
Click to rate this post!
[Total: 4 Average: 5]

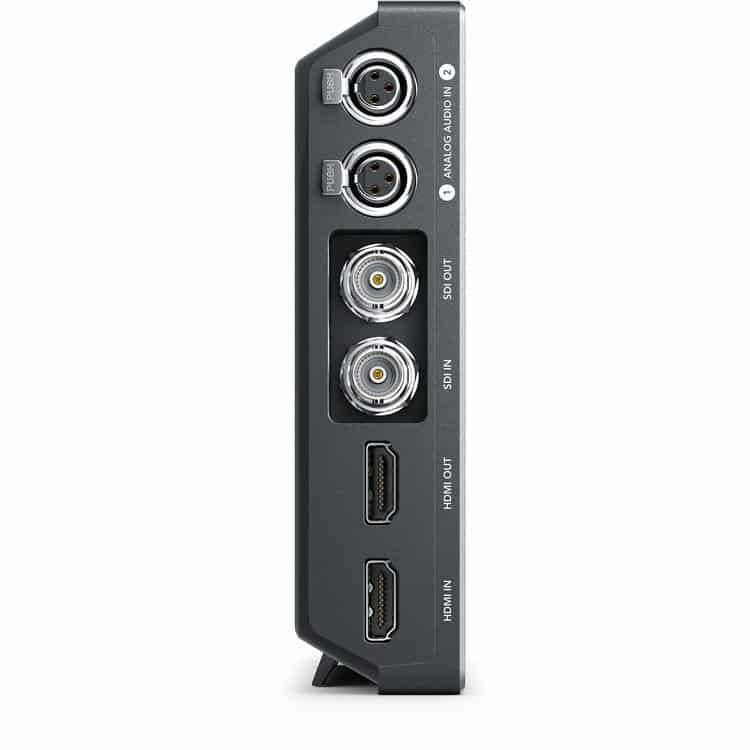

Connections
SDI Video Inputs
1
SDI Video Outputs
1
SDI Rates
270Mb, 1.5G, 3G, 6G
HDMI Video Inputs
1
HDMI Video Outputs
1
Analog Audio Inputs
2 x balanced mini XLR with phantom power
Analog Audio Outputs
1 x 3.5 mm headphone jack
Built in Speaker
Mono
Screen Dimensions
7 inch 1920 x 1200
SDI Audio Inputs
2 channels embedded via 6G-SDI
SDI Audio Outputs
2 channels embedded via 6G-SDI
HDMI Audio Inputs
2 channels embedded via HDMI 2.0a
HDMI Audio Outputs
2 channels embedded via HDMI 2.0a
Remote Control
1 x 2.5mm LANC for Record Start and Stop

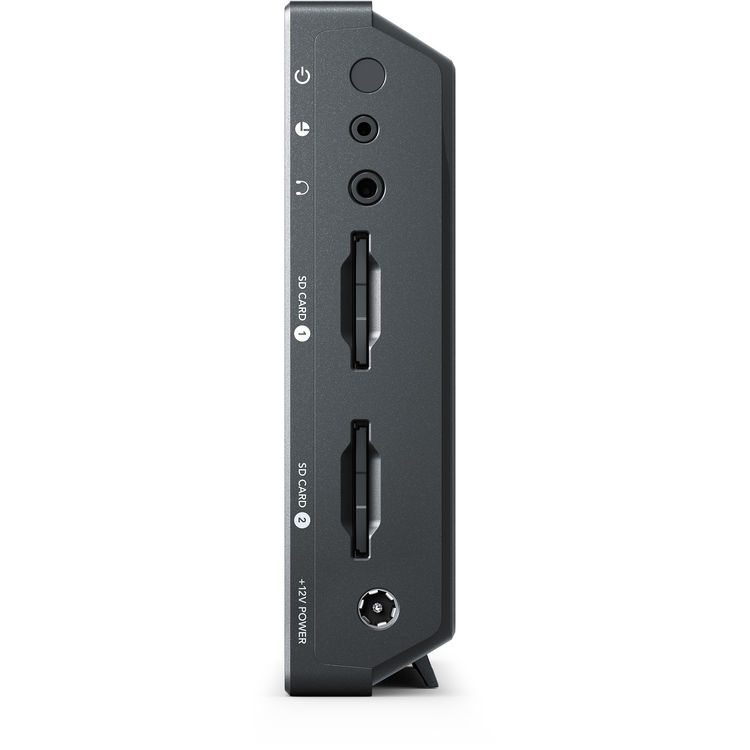

SD Interface
Dual UHS-II SD slots
Storage Type
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Recorder Configuration
Via the device’s USB port or the device’s user interface
Computer Interface
1 x Mini-B USB 2.0 connector for initial setup, software updates and Video Assist Utility software control
SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084
SDI Metadata Support
HD RP188
Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
REC 601, REC 709
Multiple Rate support
SDI and HDMI switches between 270 Mb/s SD , 1.5 Gb/s HD , and 3.0 Gb/s 60P HD plus 6.0 Gb/s 30p Ultra HD.
HDMI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
HDMI Color Precision
10-bit
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media
2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording.
Media Type
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards
Supported Codecs
Supported Codecs
ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF
Environmental Specifications
Operating Temperature
0? to 40? C (32? to 104? F)
Storage Temperature
-21? to 45? C (-6? to 113? F)
Relative Humidity
0% to 90% non-condensing
Warranty
Warranty
12 Month Limited Manufacturer?s Warranty. Excluding: batteries and cables which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase.
In The Box
Click to rate this post!
[Total: 4 Average: 5]
  • Blackmagic Video Assist 4K
  • Universal power supply with international adapters
  • SD card with software and manual
