Datavideo BC-15CN: Compact 4K Sensor Camera with NDI Connectivity
The small box design of the BC-15CN makes it incredibly flexible for mounting anywhere. Despite its compact size, this device does not compromise on quality. Datavideo BC-15CN is equipped with a 1/2.3” 4K CMOS sensor, it captures high-quality images, showcasing incredible details of the subject. Additionally, it supports NDI connection, enhancing its versatility for seamless video streaming and integration into various network-based workflows.
Interchangeable CS Mount Lenses
Users can install a CS-Mount camera lens to the BC-15CN or a C-Mount camera lens with the bundled 5mm CS-C camera lens adapter ring. Users can have a wide range of visual expressions by using different lenses for the BC-15CN.
* The lens is NOT included with the BC-15CN package.
1/2.3” CMOS Sensor with 4K 50/60p Output
Equipped with a 1/2.3” CMOS sensor, the BC-15CN delivers stunning 4K 50/60p output, ideal for eSports and versatile in various settings. The specialized eSports lens captures dynamic scenes with clarity, while the standard lens adapts to a wide range of applications.
Elevate Your Content with Seamless 4K Streaming
During video production, you can stream your program to different platforms such as YouTube and Facebook. If using Datavideo dvCloud, you can even stream your program to 25 different platforms at the same time while backing up your program on the cloud server.
Low-Latency SRT Streaming Engine Allowing Online Switching to dvCloud with Nearly Zero Latency
Many viewers may have encountered streaming issues, such as video stuttering or frame loss, often attributable to fluctuating bandwidth and network instability. dvCloud incorporates the SRT protocol, effectively reducing frame loss even when your network is unstable. If you are still encountering problems with RTMP streaming, dvCloud stands out as the optimal solution for a smoother and more enjoyable viewing experience.
Built-in Tally light
Built-in tally light makes it easier for the talent to know which camera is live during a multi-camera live production.

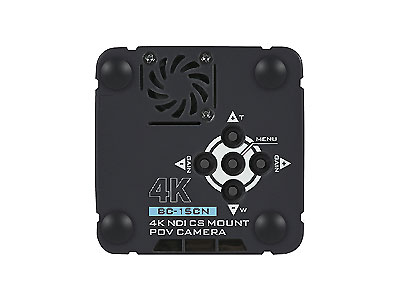

Physical Buttons Make Camera Setup Very Easy
When the camera is set up, there is no need to use an additional remote controller. The physical buttons on the rear panel of the BC-15C make it very easy to adjust settings.
Power over Ethernet
The Datavideo BC-15CN supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your BC-15CN.
Built-in DC-IRIS Function
Most off-the-shelf C/CS lenses are manual aperture lenses but some adopt the DC-IRIS technique which is thus also included in the BC-15C, making lens selection hassle-free.
1/4” Screw Hole for Mounting
Changing the camera angle is easy with the three 1/4” screw holes on the BC-15. It gives you the flexibility of mounting it anywhere.
CS-Mount Camera Lens Group
Customize the lens according to different application environments to achieve flawless video capture.
The table below shows the BC-15C/BC-15CN compatible camera lenses available on the market.
Datavideo BC View Assist App
BC View Assist App is the ultimate companion for BC-15 devices, simplifying control and enhancing streaming. Automatically detecting connected devices, enables effortless DVIP management.
It delivers precision with support for major video coding standards and innovative streaming protocols. Accessible directly from mobile, it redefines convenience in configuring remote settings, ensuring a seamless streaming experience.
Elevate Your Stream, Simplify Your Setup—Where Connectivity and Control Converge.
- Camera: The APP will automatically scan the network for connected DVIP devices. All detected BC-15 series devices will be listed for selection.
- Parameters: Easy access to the parameter settings, such as shutter, iris, white balance, and gain.
- Network: Users can access the BC-15 series directly from the mobile app to configure settings. The default DHCP setting makes the device plug and play. Static IP will be activated if the router does not support DHCP. Enter the IP address manually.
- Streaming: The BC-15 App streamlines the process of setting up your camera for streaming. With easy-to-use streaming settings, you can quickly connect your camera to your preferred streaming platform and share your content with others.
Configuring Live Video on the Mobile Phone
You can adjust the video settings on the mobile phone and preview the video as you make changes to the settings. You can also monitor major camera settings such as HDMI output resolution, camera name, and stream status.
To View more Datavideo Products
Related Products:
Specifications
Click to rate this post!
[Total: 1 Average: 5]
- Model Number: BC-15CN
- Video format/Resolution: 2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25 - Image Sensor: 1/2.3″ CMOS
- Effective Pixels (approx.): 12.3Mega Pixels
- S/N Ratio: 50 dB
- Min. Illumination: 0.5Lux (F1.0, AGC ON) *depend on Lens
- Electronic Shutter: 1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150), 1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec
- Zoom Ratio: 2x Digital Zoom
- Optical zoom depends on the Lens
- Gamma Control: Standard / Mode1 / Mode2 / Mode3
- Iris Control: DC IRIS supported
*depends on Lens - Digital Noise Reductions: 2D/3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, OnePush, Color Temp., R/B Gain, Lock
- AGC / Gain Control: Auto (AGC), Manual / Lock (Follow Exposure Mode)
- HDR/WDR: WDR
- Mirror / Flip Image: Yes
- Focus Mode: Full Manual
- Panning / Tilting Range: —-
- Panning / Tilting Speed: —-
- Preset: —-
- Focal Length: Depend on Lens
- Field of View (Horizontal, Wide): Depend on Lens
- Image Compensation: Auto
- Video Output: HDMI 2.0 x1
- Audio Input: 3.5mm Line in/Mic in (Stereo)
- Tally LED: Dual color (Red, Green)
- Lens Filter: IR cut built-in
- Control Protocol: DVIP
- Remote Control Interface: RJ-45: for IP control (DVIP)
- Video Compression Format: H.265, H.264
- Audio Compression Format: AAC
- Audio Bitrate: 128Kbps
- HD IP Interface: 10/100/1000M
- Streaming Protocols: RTMP(S), SRT, NDI
- First Stream Supported Resolution: 1920×1080
1280×720
1024×576
960×540
640×480
640×360 - Second Stream Supported Resolution: —-
- Video Bitrate: 1Mbps ~ 7Mbps
- Video Bitrate Mode: VBR, CBR
- Encoding Frame rate: 50Hz: 1-50fps
60Hz: 1-60fps - POE: IEEE 802.3af
- F/W Update: Ethernet
- IR Control: —-
- Camera Control Unit: RMC-300 series/BC View Assist APP
- Tripod Mount: 1/4-20 UNC
- Optional Accessories: —-
- Color: Black
- Dimension (LxWxH): 77mm (L) x 82mm (W) x 78mm (H)
- Weight: 204g (Lens not included)
- Operating Temperature Range: 0~40 °C
- Power: DC 12V 9W
PoE
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- 1 x BC-15CN Main Unit
- 1 x CS-C Lens adaptor ring
- 1 x DC 12V power adaptor
- 1 x Carry Case
