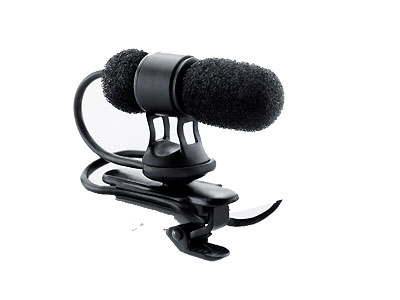

DPA 4080 Miniature Cardioid Microphone

• Directional pattern: Cardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz – 20 kHz
• Effective frequency range, ±2 dB, at 25 cm (9.8 in): 250 Hz – 17 kHz with typ. 4 dB soft boost at 4 – 6 kHz (-5 dB at 100 Hz)
• Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
• Distortion, THD < 1%: 126 dB SPL RMS, 129 dB SPL peak
• Dynamic range: Typ. 106 dB
• Max. SPL, THD 10%: 134 dB SPL peak
• Rated output impedance: 30 – 40 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
• Power supply (for full performance): For wireless systems: Min. 5 V – max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
• Connector: MicroDot
• Color: Black
• Weight: 15 g (0.5 oz) incl. Cable and MicroDot connector
• Microphone diameter: 5.7 mm (0.22 in)
• Microphone length: 30 mm (1.2 in)
• Cable length: 1.2 m (3.9 ft)
• Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
