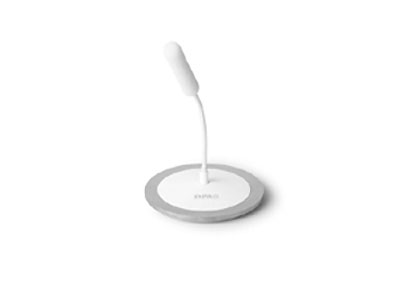

DPA 4098 Ceiling Microphone

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz–20 kHz
• Effective frequency range ±2 dB, at 20 cm (7.9 in): MicroDot: 80 Hz–15 kHz with 3 dB soft boost at 8–15 kHz
• XLR-3M: 100 Hz–15 kHz with 3 dB soft boost at 8–15 kHz and permanent 2nd order low-cut filter at 80 Hz
• Sensitivity, nominal, ±3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB (A) re. 20 µPa (max. 26 dB (A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
• Distortion, THD < 1%, Legacy: 122 dB SPL RMS, 125 dB SPL peak
• Distortion, THD < 1%, CORE: 130 dB SPL RMS, 133 dB SPL peak
• Dynamic range Legacy: Typ. 102 dB
• Dynamic range CORE: Typ. 110 dB
• Max. SPL, THD 10%: 135 dB SPL peak
• Rated output impedance: From MicroDot: 30–40 Ω. From XLR connector or DAD6001-BC XLR Adapter: 100 Ω
• Minimum load impedance: 2 kΩ
• Cable drive capability: MicroDot: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
• XLR-3M: Up to 100 m (328 ft)
• Output balance principle: Signal balanced with XLR connector or DAD6001-BC XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
• Power supply (for full performance): MicroDot: Min. 5 V to max. 10 V through DPA adapter for wireless systems or P48 (Phantom Power) with DAD6001-BC XLR adapter
• XLR-3M: P48 (Phantom Power)
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
• Connector: MicroDot or XLR-3M
• Color: Black or white
• Weight: Microdot: 16 cm (6 in): 12 g (0.4 oz)
• Microphone diameter: 5.7 mm (0.22 in)
• Microphone length: Microdot: 16 cm (6 in)
• Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
