DPA 4099 Instrument Microphone
USD 500.00 – USD 1,332.72 excl. Tax excl. Tax
| Weight | 3 kg |
|---|---|
| Choose Product Variant |
4099-DC-1-101-A ,4099-DC-1-201-B ,4099-DC-1-201-C ,4099-DC-1-101-CM ,4099-DC-2-201-D ,4099-DC-1-199-G ,4099-DC-1-101-MS ,4099-DC-1-101-P ,4099-DC-1-199-S ,4099-DC-2-199-T ,4099-DC-1-101-U ,4099-DC-1-199-V ,4099-DC-1 ,4099-DC-2 |
Description
Click to rate this post!
[Total: 1 Average: 5]
DPA 4099 Instrument Microphone
The 4099 is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. 4099 CORE brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the highest sound quality should choose CORE – every musician, live sound engineer, and anyone who takes pride in quality audio.
CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. We’ve minimized distortion. From pianissimo to forte, you will experience increased clarity and openness. Learn more about CORE by DPA.
From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive. This one-microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; make sure you have the right type of clip to mount it correctly. The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.

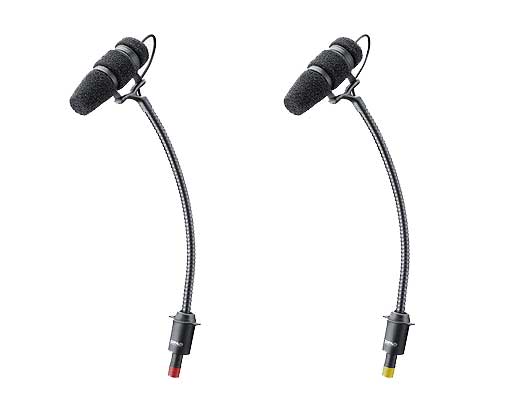

This microphone comes in two versions:
- 4099 CORE Mic, Loud SPL (red marking on gooseneck) – used to close-mike most types of instruments
- 4099 CORE Mic, Extreme SPL (yellow marking on gooseneck) – used to close-mike extremely loud instruments, such as drums and some brass
The 4099 CORE also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Detachable cables are available in heavy-duty or lightweight versions, depending on the application – both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.
Features
Click to rate this post!
[Total: 1 Average: 5]
- CORE by DPA technology inside
- Supercardioid instrument condenser microphone\
- Handles high SPLs
- Superior gain-before-feedback
- Flexible and easy mounting
- Gentle and easy to mount on the instrument
- Detachable cable and a versatile gooseneck extender
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| 4099 for Loud SPL | 4099 for Extreme SPL | |
| Directional pattern | Supercardioid | Supercardioid |
| Principle of operation | Pressure gradient | Pressure gradient |
| Cartridge type | Pre-polarized condenser | Pre-polarized condenser |
| Frequency response | 20 Hz – 20 kHz | 20 Hz – 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 80 Hz – 15 kHz with 2 dB soft boost at 10-12 kHz | 80 Hz – 15 kHz with 2 dB soft boost at 10-12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa | 2 mV/Pa; -54 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) | Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A)) |
| Distortion, THD < 1% | 128 dB SPL RMS, 131 dB SPL peak | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic range | Typ. 108 dB | Typ. 109 dB |
| Max. SPL, THD 10% | 142 dB SPL peak | 152 dB SPL peak |
| Rated output impedance | From MicroDot: 30 – 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω | From MicroDot: 30 – 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter | Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter | Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems: Min. 5 V – max. 10 V through DPA adapter
With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V |
For wireless systems: Min. 5 V – max. 10 V through DPA adapter
With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter |
| Connector | MicroDot | MicroDot |
| Color | Black | Black |
| Weight | Microphone: 17 g (0.60 oz) | Microphone: 17 g (0.60 oz) |
| Microphone diameter | 5.7 mm (0.22 in) | 5.7 mm (0.22 in) |
| Microphone length | 45 mm (1.8 in) | 45 mm (1.8 in) |
| Cable length | 1.8 m (5.9 ft) | 1.8 m (5.9 ft) |
| Cable diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
| Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter) | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% | Up to 90% |
| Gooseneck length | 140 mm (5.5 in) | |
| Sensitivity selection tolerance (at 1 kHz) | ±1 dB |
