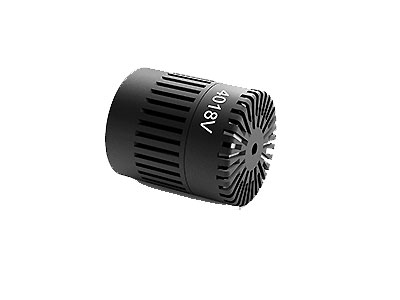

DPA MMC4018V Modular Microphone Capsule

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz–20 kHz
• Effective frequency range ±2 dB, at 12 cm (4.7 in): 40 Hz–16 kHz with 3 dB soft boost at 12 kHz
• Sensitivity, nominal, ±2 dB at 1 kHz: 5 mV/Pa; -46 dB re. 1 V/Pa
  2 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless
• Equivalent noise level, A-weighted: Typ. 19 dB (A) re. 20 µPa (max. 21 dB (A))
• Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
• Dynamic range: Typ. 120 dB
• Max. SPL, THD 10%: 160 dB SPL peak
• Rated output impedance: 100 Ω
• Minimum load impedance: 1 kΩ
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
• Power supply (for full performance): P48 (Phantom Power)
• Current consumption: Max 2.0 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
• Color: Matte black
• Weight: 309 g (10.9 oz)
• Microphone diameter: 52 mm (2.05 in)
• Capsule diameter: 19 mm (0.75 in)
• Microphone length: 205 mm (8.1 in)
• Maximum output voltage, RMS: 8 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
