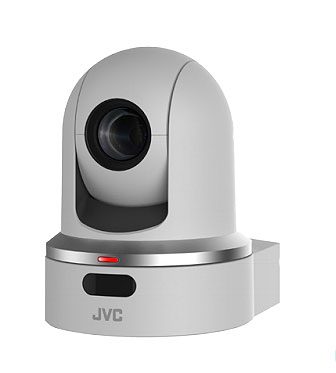

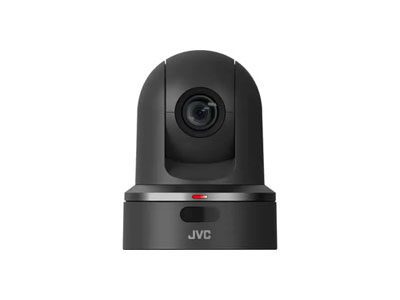

JVC KY-PZ100 Robotic PTZ Video Production Camera
The JVC KY-PZ100 is a robotic pan, tilt and zoom video production camera. It’s the first PTZ camera that features JVC’s unique IP communications engine providing network connection via Wi-Fi*, 4G-LTE*, or cabled LAN. It’s designed to be used as a stand alone remote camera or as part of a multi-camera system in both studio and field environments.
In addition to its 3G-SDI and HDMI outputs, it is also capable of reliably streaming 1080i/60, 1080p, 720p, and 360p video with 2-channel audio–all with minimal latency and forward error correction. Camera control is possible from a web browser, or with the dedicated RM-LP100 remote control panel, or from a variety of remote units using standard protocol.
The camera also includes on-board HD recording at up to 50Mbps to a micro SDHC/SDXC card with the ability to upload the recorded files to an external server.
The JVC KY-PZ100 features JVC’s highly accurate direct drive mechanism for smooth, quiet and precise positioning with up to 100 preset positions. Positioning can be performed at a range of speeds from very very slow to very fast while retaining pin-point accuracy (within 0.03°). A newly developed 1/2.8-inch image sensor and 30x optical zoom lens produce superb broadcast quality images even in low light environments.
The camera’s Wide Dynamic Range mode provides clear natural foreground images even under challenging highlight conditions. A high sensitivity mode enables shooting in color with illumination as low as 0.02 lux. (For comparison, a full moon on a clear night provides 0.05 to 0.3 lux illumination.)
Power the camera, control it, and stream to the world all from a single ethernet cable. Or go wireless. Just provide power to the camera, plug in a Wi-Fi adapter or LTE modem, and you’ll have the world’s most convenient, high quality robotic camera that can be placed virtually anywhere, stream full HD, and be controlled from anywhere in the world.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
|
GENERAL SPECIFICATIONS
|
|
|
Power
|
DC12V(AC adapter), DC42V to 57V(PoE+ power supply)
|
|
Power Consumption
|
1.2A (AC adapter) , 0.4A (PoE+ power supply)
|
|
Dimensions
|
148(W) x 199.5(H) x 172(D) mm
|
|
Weight
|
approx. 1.9 kg
|
|
Operation temperature
|
0? to 40??(32°F to 104°F)
|
|
Storage Temperature
|
-20? to 50? ( 14°F to 122°F)
|
|
Operating humidity
|
30% to 80%
|
|
Storage humidity
|
under 85%
|
|
Finish
|
[ KY-PZ100B] Black
[ KY-PZ100W] White |
|
Supported Remote controller
|
RM-LP100
|
|
CAMERA
|
|
|
Image Sensor
|
1/2.8″ CMOS?2.13M pixel
|
|
Lens
|
F1.6(wide) to F4.7(Tele) f=4.3mm to 129mm
30x Optical Zoom |
|
Digital Zoom
|
12x
|
|
Horizontal FOV
|
63.7°?2.3°
|
|
Shutter speed
|
1/60? 1/10000 (U model) , 1/50? 1/10000 (E model)
|
|
Gain
|
0?3?6?9?12?15?18?21, 24?30?36?42?48 dB
|
|
Minimum Illumination
|
High sensitive mode OFF :0.2 lx
High sensitive mode ON :0.02 lx |
|
White Balance
|
FAW?OnePush?3200K?5600K?MANUAL
|
|
S/N ratio
|
50dB
|
|
Pan/Tilt Angle
|
Pan : ?±175° Tilt : -30°/ 90°
|
|
Preset Position
|
100 points
|
|
INTERFACE
|
|
|
HD Video output
|
SDI output (3G support :BNC x1) , HDMI output x1
|
|
Audio input
|
φ3.5mm mini jack x1 ( Balanced Mono/Line / MIC with Power)
|
|
LAN terminal
|
RJ-45
|
|
RS-422
|
Serial Control ( RJ-45 )
|
|
RS-232C
|
Mini DIN 8pin (IN) , Mini DIN 8pin (OUT)
|
|
USB
|
HOST x1 (Network Connection)
|
|
NETWORK
|
|
|
Live streaming protocol
|
MPEG-2-TS/UDP ,MPEG2-TS/TCP , RTSP/RTP , Zixi, RTMP
|
|
VIDEO/AUDIO RECORDING
|
|
|
Recording media
|
Micro SDHC/SDXC memory card ( Class 6/10 )
|
|
Video recording
|
Video codec: MPEG-4 AVC/H.264
File format : Quick Time HD(H.264) NTSC setting: 1920×1080/59.94p,59.94i,29.97p(50Mbps) 1920×1080/59.94i,29297p(35Mbps) , 1280×720/59.94p(35Mbps) 1920×1080/59.94p(28Mbps) 1920×1080/59.94i,29.97p(18Mbps) , 1280×720/59.94p,29.97p(18Mbps) 1920×1080/59.94i(5Mbps) , 1280×720/29.97p(5Mbps) PAL setting: 1920×1080/50p,50i,25p(50Mbps) 1920×1080/50i,25p(35Mbps) , 1280×720/50p(35Mbps) 1920×1080/50p(28Mbps) 1920×1080/50i,25p(18Mbps) , 1280×720/50p,25p(18Mbps) 1920×1080/50i(5Mbps) , 1280×720/25p(5Mbps) |
|
Audio recording
|
LPCM 2ch, 48kHz/16-bit(MOV), μ-low 2ch(5Mbps)
|
|
SUPPLIED ACCESSORIES
|
|
|
Direct ceiling Mount bracket x1 , Screws , Wireless Remote Control x1 , AC Adapter x1, Instruction Manual
|
|
