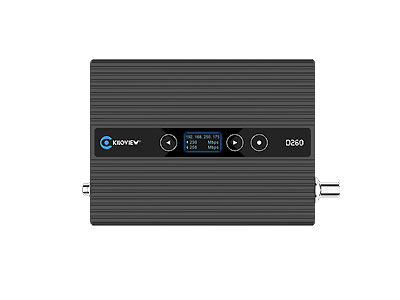

Kiloview D260 4-Channel HD H.265 HDMI & SDI Decoder
D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder, which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported, and a new LCD screen. Everything you need about decoding is packaged in this single unit at a low cost.
Upgrading Decoding Performance with H.265/H.264
D260 now supports decoding in H.265 format and up to 4-channel video streams in 1080p60 simultaneously. All 4 video outputs can be customized to a single display or PIP with adjustable figures.
More Protocols Supported
For all IP-based video transmission processes, D260 supports the latest NDI technology: NDI HX3, NDI HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP.
Extended Output Interfaces
As an upgraded version of DC230, D260 adds a couple more interfaces for advanced applications. The D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port, and 2 USB ports (one USB Type-A and one USB Type-C) to ensure scalability, It’s capable of output in three ways: Independently, combine multi-channel video flows or replicate of one single flow to stream simultaneously.
16 Preview + 4 Output
D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).
Powerful Audio Decoding
D260 is also super powerful in audio decoding. With a long list of audio formats supported, including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, it’s also capable of switching audio on/off, audio mix, and audio gain in real-time to output alternatively through its HDMI ports, SDI port, and 3.5mm line out port.
Custom Layouts
A custom multi-output display is also allowed for D260 (including custom grids, PIP, and simple drag and drop). All things about the display (bit rate and resolution) can be customized.
Display and Touch Button
D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check the transmission status in real time.
To view more NDI Converter Products
Specifications
Click to rate this post!
[Total: 2 Average: 5]
- Model: D260
- Video Output: 2*HDMI
1*3G-SDI - Audio Output: HDMI, SDI, and 1*3.5mm Line out
- Video Formats: H.264 (AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2；
H.265(HEVC) Compatible with Main Profile, up to Level 5.1 - Video Decoding: 4 channels of H.264 (AVC) or H.265 (HEVC) video streams in resolution of 1080p60
- Audio Formats: AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
- Streaming protocols: NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP
- Display: 0.96” OLED Display and Touch Button
- Layouts: Custom 1/2/3/4 layouts
- Intercom: Yes
- OSD: Yes
- Tally: Yes
- Network Connections: Ethernet Ports: 2*10/100M/1000M
- USB Ports: 1*USB 2.0 Type-C
1*USB 2.0 Type-A - Power Supply: DC 12V/1A
- Management: WebUI/KiloLink Server
- Power Consumption: 7W (MAX)
- Size: 162.85mm x 104.00mm x 25.00mm
- Weight: 328.18g
- Operating Temperature: -20℃~60℃
