Magewell Eco Capture HDMI 4K Plus M.2 Single Channel 4Kp60 Capture Card
SGD 1,125.18 excl. Tax
Product Highlights:
- Captures one-channel HDMI + embedded audio
- High throughout for capture and supports higher frame rates
- M.2 2280 standard size for small or portable systems
Description

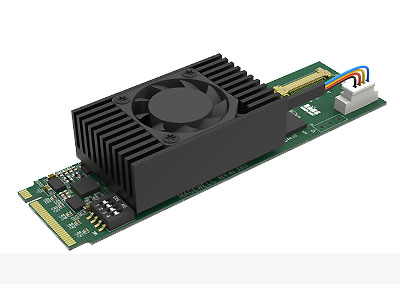

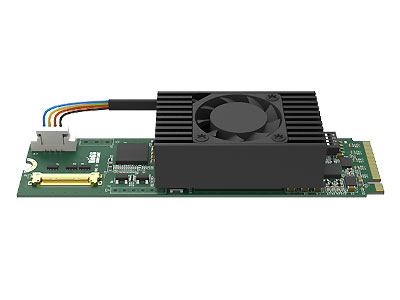

Magewell Eco Capture HDMI 4K Plus M.2 Capture Card
The Magewell Eco Capture HDMI 4K Plus M.2 Capture Card enables high-quality capture of up to DCI 4K (4096 × 2160) video at 60 fps. Designed in a compact M.2 2280 form factor, it is ideal for integration into small-footprint systems without sacrificing performance.
Equipped with HDMI and DVI-D inputs, the card transfers video to your system over a PCIe 3.0 x4 interface, supporting up to eight channels of embedded audio. It offers a range of professional-grade features, including automatic signal detection, low-latency performance, and SG-DMA transmission modes for efficient data handling. Additional functions such as onboard color conversion ensure accurate and consistent image quality across workflows.
Compatible with multiple versions of Windows and Linux, the Eco Capture HDMI 4K Plus provides flexibility for broadcast, streaming, and production environments.
Note: This model is not compatible with macOS.
To view more Magewell Products
Specifications
| Eco Capture HDMI 4K Plus M.2 Specifications | |
| Input Features |
|
| Process and Capture Features | ~2400MB/s per channel DMA bandwidth in PCIe 3.x system ~1600MB/s per channel DMA bandwidth in PCIe 2.x system ~800MB/s per channel DMA bandwidth in PCIe 1.x system Video processing pipelines with ~360Mpixels/s processing bandwidth Capture videos up to 4096×2160, frame rates up to 240fps. Typical outputs include (actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.):
Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
Support firmware upgrade |
| SDK & APIs |
|
| Supported OS |
|
| Input Interfaces | LVDS 0.5PH 20-Pin (Part number: 11580)
|
| Host Interfaces | M.2 2280 Type M (PCIe Gen3 x4) |
| Supported Softwares |
|
| LED Indicator | Status LEDs indicate the working state of each channel:
|
| Form Factor | M.2 2280 standard size (22 mm x 80 mm) |
| Accessories |
|
| Power Consumption |
|
| Working Environment |
|
