Magewell Pro Capture Quad HDMI Four-Channel HD Capture Card
USD 1,042.00 excl. Tax
Magewell Pro Capture Dual SDI Two-channel HD Capture Card
USD 602.00 excl. Tax
Magewell Pro Capture SDI One-Channel HD Capture Card
USD 324.00 excl. Tax
Product Highlights:
- Captures SD/HD/3G/2K SDI + embedded audio
- Loop-through SD/HD/3G/2K SDI + embedded audio
- PCIe 2.0 low-profile capture card
- Supports up to 2048 x 2048 resolution
- Up to 120 fps and 12-bit color
- Multiple cards and output streams supported
| Weight | 2.99 kg |
|---|
Description

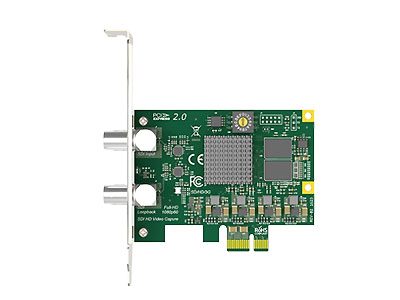

Magewell Pro Capture SDI Single Channel Low-Profile PCIe 2.0 Capture Card
Capture professional SDI video directly to your computer with the Magewell Pro Capture SDI. This low-profile PCIe 2.0 capture card is designed to ingest a single channel of SD, HD, or 3G-SDI video through a BNC input and features an SDI loop-through output for real-time monitoring or routing.
Compatible with a wide range of SDI formats, the Pro Capture SDI supports color sampling up to 12-bit, resolutions up to 2048 x 2048, and frame rates as high as 120 fps. Audio support includes up to 8 embedded channels at 48 kHz. A dedicated 2K mode ensures compatibility with cinema workflows.
Advanced onboard video processing includes cropping, scaling, deinterlacing, frame rate conversion, aspect ratio adjustments, color format conversion, and on-screen display (OSD) composition—enabling flexible, high-performance integration into any workflow.
The card supports multiple units per system and allows for unlimited output streams, each with independently configurable parameters. Designed for professional reliability, it offers ultra-low latency performance, precise audio/video synchronization, hardware timestamping, and LED indicators for real-time status monitoring.
Cross-platform compatibility includes support for Windows, Linux, and macOS. The card also provides multiple API options and SDKs for Windows to simplify software development and integration.
Key Features:
- PCIe 2.0 low-profile capture card
- SD/HD/3G-SDI input with loop-through output
- Supports up to 2048 x 2048 resolution
- Up to 120 fps and 12-bit color
- Onboard video processing and conversion
- Multiple cards and output streams supported
- Ultra-low latency and A/V sync
- Windows, Linux, and macOS compatible
- SDKs and APIs for easy integration
View more Open Gear Capture Card Products
Specifications
| Pro Capture SDI Specifications | |
| Supported OS | Windows
Mac
* More on the way with the upcoming support for macOS 14.x. |
| Recommended OS (tested) | Windows
Linux
Mac
|
| Supported APIs | Windows
Linux
macOS
|
| Supported Software |
|
| Input Interfaces | BNC
|
| Host Interfaces | PCIe Gen2 x1 |
| Loop-through Interfaces | BNC
|
| Input Features | Support for input video resolutions up to 2048×1080 pixels |
| SDI Specific Features | Integrated cable equalizer extending the cable length as follows:
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
Support for Closed Caption via SDK |
| Video Capture Formats | Support for capture image resolutions up to 2048×2160 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. ) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Magewell Capture SDK |
| Video Processing Features | Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing
Video aspect ratio conversion
Video color format conversion
Video frame rate conversion
|
| Multiple Cards per System |
|
| Multiple Capture Streams |
|
| Ultra Low Latency Support | Latency of 64 video lines Partial notification mode in SDK |
| Timestamp & A/V Synchronization |
|
| Video Capture SG-DMA |
|
| SDK | Magewell Capture SDK for easy integration, maximum flexibility and performance |
| Windows Driver Tweaks | All options can be controlled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade |
|
| LED Indicator | Status LEDs indicate the working state of each channel:
|
| Form Factor |
|
| Accessories | Low Profile bracket. |
| Power Consumption |
|
| Working Environment |
|
