    Magewell Ultra Encode SDI Flexible & Affordable Universal Encoder

    SGD 726.18 excl. Tax

    Product Highlights:

    • Live H.264/H.265 streaming
    • Supports streaming protocols including SRT, NDI®|HX, HLS & more
    • Suitable for various network environment
    Magewell
    SKU: 531200000 Category:
    Description

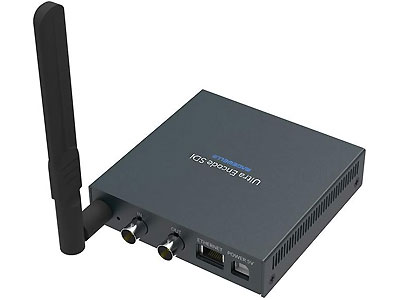

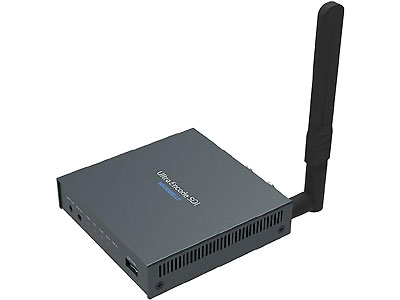

    Magewell Ultra Encode SDI Universal Encoder for Professional Streaming

    Stream professional-quality video directly from your SDI camera using the Magewell Ultra Encode SDI Universal Encoder. Designed for flexibility and portability, this compact unit accepts video resolutions up to 2K through its 3G-SDI input. It encodes using H.264 or H.265 codecs, enabling efficient, high-quality streaming. Output can be sent over Wi-Fi or Ethernet to popular platforms such as Facebook Live, YouTube, and Twitch, as well as custom IP destinations.

    The encoder includes analog audio input and output, with the option to connect USB modems for 4G or 5G mobile streaming worldwide. It supports multiple streaming protocols, including RTSP, RTMP, SRT, NDI|HX2, and RTP, making it suitable for a wide range of broadcast workflows. Dual simultaneous streams are supported, allowing separate main and sub streams from SD to 2K resolutions. Additional features include caption and timecode support, plus remote configuration and control via a standard web browser.

    For installation, the unit offers versatile mounting with an included T-bracket featuring a 1/4″-20 thread and dual M3 threaded holes for custom setups.

    To view more Magewell Products

    Specifications
    Ultra Encode SDI Specifications
    Input & Loop-through SDI

    • Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
    • Typical resolution/frame rate:
    • 2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 1280x720p 25/29.97/30/50/59.94/60
    • 720×576 25p/50i (PAL SD)
    • 720×480 29.97p/59.94i (NTSC SD)
    • Color sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4

    Audio

    • SDI embedded audio: 16-Channel, 24-bit, 192kHz sample rate
    • Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate
    Encode Video

    • Bitrate: 16Mbps
    • Dual-stream encoding: main stream and sub stream
    • Main stream Resolution/frame rate:
    • 2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
    • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
    • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
    • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
    • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5
    • Native CEA–608/608 over 708 captions
    • Sub stream
    • Supports enabling/disabling sub stream
    • Resolution/frame rate:
    • 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5
    • 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5
    • 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5
    • 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5
    • 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5
    • 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5

    H.264/H.265 (HEVC) Codec:

    • System timecode or RP–188 standard timecode for SEI Message setting
    • H.265 (HEVC) SEI message supports carrying interlacing signal mark
    • Video aspect ratio conversion

    Audio

    • 2-channel AAC audio
    • Bitrate: 256/192/128/96/64/48/32/16 kbps
    • Output source embedded audio and line in through LINE OUT
    Live stream Natively supports streaming to:

    • Twitch
    • YouTube, publishing to timeline or a new event and setting “made for kids”
    • Facebook, enabling backup stream and publishing to timeline or a new event

    Supports streaming protocols:

    • RTSP
    • RTMP/RTMPS
    • SRT Caller/SRT Listener
    • NDI HX2
    • HLS
    • TS over UDP/TS over RTP
    • TVU ISSP

    Supports sessions over the same streaming protocol, such as

    • Up to 6 sessions of TS over RTP and TS over UDP simultaneously
    • Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
    • Up to 6 sessions of RTMP and RTMPS simultaneously

    Supports streaming only 1 session of HLS, RTSP, or NDI HX2
    Supports specifying a video stream and an audio stream for each streaming session
    Supports NDI 6.1.1
    Web UI
    • Access Web UI via PC and smartphone
    • View real-time device status
    • Preview encoded video
    • Set input sources
    • Customize encoding parameters
    • Manage streaming destinations, start/stop streaming, view streaming status
    • Set up to 8 overlays for each stream, including text, picture, and clock
    • Update firmware
    • Supports registering Magewell Control Hub for centralized management
    • Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
    API Provides APIs for 3rd party control system
    Network Connections
    • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
    • Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported
    • 4G/5G USB modem (not supplied)
    • USB Net

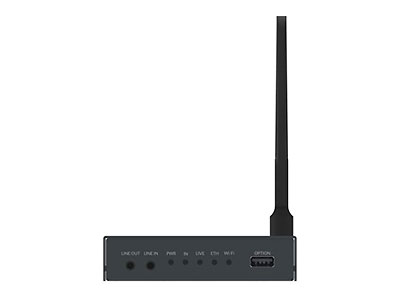

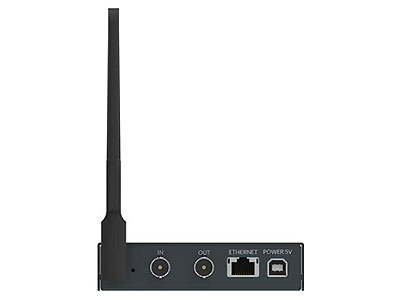

    Input/Output Ports 2 x SD/HD/3G BNC ports

    • 1 x Input
    • 1 x Loop-through

    1 x 3.5mm LINE IN
    1 x 3.5mm LINE OUT
    1 x USB Type-A
    LED Indicators LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
    Power Supply and Consumption
    • DC 5V/3A
    • Max power consumption: ~7.16W
    Form Factor 106.6mm x 106.2mm x 25mm
    Accessories
    • 1 x 5V Power Adapter
    • 1 x USB Type A to Type B cable
    • 1 x Wi-Fi Antenna
    • 1 x T-bracke
    Screw Mounting Hole
    • 2 x M3 threaded hole
    • A standard 1/4″-20 socket provided by T-bracket
    Working Environment
    • Operating temperature: 0 to 40 deg C
    • Storage temperature: –20 to 40 deg C
    • Relative humidity: 5% to 90% non-condensing
