Magewell USB Capture AIO One-Channel HD Capture Box
SGD 766.08 excl. Tax
Captures one of the following
- SDI + embedded audio + analog audio
- HDMI + embedded audio + analog audio
- DVI + audio
- VGA + audio
- Component + audio
- Composite + audio
- S-video + audio
Description

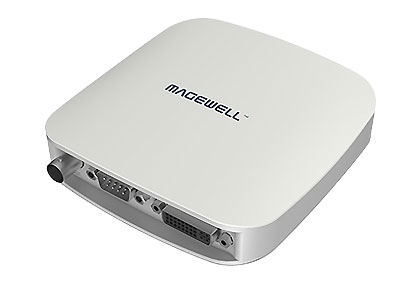

Magewell USB Capture AIO All-in-One SDI, VGA, and HDMI/DVI Capture via USB
The Magewell USB Capture AIO is a compact, all-in-one solution for bringing a variety of video signals into your computer. It can capture SDI, VGA, or DVI-I/HDMI sources over a USB 3.1 Gen 1 connection, making it suitable for streaming, recording, or live production work. The unit features BNC SDI, DB-9 VGA, and DVI-I inputs and supports resolutions up to 2048 × 2160. When a different resolution is needed, it can scale the input up or down automatically. Built-in hardware handles frame rate conversion and deinterlacing, easing the load on your computer’s CPU.
The device works without special drivers on Windows, macOS, and Linux, and is compatible with most software that recognizes standard drivers. It can also run on a USB 2.0 port if necessary, though the lower bandwidth will reduce maximum resolution and frame rates.
Included in the box are a breakout cable for HDMI 1.4a input via the DVI port, a DVI-to-VGA adapter, a USB cable, and a DB9-to-YC/composite/analog audio breakout cable, providing flexible connection options for different setups.
To view more Magewell Products
Specifications
| USB Capture AIO Specifications | |
| Input Interface | DVI-I: DVI 1.0
DB9
BNC SD/HD/3G SDI |
| HDMI Input Features |
|
| SDI Input Features |
|
| VGA & Component Input Features |
|
| S-video & CVBS Input Features |
|
| Process and Capture Features | Video processing pipeline up to 160M pixels/s. Capture resolutions up to 2048×2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
Support for YUY2/UYVY/RGB24/RGB32 |
| Included Software |
|
| SDK & APIs |
|
| Output Interface | USB 3.0
|
| Compatible Software |
|
| Recommended OS |
|
| LED Indicator | Status LEDs indicate the working state of each channel:
|
| Form Factor | 116mm (L) x 116mm (W) x 32mm (H) |
| Accessories |
|
| Power Consumption |
|
| Working Environment |
|
