Panasonic VW-HU1PP-K Handle Unit
USD 300.00 excl. Tax
Litepanels Croma 2 LED Light
USD 605.00 excl. Tax
Panasonic AG-UCK20GJ 4K Camera Head
USD 1,869.33 excl. Tax
| Weight | 6 kg |
|---|
This model has been discontinued
Description
Click to rate this post!
[Total: 0 Average: 0]

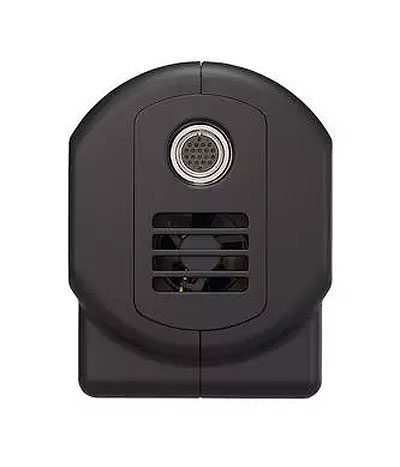

Panasonic AG-UCK20GJ 4K POV 20 x Zoom Compact Camera Head
Panasonic AG-UCK20GJ 4K Compact POVCAM camera head to facilitate ultra-flexible installations in places that would typically be out of reach. Panasonic AG-UCK20 4K Cameras, Lightweight, Free-Style Shooting Inheriting the features of the first-generation POVCAM plus the operating ease of a touch panel. Network Operation for IP Control and IP Streaming LAN connection enables zooming and real-time video monitoring with a PC or tablet. Double SDXC Memory Card Slots Extended recording capability with large-capacity SDXC Memory Cards and Relay Recording. High-Quality, Newly Designed 4K (UHD) Camera Head Features a high-resolution, progressive MOS sensor and 29.5mm (35 mm equivalent) wide-angle optical 20x zoom lens.
The 4K acquisition is possible only when connected to the AG-UCK20GJ Compact Camera Head. 4K refers to UHD (3840 x 2160) resolution. The maximum resolution in 4K shooting mode via HDMI/SDI output is FHD (1920 x 1080) 59.94i/50i.
Scan Reverse mode: Image inversion for shooting with a ceiling-mounted Camera Head.
Scene files: Auto and three manual setting files allow scene settings to be switched and saved
A Compact Recorder with Versatile Operation for Broadcasting, Video Production, Live Streaming, and more. “POVCAM” with a Compact, Lightweight, Free Style Shooting and IP Network Capability.
A Compact, Lightweight, Free-Style Shooting: Inheriting the features of the first-generation POVCAM plus the operating ease of a touch panel.
Network Operation for IP Control and IP Streaming: A LAN connection enables zooming and real-time video monitoring with a PC or tablet.
Double SDXC Memory Card Slots: Extended recording capability with large-capacity SDXC Memory Cards and Relay Recording.
High-Quality, Newly Designed 4K* (UHD) Camera Head: Featuring a high-resolution, progressive MOS sensor and 29.5mm (35 mm equivalent) wide-angle optical 20x zoom lens.
KEY FEATURES
Free-Style Shooting
- Compact Camera Head for Flexible Installation
- Compact, Lightweight, Battery-Drive Recorder
- Touch-Panel LCD Monitor
IP Network Operation
- LAN Terminal for IP Streaming and IP Control
- A receptor Terminal that also controls Focus and Iris
- Simultaneous Output of 3G-SDI Input/Output and HDMI Output
- Versatile Interfaces
Memory Card Slots
- AVCHD Acquisition with High-Quality PS/PH Modes
- Double SD Memory Card Slots (SDXC Memory Card)
- Versatile Recording Functions for Professional Use
- Playback Functions Convenient for Presentations
4K (UHD) Camera Head
- High-Resolution, Progressive MOS Sensor
- 29.5 mm Wide-Angle Optical 20x Zoom Lens
- Stable Images with the Five-Axis Hybrid Image Stabilizer
- Picture Adjustments like High-End Cameras
- Versatile Camera Functions
To learn more about 4K Cameras
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| General | |
|---|---|
| Power | DC 9 V (supplied from the AG-UMR20) |
| Power consumption | 0.6 A |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating humidity | 10 % to 80 % (no condensation) |
| Weight | Approx. 325 g (0.717 lbs) |
| Dimensions (W x H x D) | 64 mm x 72 mm x 131 mm (excluding protrusion) (2-17/32 inches x 2-27/32 inches x 5-5/32 inches) |
| Camera | |
| Pickup Devices | 1/2.3-type MOS MOS solid state image sensor (Total pixels: approx. 12.76 megapixels) |
| LENS | Zoom: optical 20x motorized zoom Fvalue: F1.8 to F3.6, Focal length: f- 4.08 mm to 81.6 mm 35 mm conversion: 29.5 mm to 612.0 mm (Hybrid O.I.S mode “OFF”) Filter diameter: 49 mm, ND filter: CLEAR, 1/4, 1/16, 1/64 (built-in) Shortest shooting distance: 1.5 m (4.9 ft) at zoom range, 3 cm (0.1 ft) at wide angle IR cut filter： incorporates the ON/OFF control function |
| Zoom | i. Zoom: x30 (HD), x22 (4K) Digital zoom: x1.4, x2, x4, x6, x8 |
| Image Stabilizer | Optical image stabilizer (HD/4K) 5-Axis hybrid image stabilizer (HD) |
| Gain setting | Automatic, manual 0 dB to 30 dB(1 dB step), Super Gain 33 dB, 36 dB At auto mode, 3 dB to 30 dB (3 dB steps) can be selected with AGC limit setting. |
| WHITE BALANCE | ATW, ATW LOCK, AWB A, AWB B, P3200K, P5600K, VAR (2000 K to 15000 K) |
|
Shutter Speed |
59.94i/59.94p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec. 29.97p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec. to 1/8000 sec. (same as above) 23.98p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec. to 1/8000 sec. (same as above) 50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec. to 1/8000 sec. (same as above) 25.00p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec. to 1/8000 sec. (same as above) |
| Slow shutter | 59.94i/59.94p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec. 29.97p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec. 23.98p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec. 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec., 25.00p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec. |
| Synchro scan | 59.94i/59.94p mode: 1/60.0 sec. to 1/285.6 sec. 29.97p mode: 1/30.0 sec. to 1/206.5 sec. 23.98p mode: 1/24.0 sec. to 1/280.1 sec. 50i/50p mode: 1/50.0 sec. to 1/209.2 sec. 25p mode: 1/25.0 sec. to 1/224.3 sec. |
| MINIMUM ILLUMINATION | 0.2 lx (slow shutter: 1/2 sec., gain: +36 dB) |
| INPUT/OUTPUT | |
| AUDIO IN | Built-in microphone (2 CH stereo) |
| Connector | 20 pin dedicated interface (to the AG-UMR20) |
| Horizontal resolution (Typ, Center) | 1,300 TV (HDMI output 2160/29.97p, when 25.00p playback) 1,000 TV (HDMI output 1080/59.94p, when 50.00p playback) |
