Panasonic PT-CMZ50 Ultra-Short Throw LCD Laser Projector
Product Highlights:
- Communicate Clearly and Comfortably
- Flexible, Versatile, and Easy to Install
- Fast and Frictionless UX
- Project Large Images in Rooms with Limited Space
- Simplified Installation, Setup, and Adjustment
- Stress-free Daily Operation
Description

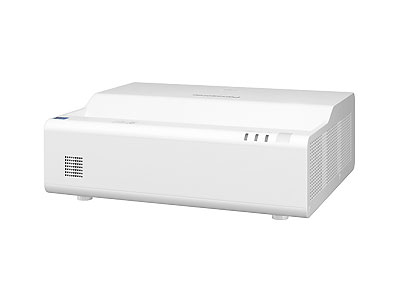

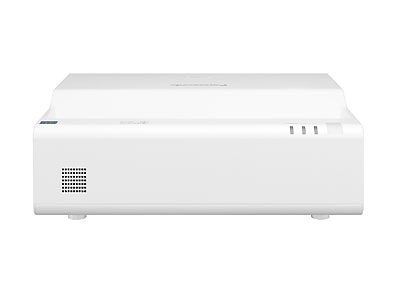

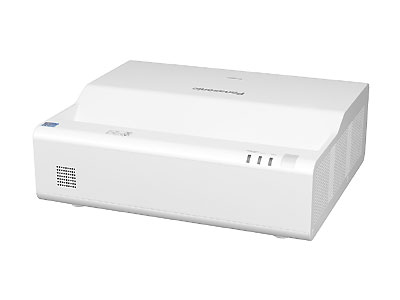

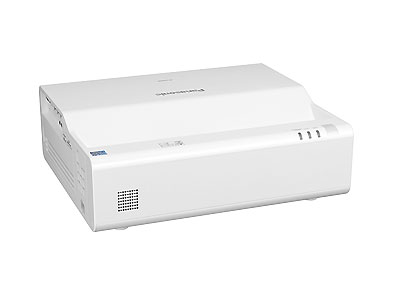

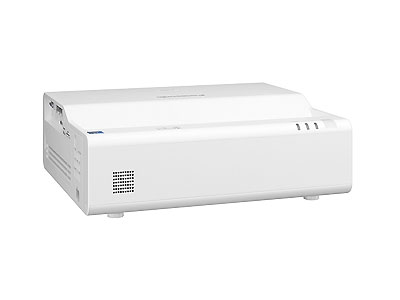

Panasonic PT-CMZ50 0.235–0.288:1 5,000lm WUXGA 3LCD Projector
The Panasonic PT-CMZ50 is an ultra-short throw LCD laser projector delivering exceptionally bright visuals without shadowing. Perfect for education, corporate and museum environments, the PT-CMZ50 delivers an expansive 80-inch image from approximately 1cm (1/3 in.), allowing presenters to share information confidently without worrying about on-screen shadows or being blinded by light from the lens.
Project Large Images in Rooms with Limited Space
The Panasonic PT-CMZ50 can deliver a large 80-inch image from about 1 cm (1/3 in.)4, avoiding shadows on the screen and maximizing the display area in small rooms or wherever installation space is limited. It supports the display of widescreen 2560 x 1080 (21:9)5 and 3240 x 1080 (27:9)5 video content and connection of a second projector via its HDMI OUT terminal.
Panasonic PT-CMZ50 Projector Simplified Installation, Setup, and Adjustment
Installation is swift and straightforward, even in rooms with low ceilings. Our wall-mount option ships partially preassembled to save you time and resources. Adjustment is streamlined with powered center and periphery focus and Digital Zoom Extender and Digital Image Shift6 via remote control. A stylish body and quiet
25 dB7 operation blend CMZ50 into the room.
Digital Zoom Extender and Digital Image Shift
If it’s not possible to install your CMZ50 projector in the optimal position, the Digital Zoom Extender and Digital Image Shift functions may be useful. In addition to digitally adjusting the image size so it fits on the screen, you can digitally shift the projection by up to ±10% vertically and up to ±10% horizontally. The image position and size can be flexibly changed to fit your screen without touching the projector.
PT-CMZ50 Projector Equipped with Various Screen Correction Functions
When projecting obliquely, you can correct any resulting image distortion using screen adjustment functions accessed via the remote control. These include 4-Corner Correction and Vertical/Horizontal Keystone Correction, which resolve distortion based on the projection angle, and Curved Screen Correction1, which reduces image distortion when projecting onto curved surfaces such as a curved blackboard or thin board.
PT-CMZ50 Projector Stress-free Daily Operation
Start work instantly: images appear about one second8 after powering on, and CEC command-compatible9 HDMI enables control with a single remote. CMZ50 works with wireless apps10 and Wireless Presentation System PressIT11. Light-source and filter don’t need maintenance for 20,000 hours12, and the projector is energy-efficient to save resources.
Large Images with Minimal Shadows
Installing almost flush to the wall, this integrated ultra-short-throw design delivers big pictures up to 120 inches anywhere installation space is limited. It avoids screen shadows so your audience always gets a clear view. With 5,200 lm1 brightness, 3,000,000:12 Dynamic Contrast, original Detail Clarity Processor 4 technology, and WUXGA resolution, images are bright, sharp, and clear even in well-lit rooms.
Effortlessly Projects Widescreen Content
Project widescreen video-conferencing software layouts at an immersive scale and revitalize communication between on-site and remote participants. CMZ50 supports 2560 x 1080 (21:9) or 3240 x 1080 (27:9) input signals3, and a second CMZ50 can be connected via HDMI output to display widescreen content at native resolution. Quiet 25 dB4 operation and unobtrusive design limit distractions, essential for hybrid spaces.
Easy Adjustment and Smooth UX
Once the projector is installed, you can put away your stepladder. Powered center and periphery focus and Digital Zoom Extender and Digital Image Shift5 are operable via remote control. Daily operation is equally smooth, with content displayed in one second6 and CEC command-compatible7 HDMI enabling control with one remote. Enjoy 31%8 better watts-per-lumen efficiency and less maintenance cost and hassle.
A Convenient Wall-Mount Design
Our lightweight wall-mount option is easier to install than other systems, shipping partially pre-assembled with fewer parts to save you time. Its generous adjustment range lets you align the projector correctly when the mount location isn’t perfect. Three optional ceiling mounts are available, with CMZ50’s low-offset design ideal in rooms with low ceilings.
PT-CMZ50 Projector Additional Features
- Built-in 10 W speaker, mic input, audio output, and shutter function
- DICOM Simulation Mode
- Supports PJLink, Crestron Connected, and AMX DD
- Control emulation function
- Free 360° installation
- ECO Management System
- Presentation Support System
To view more Panasonic Products
View more LCD and Laser Projectors
Projector Types
Specifications
| Projector type | LCD projector |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device -> Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| Display Device -> Drive method | Active matrix method |
| Display Device -> Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diodes |
| Light output | 5,200 lm |
| Light output (ANSI) | 5,200 lm |
| Time until light output declines to 50 % -> NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 % -> QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 2.03–3.05 m (80–120 in) (16:10 aspect ratio) |
| Center-to-corner zone ratio | 85% |
| Lens | Fixed zoom, powered focus lens, F = 1.7, f = 2.81 mm, throw ratio: 0.235:1 (16:10 aspect ratio) (Projection distance: 1 cm [1/3 in] for 80-inch image) |
| Digital Zoom Extender | Throw ratio 0.235–0.288:1 (16:10 aspect ratio) (Corresponding value) |
| Keystone correction range | Vertical: ±3 °, Horizontal: ±3 ° |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals -> HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported*7 |
| Terminals -> HDMI OUT | HDMI 19-pin x 1 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal output) |
| Terminals -> COMPUTER IN（D-SUB 15pin） | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals -> AUDIO IN (M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals -> AUDIO OUT (M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals -> SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals -> DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink HDCP, Deep Color, 4K/30p signal input) |
| Terminals -> LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink |
| Terminals -> USB TYPE A | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,power supply (DC 5 V, maximum 2 A) |
| Protocol versions | IPv4, IPv6*8 |
| Power supply | AC 100–240 V, 50/60 Hz |
| Maximum power consumption | 325 W (3.4–1.4 A) (330 VA) (Power consumption is 310 W at AC 200–240 V) |
| On-mode power consumption(Operating mode) -> Normal | [NORMAL]290 W (AC 100–120 V), 280 W (AC 200–240 V) |
| On-mode power consumption(Operating mode) -> Eco | [ECO]215 W (AC 100–120 V), 205 W (AC 200–240 V) |
| On-mode power consumption (Operating mode) -> Quiet | [QUIET]210 W (AC 100–120 V), 200 W (AC 200–240 V) |
| Built-in speaker | 10 W monaural |
| Cabinet materials | Molded plastic |
| Filter | Included |
| Estimated filter maintenance cycle | Approx. 20,000 hours |
| Operation noise -> Normal | 34 dB [NORMAL] |
| Operation noise -> Eco | 34 dB [ECO] |
| Operation noise -> Quiet | 25 dB [QUIET] |
| Dimensions (W x H x D) | 495 mm x 160 mm x 421 mm (19 1/2˝ x 6 19/64˝ x 16 37/64˝) (excluding feet and protrusions),495 mm x 176 mm x 421 mm (19 1/2˝ x 6 15/16˝ x 16 37/64˝) (with feet at shortest position) |
| Dimensions (W x H x D) -> Width (not including protruding parts) | 495 mm (19 1/2˝) |
| Dimensions -> Width (including protruding parts) | 495 mm (19 1/2˝) |
| Dimensions -> Height (not including protruding parts) | 160 mm (6 19/64˝) |
| Dimensions -> Height (including protruding parts) | 176 mm (6 15/16˝) |
| Dimensions -> Depth (not including protruding parts) | 421 mm (16 37/64˝) |
| Dimensions -> Depth (including lens) | 421 mm (16 37/64˝) |
| Weight | Approx. 9.5 kg (20.9 lbs) |
| Operating environment -> Operating temperature | 0–45 °C (32–113 °F) |
| Operating Environment -> Operating humidity (No condensation) | 20–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Logo Transfer Software, Projector Network Setup Software, Presenter Light Software for Windows, Wireless Projector App for iOS/Android |
| Control function via LAN | PJLink [Class 2], Crestron Connected, AMX Device Discovery |
