Panasonic PT-EW730ZE LCD Projector
Description
Click to rate this post!
[Total: 0 Average: 0]
Panasonic PT-EW730ZE WXGA 7,000 Lumens LCD Projector
Panasonic PT-EW730ZE LCD projector is a class-leading 7,000 lm of brightness with a contrast ratio of 5,000:1. The iris automatically adjusts to suit ambient lighting conditions. This projector is High Brightness, Low TCO, and Flexible Installation for Versatile Use.
Features:
- LCD, 7000 lumens, WXGA
- Daylight View Basic function ensures clear and vivid image quality in bright environments
- Integrated DIGITAL LINK and Displayport connection
- Eco filter enables up to 15000 hours of air filter replacement cycle
The Daylight View Basic Function Ensures Clear Images Even in Brightly Lit Rooms
Panasonic‘s Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.
DICOM Simulation Mode
This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity.
Built-in 10-W Speaker
Panasonic PT-EW730ZE projectors feature a high-output 10-watt monaural speaker that produces a large sound volume without requiring external speakers.
Other Features:
- Presentation support/control tools such as Presentation Timer, Freeze Function, and Digital Zoom
- A projector identification system for remote control allocation of up to 64 projectors
- Direct Power Off right after use
- Built-in closed caption decoder (NTSC and 480i (YCBCR) only)
- Lower Maintenance and Running Costs
- Colour Adjustment Function

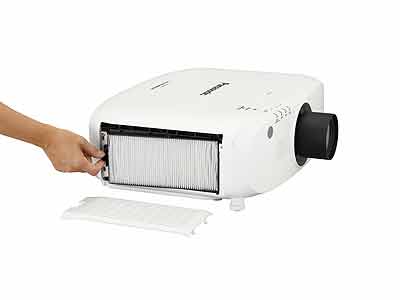

- Dust-Resistant Cabinet Design and an Eco Filter that Needs No Replacement for 15,000 Hours
- Lamp Replacement Cycle of up to 4,500hours
- Intelligent Lamp Control System Reduces Power Consumption
- Eco Management Functions
- Easy Lamp and Air Filter Replacement
- Quiet 29-dB Design Does Not Interrupt Meetings or Classes
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Feature | Specification |
|---|---|
| Brightness | 7,000 lumens (LAMP POWER: AUTO/NORMAL, Dynamic mode, Standard lens) |
| Resolution | 1,280 x 800 pixels |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | 575 W (0.3 W with STANDBY MODE set to ECO, 10 W with STANDBY MODE set to NORMAL, 37 W within STANDBY MODE of Audio Setting set to on.) |
| Optical System | Dichroic mirror separation/prism synthesis system |
| LCD Panel Panel Size | 19.0 mm (0.75 inches) diagonal (16:10 aspect ratio) |
| LCD Panel Display Method | Transparent LCD panel (x 3, R/G/B) |
| LCD Panel Pixels | 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels |
| LCD Panel Pixel Configuration | Stripe |
| Lens | Powered zoom/focus lens (1.7-2.8:1), F 1.7-2.3, f 26.9-45.4 mm Optional powered zoom/focus lenses and fixed-focus lens |
| Lamp | 400 W UHM lamp |
| Screen Size | 1.02 – 10.16 m (40 – 400 inches), 16:10 aspect ratio (1.52 – 10.16 m (60 – 400 inches) with the ET-ELW22 (16:10 aspect ratio)) |
| Center-to-Corner Uniformity | 90% |
| Contrast | 5,000:1 (full on/full off, LAMP POWER: AUTO, Iris on, Dynamic mode) |
| Scanning Frequency (Display Port/HDMI/DVI-D) | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25 MHz-162 MHz (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant, compatible with HDCP) |
| Scanning Frequency (RGB) | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz |
| Scanning Frequency YPBPR (YCBCR) | 480i(525i): fH 15.73 kHz; fV 59.94 Hz, 576i(625i): fH 15.63 kHz; fV 50 Hz, 480p(525p): fH 31.47 kHz; fV 59.94 Hz, 576p(625p): fH 31.25 kHz; fV 50 Hz, 720(750)/60p: fH 45.00 kHz; fV 60 Hz, 720(750)/50p: fH 37.50 kHz; fV 50 Hz, 1080(1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080(1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080(1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080(1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080(1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080(1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080(1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080(1125)/50p: fH 56.25 kHz; fV 50 Hz |
| Scanning Frequency (Video/YC) | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60]; fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
| Optical Axis Shift | Vertical: ±60% (±50% with the ET-ELW22.) (powered), Horizontal: ±10% (powered); NOTE: Optical axis shift function cannot be operated when used with the ET-ELW21. |
| Keystone Correction Range | Vertical: ±40° (with vertical correction only) Horizontal: ±30° (with horizontal correction only) |
| Installation | Ceiling/floor, front/rear |
| Built-in Speaker Size | 3.7 cm (1-15/32 inches) (round) x 1 |
| Built-in Speaker Output Power | 10 W (monaural) |
| Terminals Display Port In | DP-20P x 1, HDCP compatible; 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p; VGA(640 x 400) – WUXGA(1,920 x 1,200); Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| Terminals HDMI In | HDMI 19-pin x 1, Deep Color, HDCP compatible; 480i(525i), 576i(625i), 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p; VGA(640 x 400) – WUXGA(1,920 x 1,200); Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz,32 kHz) |
| Terminals DVI-D In | DVI-D 24-pin x 1, DVI 1.0 compliant, compatible with HDCP, compatible with single link only 480i(525i), 576i(625i), 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p; VGA(640 x 400) – WUXGA(1,920 x 1,200) |
| Terminals RGB 1 In | D-sub HD 15-pin (female) x 1 |
| Terminals RGB 1 In R, G, B | R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: high impedance, TTL (positive/negative) |
| Terminals RGB 1 In Y, PB (CB), PR (CR) | Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms; NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals. |
| Terminals RGB 2 In | BNC x 5 (RGB/YPBPR/YCBCR x 1) |
| Terminals RGB 2 In R, G, B | R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms ; HD/VD, SYNC: high impedance, TTL (positive/negative); NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals. |
| Terminals RGB2 In Y, PB (CB), PR (CR) | Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms |
| Terminals RGB 2 In S-Video In | Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms |
| Terminals Video In | PIN Jack x 1, 1.0 Vp-p, 75 ohms |
| Terminals Monitor Out | D-sub HD 15-pin (female) x 1 R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: high impedance, TTL (positive/negative) |
| Terminals Monitor Out Y, PB (CB), PR (CR) | Y: 1.0 Vp-p (including sync signal); PB (CB), PR (CR): 0.7 Vp-p, 75 ohms |
| Terminals Audio In | M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more; M3 (L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more; PIN Jack (L, R) x 2, 0.5 Vrms, input impedance: 22 kilohms or more |
| Terminals Variable Audio Out | M3 (L, R) x 1 (monitor out: 0 – 2.0 Vrms, variable) |
| Terminals Serial In | D-sub 9-pin (female) x 1, for external control (RS-232C compliant) |
| Terminals Remoter 1 In | M3 jack x 1 for wired remote control |
| Terminals Remoter 2 In | D-sub 9-pin (female) x 1, for external control (parallel) |
| Terminals LAN/DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compliant with PJLink (class 1), Deep Color, compatible with HDCP, 480i(525i), 576i(625i), 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p; VGA(640 x 400) – WUXGA(1,920 x 1,200), dot clock: 25 MHz-162 MHz; NOTE: Compatible with non-interlaced signals only. |
| Power Cord Length | 3.0 m (9 ft 10 in) |
| Cabinet Materials | Molded plastic |
| Dimensions (W x H x D) PT-EZ730Z | 530 x 177 x 445 mm (20-7/8 x 6-31/32 x 17-17/32 inches) (with supplied lens) |
| Dimensions (W x H x D) PT-EZ730ZL | 530 x 177 x 385 mm (20-7/8 x 6-31/32 x 15-5/32 inches) (without lens) |
| Weight PT-EZ730Z | Approx. 10.6 kg (23.4 lbs) (with supplied lens) |
| Weight PT-EZ730ZL | Approx. 9.8 kg (21.6 lbs) (without lens) |
| Operation Noise | 37 dB (LAMP POWER: NORMAL), 31 dB (LAMP POWER: ECO 1), 29 dB (LAMP POWER: ECO 2) |
| Operating Temperature | 0℃ – 45℃ (32℉ – 113℉) |
| Operating Humidity | 10% – 80% (no condensation) |
| Technology | LCD Projector |
