Panasonic PT-FRQ50 1-Chip DLP Laser Projector
Product Highlights:
- 1-Chip DLP laser projector, 5,200lm brightness
- 4K (3840 x 2160) output resolution, ideal for museum exhibitions, education, and corporate offices
- 2.0x zoom lens and wide V/H Lens Shift (V: +71 %, -48 %, H: +34 %, -27 %)
- Preactivated upgrade kit for Geometry Manager Pro
- Supports 240Hz/1080p high frame rate with minimal input-to-output latency
Description
Panasonic PT-FRQ50 Fixed lens 1-Chip DLP Projector with True 4K resolution
Panasonic PT-FRQ50 is a Compact 1-Chip DLP Projectors Deliver Smooth, Detailed Images for an Insightful Visual Experience.
Smooth and Detailed 4K Image Quality
Quad Pixel Drive creates sharp, detailed 4K images with Rich Color Enhancer achieving vivid, accurate color. High-speed processing supports 240 Hz/1080p frame rates with latency of 8 ms or less for smooth, grid-less images.
Flexible, Simple to Use, and Easy to Integrate
V/H Lens-Shift and 2.0x zoom enhance installation flexibility while two CEC-compatible HDMI inputs and DIGITAL LINK integrate into 4K infrastructure. Preactivated upgrade kits for Geo Pro and Remote Preview Lite secure an effortless 4K experience.
Highly Reliable Low-Maintenance Projection
Filterless heat-pipe-based cooling and hermetically sealed optical block support 20,000-hour maintenance-free projection. Optional Early Warning functions streamline management and enhance reliability in museums, classrooms, and offices.
To view more Panasonic Products
View more LCD and Laser Projectors
Projector Types
Specifications
| Projector type | 1-Chip DLP projector |
| Display method | DLP chip x 1, DLP projection system |
| Display Device -> Panel size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) |
| Display Device -> Number of pixels | 1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.) |
| Light source | Laser diodes |
| Light output | 5,200 lm |
| Light output (ANSI) | 5,200 lm |
| Light output (Center) | 5,400 lm (Center) |
| Time until light output declines to 50 % -> NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 % -> QUIET | 20,000 hours [QUIET] |
| Resolution | 4K (3840 x 2160 pixels) (With Quad Pixel Drive) |
| Contrast Ratio (typ.) | 20,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input) |
| Screen size (diagonal) | 1.02–7.62 m (40–300 in), 16:9 aspect ratio |
| Center-to-corner zone ratio | 90% |
| Lens | 2.0x manual zoom (throw ratio: 1.46–2.93:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm |
| Lens shift -> Vertical (from center of screen) | +71 %, -48 % (manual) |
| Lens shift -> Horizontal (from center of screen) | +34 %, -27 % (manual) |
| Keystone correction range | Vertical: ±40 °, Horizontal: ±20 ° |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |

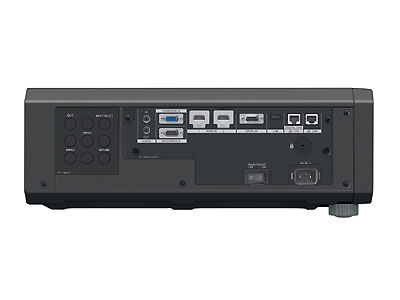

| Terminals -> HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported |
| Terminals -> COMPUTER IN（D-SUB 15pin) | D-sub-HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals -> COMPUTER OUT（D-SUB 15pin) | D-sub-HD 15-pin (female) x 1(RGB/YPBPR/YCBCR) |
| Terminals -> AUDIO IN (M3 Stereo Mini Jack) | M3 stereo mini-jack x 2 |
| Terminals -> AUDIO OUT (M3 Stereo Mini Jack) | M3 stereo mini-jack x 2 |
| Terminals -> SERIAL IN | D-sub-9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals -> DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal Input, Extron XTP |
| Terminals -> LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLinkTM [Class 2], Art-Net) |
| Terminals -> DC OUT | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals -> USB TYPE A | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory,and for power supply (DC 5 V, maximum 2 A) |
| Terminals -> SLOT | IPv4, IPv6 |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100–240 V, 50/60 Hz, AC 110 V, 60 Hz (Taiwan) |
| Maximum power consumption | 480 W (5.0–2.2 A) (500 VA) |
| On-mode power consumption (Operating mode) -> Normal | [NORMAL] 420 W |
| On-mode power consumption (Operating mode) -> Eco | [ECO] 330 W |
| On-mode power consumption (Operating mode) -> Quiet | [QUIET] 330 W |
| Standby power consumption -> Normal | 15 W （Standby Mode）［NORMAL] |
| Standby power consumption -> ECO | 0.5 W （Standby Mode）［ECO] |
| Cabinet materials | Molded plastic |
| Filter | No |
| Operation noise -> Normal | 35 dB [NORMAL] |
| Operation noise -> Eco | 35 dB [ECO] |
| Operation noise -> Quiet | 28 dB [QUIET] |
| Dimensions (W x H x D) | 498 x 168 x 492 mm (19 5/8˝ x 6 5/8˝ x 19 3/8˝) |
| Dimensions (W x H x D) -> Width | 498 mm (19 5/8˝) |
| Dimensions -> Height (including protruding parts) | 168 mm (6 5/8˝) |
| Dimensions -> Depth (not including protruding parts) | 492 mm (19 3/8˝) |
| Weight | Approx. 16.1 kg (35.5 lbs) |
| Operating environment -> Operating temperature | 0–45 °C (32–113 °F) |
| Operating Environment -> Operating humidity (No condensation) | 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Projector Network Setup Software |
| Control function via LAN | Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMX DD, and PJLink (Class 2) |
