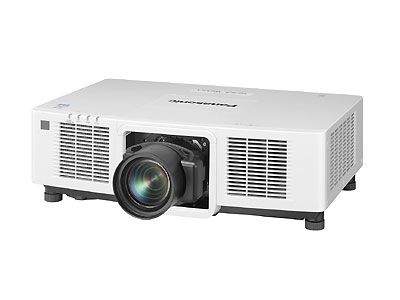

Panasonic PT-MZ14KL 14,000-Lumen WUXGA Laser DLP Projector
Product Highlights:
- World’s Smallest, Lightest, and Quietest 14,000 lm LCD Projector
- Long-Life Energy-Saving Design Minimizes Problems
- Delivering up to 14,000 lm on AC 100–240 V
Description
Panasonic PT-MZ14KL WUXGA Laser DLP Projector: Precision, Brightness, and Color Accuracy in One Projector
The Panasonic PT-MZ14KL projector delivers bright, quiet, and precise projections, making it ideal for professional presentations and large-scale events. Paired with an optional lens, it produces vivid, sharp, and accurate images in any environment. With 14,000 lumens of brightness powered by a multi-laser drive engine, the projector ensures clear and realistic visuals even in challenging lighting conditions.
The lightweight chassis contributes to easier installation and portability, while its quiet operation mode and additional silent mode keep audiences focused without distraction. A range of advanced imaging technologies, including the Pure White Generator, Dynamic Contrast NX, and Clarity Processor 4, deliver outstanding sharpness, rich contrast, and true-to-life color performance.
Pure White Generator
A multi-reflection system minimizes light loss to achieve bright, accurate, and natural color reproduction for realistic projections.
Dynamic Contrast NX
The projector uses real-time video-scene analysis to detect variations between bright and dark areas. This results in improved contrast depth, with precise detail in both highlights and shadows.
Reliable Performance for Critical Use
The PT-MZ14KL is designed for mission-critical presentations where reliability matters most. The multi-laser drive engine incorporates multiple modules with numerous laser diodes, backed by failover circuitry. If any laser diode fails, the projector continues to operate with minimal brightness loss.
To support long-term operation, the liquid-cooling system stabilizes performance even during continuous, high-brightness use. In addition, dual HDMI inputs provide backup in case of a signal failure, ensuring seamless presentations with minimal interruption.
Built-In Information Monitor
Ease of operation is supported by the inclusion of an information monitor built directly into the control panel. This display shows real-time information such as temperature, voltage, operating hours, and input signals, helping operators quickly identify and address issues. Having this data available at a glance reduces downtime and streamlines troubleshooting, particularly in large installations where efficiency is key.
Simplified Multi-Projector Setup
The PT-MZ14KL supports data cloning via LAN or USB, making it easy to copy settings across multiple projectors. This reduces setup time and ensures consistent performance in large-scale installations.
Smart Projector Control with NFC
Panasonic provides advanced control through its Smart Projector Control app, which allows operators to manage the PT-MZ14KL along with up to 63 additional projectors from a single device. The app supports functions such as lens adjustment, focus control, and test pattern switching, giving users full flexibility without direct physical access to the projector.
The app also supports NFC connectivity, enabling quick configuration with just a tap of a smartphone. This simplifies setup and ensures consistent operation across multiple units, especially in large or complex installations.
Advanced Image Adjustment Tools
The PT-MZ14KL offers a wide array of correction features to ensure perfectly aligned, distortion-free images on any surface:
- Geometric Adjustment corrects trapezoidal distortion and adapts to curved projection surfaces.
- The free grid function enables pinpoint adjustments using grids ranging from 2×2 to 17×17 points, allowing local distortion corrections or batch adjustments for multiple projectors.
- Geometry Manager Pro software provides PC-based control for advanced image shaping, scaling, and batch corrections, streamlining complex installations.
Optimized Black Levels
For multi-projector edge-blending applications, the PT-MZ14KL offers black border adjustment at up to 17 points. This ensures seamless integration between projectors, creating smooth transitions and optimized black levels across curved or wide-format projection surfaces. This capability is particularly valuable in professional stage productions, immersive experiences, and large digital displays.
Remote Preview LITE
Operators can monitor and preview projections remotely using Multi Monitoring & Control software or a standard web browser. This feature allows previews to be checked from a PC connected to the same network, even if the projector is in standby mode or the shutter is closed. Remote preview saves time, reduces unnecessary adjustments, and helps operators maintain smooth workflows during live events or installations.
Eco-Friendly and Practical Design
Beyond performance, the PT-MZ14KL is built with efficiency and sustainability in mind. Its laser light source eliminates the need for bulb replacements, reducing maintenance costs and minimizing downtime. The projector is also designed to consume less energy while delivering long-lasting, consistent brightness.
Additional practical features include:
- 16:10 aspect ratio for widescreen presentations
- 4K/60p input support via HDMI and DIGITAL LINK
- Dual voltage compatibility for global use
- NFC support for quick configuration
- Lightweight design for easier transport and installation
To view more Panasonic Products
View more LCD and Laser Projectors
Projector Types
Specifications
| Projector type | LCD projectors |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device -> Panel size | 25.4 mm (1.0 in) diagonal (16:10 aspect ratio) |
| Display Device -> Drive method | Active-matrix method |
| Display Device -> Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diode |
| Light output | 14,000 lm |
| Light output (ANSI) | 14,000 lm |
| Time until light output declines to 50 % -> NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC]and [DYNAMIC CONTRAST] set to [3].) |
| Screen size (diagonal) | 2.03–15.24 m (80–600 in), 2.54–10.16 m (100–400 in) with ET-EMU100,2.03–12.70 m (80–500 in) with ET-EMT800, 16:10 aspect ratio |
| Center-to-corner zone ratio | 85% |
| Lens | Optional (no lens included with this model) |
| Lens shift -> Vertical(from center of screen) | ±60 % (+50 %, -20 % with ET-EMU100, ±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered) |
| Lens shift -> Horizontal(from center of screen) | ±20 % (±19 % with ET-EMW200) (powered) |
| Keystone correction range | Vertical: ±45 ° (±5 ° with ET-EMU100, ±14 ° with ET-EMW200/ET-EMW300, ±22 ° with ET-EMW400/ET-EMW500), Horizontal: ±40 ° (±0 ° with ET-EMU100, ±8 ° with ET-EMW200/ET-EMW300, ±15 ° with ET-EMW400/ET-EMW500). When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals -> SDI IN | BNC x 1: 3G/HD-SDI input |
| Terminals -> HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input), CEC supported |
| Terminals -> SERIAL/MULTI-PROJECTOR SYNC IN | D-sub-9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals -> SERIAL/MULTI-PROJECTOR SYNC OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals -> REMOTE 1 IN | D-sub 9-pin (female) × 1 for external control (parallel) |
| Terminals -> REMOTE 2 IN | M3 x 1 for wired remote control |
| Terminals -> REMOTE 2 OUT | M3 x 1 for link control (for wired remote control) |
| Terminals -> DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLinkTM [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input) |
| Terminals -> LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink [Class 2], Art-Net) |
| Terminals -> DC OUT | USB connector (Type A) x 1 for power supply (Output: 5 V / 2 A) |
| Terminals -> USB TYPE A | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory |
| Power supply | AC 100–240 V, 50/60 Hz |
| Maximum power consumption | 800 W (8.1–3.3 A) (810 VA) |
| On-mode power consumption (Operating mode) -> Normal | [NORMAL] 720 W (AC 100–120 V), 690 W (AC 200–240 V) |
| On-mode power consumption (Operating mode) -> Quiet | [QUIET] 460 W (AC 100–120 V), 445 W (AC 200–240 V) |
| Cabinet materials | Molded plastic |
| Filter | Included |
| Estimated filter maintenance cycle | approx. 20,000 hours |
| Operation noise -> Normal | 35 dB [NORMAL] |
| Operation noise -> Quiet | 30 dB [QUIET] |
| Dimensions (W x H x D) | Approx. 650 x 185 x 440 mm (25 19/32˝ x 7 9/32˝ x 17 5/16˝) (excluding feet and protrusions),650 x 211 x 440 mm (25 19/32˝ x 8 5/16˝ x 17 5/16˝) (excluding protrusions, with feet at shortest position) |
| Dimensions (W x H x D) -> Width (not including protruding parts) | Approx. 650 mm (25 19/32˝) |
| Dimensions -> Width (including protruding parts) | Approx. 650 mm (25 19/32˝) |
| Dimensions -> Height (not including protruding parts) | Approx. 185 mm (7 9/32˝) |
| Dimensions -> Height (including protruding parts) | Approx. 211 mm (8 5/16˝) |
| Dimensions -> Depth (not including protruding parts) | Approx. 440 mm (17 5/16˝) |
| Dimensions -> Depth (including lens) | Approx. 440 mm (17 5/16˝) |
| Weight | Approx. 22.5 kg (49.6 lbs) |
| Operating environment -> Operating temperature | 0–45 °C (32–113 °F) |
| Operating Environment -> Operating humidity (No condensation) | 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro, Projector Network Setup Software, Smart Projector Control for iOS/Android |
