Panasonic PT-REQ15 15,000lm 4K 1-Chip DLP Projector
Product Highlights:
- Spectacular Visuals on a Grand Scale
- Effortless Workflow and Expanded Capabilities
- Supremely Reliable Maintenance-Free Operation
Description
Panasonic PT-REQ15 1-Chip DLP 4K Laser Projector
The Panasonic PT-REQ15 1-Chip DLP 4K Laser Projector is designed to streamline productions and expand the endless possibilities of entertainment by delivering exceptional, highly engaging immersive experiences with up to 15,000lm brightness, 4K resolution, and 240 Hz projection capability.
Inspire Wonder with Spectacular 4K Visuals
Deliver smooth 4K1 images, unlock 2K/240 Hz projection with a latency of 6 ms or less, and merge digital and analog elements to gamify your attraction with our real-time tracking projection-mapping SDK. With Evolved Dynamic Contrast and Rich Color Enhancer, immersive sensory production is within reach.

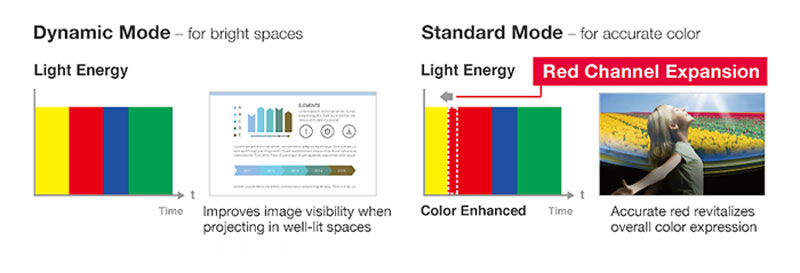

Rich Color Enhancer Brings the Creator’s Work to Life
Rich Color Enhancer is an original 2-mode color optimization technology. Dynamic Mode balances brightness and color for clear visibility in bright environments. Standard Mode optimizes color reproduction by expanding red-channel output for vibrant red expression. This is critical for the accurate and immersive reproduction of artwork and other color-rich content.
Remove Banding with Gradation Smoother
Gradation Smoother reduces banding in shaded color gradients, which can become evident in images lacking sufficient color bit depth. Use the projector remote to select from three correction levels depending on banding severity or disable it when unneeded. Gradation Smoother is a lifesaver when banding is apparent, and there’s no time to re-edit the content.
Compact Design Simplifies Complex Workflows
The light and compact REQ15 Series simplifies complex layouts with labor-saving innovations. It delivers full brightness on AC 100–240 V power, suits new optional lenses with throw ratios from 0.308:1, ET-FMP50 Series media processors, and function boards for the Intel SDM standard-compatible SLOT to support AVoIP transmission.
Supreme Reliability for Long-term Operation
With an optical engine and laser light-source module that conform to the IP5X Dust Protected (IEC 60529) standard and liquid cooling to support 20,000 hours of maintenance-free projection, these rugged projectors secure unrivaled stability and reliability in tough commercial environments.
New Screen Marker Function
The REQ15 adds a screen marker function that simplifies adjustments and measurements. The Line Frame tool supports adjustable V/H margin lines that enable projector pre-adjustment before peripheral equipment is set up and a crosshair marker for fixed-point measurement.

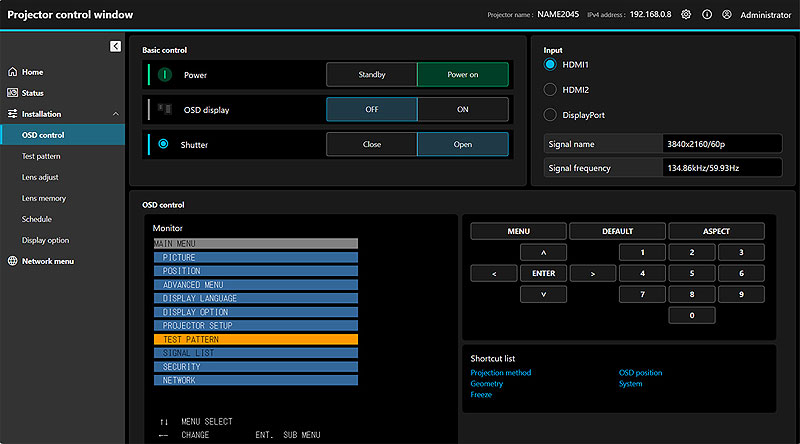

Updated Web Control Interface
The REQ15 features an updated Web Control UI supporting dark and light modes. Information within the UI is reorganized for improved visibility. You can set projector command schedules such as power on/off, view the projector’s OSD settings menu on screen, and customize device status info on the home screen. Other updates include adaptive screen sizes and enhance mobile versions, empowering efficient management.
To view more Panasonic Products
View more LCD and Laser Projectors
Projector Types
Specifications
| PT-REQ15 DLP Projector Specifications | |
| Projector type | 1-Chip DLP projector |
| Display method | DLP chip x 1, DLP projection system |
| Display Device -> Panel size | 0.8 in. diagonal (16:10 aspect ratio) |
| Display Device -> Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diode |
| Light output | 15,000 lm |
| Light output (ANSI) | 15,000 lm |
| Light output (Center) | 15,500 lm (Center) |
| Time until light output declines to 50 % -> NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 % -> ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 % -> QUIET | 20,000 hours [QUIET] |
| Resolution | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
| Contrast Ratio (typ.) | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size (diagonal) | 70–700 inches (with supplied lens) |
| Center-to-corner zone ratio *3 | 90% |
| Lens | Optional powered zoom/focus lenses |
| Lens shift -> Vertical (from center of screen) | ±60 % (with ET-C1W400/W500/S600/T700), ±50 % (with ET-C1W300/U100) |
| Lens shift -> Horizontal (from center of screen) | ±29 % (with ET-C1W400/W500/S600/T700), ±23 % (with ET-C1W300/U100) |
| Keystone correction range | Vertical: ±40 ° (±5 ° with ET-C1U100; ±10 ° with ET-C1W300; ±16 ° with ET-C1W400; ±22 ° with ET-C1W500) Horizontal: ±40 ° (±3 ° with ET-C1U100; ±5 ° with ET-C1W300; ±10 ° with ET-C1W400; ±15 ° with ET-C1W500) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals -> HDMI IN | HDMITM x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals -> DisplayPort IN | DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input) |
| Terminals -> MULTI PROJECTOR SYNC IN | BNC x 1 |
| Terminals -> MULTI PROJECTOR SYNC OUT | BNC x 1 |
| Terminals -> SERIAL IN | D-sub-9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals -> SERIAL OUT | D-sub-9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals -> REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals -> REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| Terminals -> REMOTE 2 IN | D-sub-9-pin (female) x 1 for external control (parallel) |
| Terminals -> LAN | RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals -> DC OUT | USB Type A x 1 (for power supply, DC 5 V, 2 A) |
| Terminals -> USB TYPE A | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory |
| Terminals -> SLOT | Open slot for function boards, Intel SDM standard-compatible |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100–240 V, 50/60 Hz |
| Maximum power consumption | 1,140 W (11.5–4.7 A) (1,150 VA) (Power consumption is 1,090 W at AC 200–240 V) |
| On-mode power consumption (Operating mode) -> Normal | [NORMAL] 985 W (AC 100–120 V), 940 W (AC 200–240 V) |
| On-mode power consumption (Operating mode) -> Eco | [ECO] 765 W (AC 100–120 V), 735 W (AC 200–240 V) |
| On-mode power consumption (Operating mode) -> Quiet | [QUIET] 760 W (AC 100–120 V), 730 W (AC 200–240 V) |
| Cabinet materials | Molded plastic |
| Filter | No |
| Operation noise -> Normal | 42 dB [NORMAL] |
| Operation noise -> Eco | 42 dB [ECO] |
| Operation noise -> Quiet | 38 dB [QUIET] |
| Dimensions (W x H x D) | PT-REQ15: 498 x 212 x 648 mm (19 19/32˝ x 8 11/32˝ x 25 1/2˝) (With feet at shortest position) PT-REQ15L: 498 x 212 x 538 mm (19 19/32˝ x 8 11/32˝ x 21 3/16˝) (With feet at shortest position) |
| Dimensions (W x H x D) -> Width (not including protruding parts) | 498 mm (19 19/32˝) |
| Dimensions -> Height (including protruding parts) | 212 mm (8 11/32˝) |
| Dimensions -> Depth (not including protruding parts) | 538 mm (21 3/16˝) |
| Weight | PT-REQ15: Approx. 28.7 kg (63.27 lbs) (with supplied lens) PT-REQ15L: Approx. 27.0 kg (59.52 lbs) (without lens) |
| Operating environment -> Operating temperature | 0–45 °C (32–113 °F) |
| Operating Environment -> Operating humidity (No condensation) | 10–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android |
| Control function via LAN | Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMX DD, and PJLink (Class 2) |
