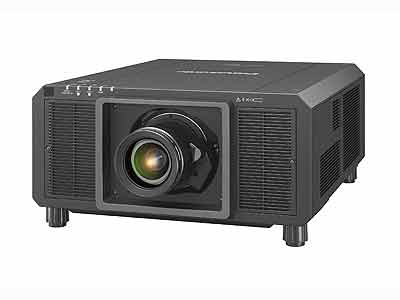

Panasonic PT-RZ21KE Laser 3-Chip 4K DLP Projector
Description
Click to rate this post!
[Total: 0 Average: 0]
Panasonic PT-RZ21KE 3-Chip DLP 20,000 Lumens Laser Projector
Panasonic PT-RZ21KE is the smallest 20 000 lumens Solid Shine Laser Projector. Stunning image quality in a compact body designed for large venues. Exchangeable lens, 24/7 Operation, Digital link, Geometric Adjustment, 360° flexible installation.
Panasonic’s groundbreaking PT-RZ21K Series 3-Chip DLP SOLID SHINE Laser projector combines flagship picture quality produced by the PT-DZ21K/DZ21K2 Series projector—current leader in multi-screen events staging—with the compact size and incredible durability of our mid-range PT-RZ970 Series laser projector.
Panasonic PT-RZ21K Projector is the world’s first 20,000 lm laser projector to feature a filterless cooling system and shielded optical unit, delivering unassailable reliability in dusty conditions. Handling is effortless with just two technicians. With 20,000-hour maintenance-free operation and software for expedited multi-screen mapping calibration, the rugged yet lightweight PT-RZ21K Series delivers class-beating color reproduction with dramatically reduced running costs, making it the new first choice for event professionals.
With the DZ21, Panasonic created a reference model for large venues and rental projectors. The RZ21K builds on the DZ21’s heritage to give you improved performance along with the inputs and menu layout you’re familiar with. It works perfectly with the DZ21 and DZ21K2 thanks to the Mix&Match feature.
Features:
- Laser 3-chip DLP, smallest and lightest 21 000 center lumens, WUXGA
- Lamp-free laser projection with dust resistant liquid cooling system for 20000 hours of maintenance-free operation
- Real maintenance-free projection with filter-less design and no need for smoke-filter
- Un-interrupted projection with dual-light source and built-in redundancy inputs
- Geometric Manager Pro, color matching and edge blending
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| General Specifications | |
| Power Supply | AC 200 V–240 V, 7.7 A, 50/60 Hz |
| Power Consumption | 1,510 W (0.3 W with Standby Mode set to ECO, 4 W with Standby Mode set to NORMAL) |
| DLP Chip | Panel Size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) |
| DLP Chip | Display Method | DLP chip x 3, DLP projection system |
| DLP chip | Number of Pixels | 6,912,000 (1920 x 1200 x 3) pixels |
| Refresh rate | 120 Hz |
| Lens | Optional (no lens included with this model) |
| Light Source | Laser Diode (Laser class: Class 1)(Class 3R for US models), Light source life: 20,000 hours (NORMAL Mode, brightness decreases to approx. 50 %) / 24,000 hours (ECO Mode, brightness decreases to approx. 50 %) |
| Screen size [diagonal] | 1.78–25.4 m (70–1,000 in) with 16:10 aspect ratio 1.78–15.24 m (70–600 in) with the ET-D75LE8, 16:10 aspect ratio 3.05–15.24 m (120–600 in) with the ET-D75LE95, 16:10 aspect ratio |
| Brightness | 21,000 lm (Center) / 20,000 lm |
| Center-to-corner zone ratio | 90% |
| Contrast | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 1920 x 1200 pixels |
| RGB | fH: 15−100 kHz, fV: 24−120 Hz, dot clock: 162 MHz or less |
| Video/YC | fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM) |
| Time until light output declines to 50 % | 20,000 hours (NORMAL) /24,000 hours (ECO) |
| Optical axis shift (from center of screen)| Vertical |
±55 % (±44 % with ET-D75LE6, +68 – +78 % with ET-D75LE95) (powered) |
| Optical axis shift (from center of screen)| Horizontal |
±20 % (±15 % with ET-D75LE6, ±12 % with ET-D75LE95) (powered) |
| Keystone Correction Range | Vertical: ±40° (± 22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±15° |
| Keystone Correction Range with optional ET-UK20 Upgrade Kit |
Vertical: ±45° (± 40° with ET-D75LE10/20, ±22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±40° (±15° with ET-D75LE50/6), Up to a total of ±55° during simultaneous horizontal and vertical correction |
| Installation | Horizontal/vertical, free 360-degree installation |
| Cabinet Materials | Molded plastic |
| Dimensions (W x H x D) | 598 × 270 × 725 mm (23 17/32˝ x 10 5/8˝ x 28 17/32˝) (not including protruding parts) |
| Weight | 49.0 kg (108 lbs) |
| Operation noise | 46 dB |
| Operating Environment | Operating temperature: 0–50 °C (32–122 °F)*6; Operating humidity: 10–80 % (no condensation) |
| Applicable Software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro Software (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Upgrade Kit), Smart Projector Control |
