Panasonic PT-RZ34K Laser 3-Chip 4K DLP Projector
Description
Click to rate this post!
[Total: 0 Average: 0]

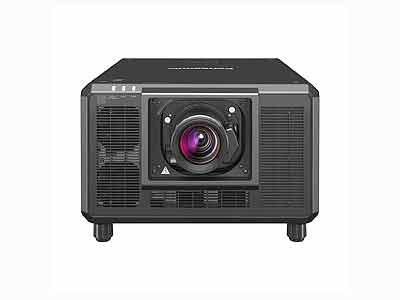

Panasonic PT-RZ34K 3-Chip DLP 4K Large Venue Laser Projector
Panasonic PT-RZ34K Projector is a lamp-free laser projection with dust-resistant liquid cooling system for 20000 hours maintenance-free operation. A combination of two blue and one red laser expands color-space reproduction by 114 %*3 over the PT-RQ32K. Vivid red and pure blue reproduction heightens realism for an immersive experience and takes high-resolution content to the next level. Redesigned airflow path, cooling system, and finless radiator reinforce reliability. Dynamic Digital Control regulates red laser output and cooling for consistent image quality.
Features:
- Laser 3-chip DLP, 32.000 lumens (centre), WUXGA
- Lamp-free laser projection with dust resistant liquid cooling system for 20000 hours of maintenance-free operation
- Smart Projector Control with NFC for mobile access to network configuration such as IP address setup
- Preactivated Upgrade Kits for Geo Pro Software
- Two blue and one red laser module expand color-gamut reproduction
- Information Monitor
- Spellbinding Picture Quality
- Gradation Smoother Reduces Banding
- Flexible Black-Level Adjustment
- Stable Design for Reliable Operation
- Backup Input Guarantees Picture Display
- Multi-Laser Drive Engine with Failover Redundancy Circuits
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| General Specifications | |
| Projector type | 3-Chip DLP projector |
| DLP Chip | Panel Size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) |
| DLP Chip | Display Method | DLP chip x 3, DLP projection system |
| DLP chip | Number of Pixels | 2,304,000 (1920 x 1200 pixels) x 3 |
| Light Source | Laser diodes (Blue LD, Red LD) |
| Light output | 30,500 lm/32,000 lm (Center) |
| Time until light output declines to 50 % | 20,000 hours (Normal), 24,000 hours (Eco), 26,000 hours (Quiet) |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio | 20,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| Screen size [diagonal] | 1.78–25.4 m (70–1,000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95, 5.08–15.24 m (200–600 in) with ET-D3LEU100/ET-D3LEW200 |
| Center-to-corner zone ratio | 90% |
| Lens | Optional (no lens included with this model) |
| Lens shift | Vertical(From the origin point of the lens mounter) | ±55 % (+78 %, +68 % with ET-D75LE95, ±48 % with ET-D3LEW200, ±44 % with ET-D75LE6/ET-D3LEW60) (powered) |
| Lens shift | Horizontal(From the origin point of the lens mounter) | ±20 % (±15 % with ET-D75LE6/ET-D3LEW60/ET-D3LEW200, ±12 % with ET-D75LE95, +25 %, 0 % with ET-D3LEU100) (powered) |
| Keystone Correction Range | Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95),
Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| Terminals | SDI IN | BNC x 1: 3G/HD-SDI input |
| Terminals | HDMI In | HDMI x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input) |
| Terminals | DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP) (Single-link only) |
| Terminals | MULTI PROJECTOR SYNC IN | – |
| Terminals | MULTI PROJECTOR SYNC OUT | – |
| MULTI PROJECTOR SYNC IN terminal/3D SYNC 1 IN/OUT terminal (dual purpose) |
BNC x 1 |
| MULTI PROJECTOR SYNC OUT terminal/3D SYNC 2 OUT terminal (dual purpose) | BNC x 1 |
| Terminals | Serial In | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | Serial Out | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| Terminals | REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control |
| Terminals | REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT compliant), 100Base-TX, compatible with Art-Net, PJLink (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input |
| Terminals | LAN | RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | USB | USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series)/USB Memory Stick |
| Terminals | DC OUT | USB Type A x 2 (for power supply, DC 5 V total of 2 A) |
| Terminals | Expansion slot | SLOT (one terminal, vacant) for interface boards, SLOT NX compatible |
| Power Supply | AC 200 V–240 V (Light output will decrease when using the projector with AC 100 V to AC 120 V) |
| Power Consumption | 2,450 W (Standby: 13 W) |
| Cabinet Materials | Molded plastic |
| Operation noise | 49 dB (Normal), 46 dB (Quiet) |
| Dimensions (W x H x D) | Approx. 598 x 353 x 780 mm (23 17/32˝ x 13 29/32˝ x 30 23/32˝) (not including protruding parts) |
| Weight | 68.6 kg (151.2 lbs) |
| Operating Environment | Operating temperature: 0–45 °C (32–113 °F)*7, operating humidity: 10–80 % (no condensation) |
| Applicable Software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android |
