Panasonic PT-VZ585N WUXGA LCD Projector
Description
Click to rate this post!
[Total: 0 Average: 0]

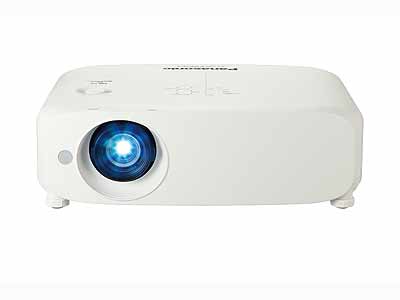

Panasonic PT-VZ585N 5,000 lm WUXGA LCD Projector with Wi-Fi
A winning formula for imaging brilliance is complemented by a high 16,000:1 contrast ratio and With a brightness of up to 5,500 lm. Panasonic PT-VZ585N features resolutions from XGA to WUXGA, bringing native Full HD video to big screens in small spaces. This gives pin-sharp, detailed images for an immersive viewing experience. With the color adjustment and correction function, you can easily correct for slight variations in the color reproduction range when using multiple projections, particularly in a side-by-side configuration.
Features:
- LCD, 5,000 lumens, WUXGA
- High brightness and high resolution in a compact and lightweight body
- Various Wireless Function >> Wi-Fi Certified Miracast with Moderator mode >> Easy Wireless pairing support
- Long lamp and filter replacement cycle up to 7,000 hours
- 16,000:1 contrast ratio
Bring native Full HD video to big screens in small places. Designed for education and corporate applications
- Portable projectors with increased brightness
- Increased contrast ratio gives even sharper images
- Filter lasts twice as long
- Easier to connect wirelessly
- Flexible wired installation
Simple wireless connection with Plug and Share
Thanks to Plug and Share, it’s easier than ever to project wirelessly with the PT-VZ580 series. Plug and Share give you the option of connecting to the projector with nothing more than a USB stick. Simply plug a USB stick into the projector and the configuration files are automatically copied to it – there’s no need to key in the network information. Then plug the USB into your computer and run Plug and Share straight from your USB stick – without having to install it on your computer.
Share your screen from your mobile with Miracast
Several projectors in the PT-VZ580 Series come with Advanced Miracast for an improved wireless connection. Your Android device forms a direct Wi-Fi connection with the projector so you can discover it and connect to share your screen. With Advanced Miracast it takes a third less time to connect and the connectivity ratio is increased by 40% (compared to the VZ57N series). The projectors are the first series to support Moderator Mode and the Cut-In function, making them perfect for collaborating in meetings.
Flexible installation
Adding to the range of options for connecting wirelessly, a wired connection is also more flexible for this series. You can connect with a single DIGITAL LINK cable with extended reach (up to 150m), giving you more possibilities when installing the projectors. The 1.6x zoom lens gives you the flexibility to project from a wide range of distances, making it easier to install the unit even when space is limited.
Easy to see, even in bright rooms
Daylight View Basic technology makes it possible to see images clearly, even in brightly-lit rooms. A built-in sensor measures the light level in the room and the technology optimizes the halftone color and brightness levels accordingly.
Quieter than writing with a pencil
In quiet mode, the PT-VZ580 series make less noise than someone writing with a pencil. The quiet design keeps noise levels down to 29 dB, so the sound of the cooling fan is hardly noticeable and the audience won’t be distracted during meetings and presentations.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| General Specifications | |
| Power Supply | AC 120 V, 50/60 Hz (North America), AC 110 V, 60 Hz (Taiwan), AC 100−240 V, 50/60 Hz (other countries) |
| Power Consumption | 400 W [North America], 410 W [other countries] |
| Standby power consumption | |
| Standby Mode (ECO) | 0.3 W [North America, Taiwan], 0.5 W [other countries] |
| Standby Mode (Normal) | 14 W |
| LCD panel | |
| Panel Size | 0.64 inches (1.63 cm) (16:10 aspect ratio) |
| Display Method | Transparent LCD panel (× 3, R/G/B) |
| Pixels | 2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels |
| Lens | 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus F 1.60–2.12, f 15.30–24.64 mm |
| Lamp | 280 W UHM lamp × 1 |
| Screen size [diagonal] | 30−300 inches |
| Brightness | 5,000 lm (input signal: PC, lamp power: Normal, picture mode: Dynamic, Daylight View: OFF, Auto Power Save: OFF) |
| Contrast | 16,000:1 (all white/all black) (input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: On, Daylight View: OFF, Auto Power Save: OFF) |
| Resolution | 1920 x 1200 pixels |
| Supported RGB signal | XGA–WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i |
| Optical axis shift (from center of screen)| Vertical |
0 ‒ +44 % (manual) U/D ratio 17:1 (when on top end) |
| Keystone Correction Range | Vertical: maximum ±25° (auto/manual, input: WUXGA), Horizontal: maximum ±30° (manual, input: WUXGA) |
| Installation | Front ceiling / Front desk / Rear ceiling / Rear desk |
| Built-in speaker | 4.0 cm (1 1/16″ ) round shape × 1, output power: 10 W (monaural) |
| Operation noise | 37 dB (lamp power: Normal), 35 dB (lamp power: ECO1), 29 dB (lamp power: ECO2) |
| Cabinet Materials | Molded plastic |
| Dimensions (W x H x D) | 389 × 125*4 × 332 mm (15 5/16″ × 4 29/32″ *4 × 13 1/16″ ) |
| Weight | Approximately 4.9 kg (10.8 lbs) |
| Operating Environment | Operating temperature: 0−40 °C (32−104 °F)*5 (altitude: less than 1,200 m [3,937 ft]), 0−30 °C (32−86 °F) (altitude: 1,200−2,700 m [3,937−8,858 ft] ), Operating humidity: 20−80 % (no condensation) |
| Supplied accessories | Wireless remote control unit × 1, Power cord with power cord holder × 1 (× 2 for UK and Asia), Software CD-ROM × 1 (Operating instructions, Multi Monitoring and Control Software, Logo Transfer Software, Wireless Manager ME software), Batteries (AAA type × 2), RGB cable × 1, Lens cap × 1 |
| Built-in wireless LAN | Standard: 2.4 GHz: IEEE802.11b/g/n, 5.0 GHz: IEEE802.11a/n Infrastructure Mode: WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), 128-bit/64-bit WEP, WPA-EAP/WPA2-EAP (PEAP [MS-CHAPv2/GTC]/EAP-FAST [MS-CHAPv2/GTC]/EAP-TTLS [MD5/MS-CHAPv2], 128-bit/64-bit), Miracast |
