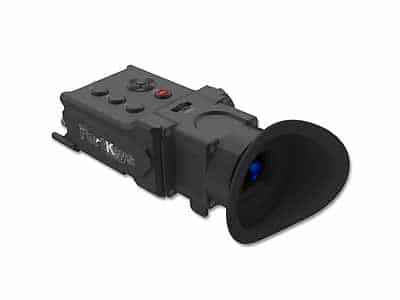

Portkeys OEYE-RED EVF with RED Camera Menu Control

Display:

• Color/Monochrome: Color
• Display Size: 0.71″ / 1.8 cm
• Screen Resolution: 1920 x 1080
• Aspect Ratio: 16:09
• Touchscreen: No
• Maximum Brightness: 200nit
• Contrast Ratio: 100,000:1
• Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
• Pixels Per Inch (PPI): 3102 ppi
• Image Controls: Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra

I / O:

Video 1 x BNC (3G-SDI) Input

1 x BNC (3G-SDI) Loop Output
1 x HDMI Type A Input
1 x HDMI Type A Loop Output

• Video Format: HDMI
• DCI 4K: 24
• UHD 4K: 30 / 29.97 / 25/24 / 23.98
• 1080p: 60/59.94/50/30/29.97/25/24/23.98
• 1080PsF: 30/29.97/25/24/23.98
• 1080i: 60/59.94/50
• 720p: 60/59.94/50
• 576p: 50
• 576i: 50
• 480p: 60/59.94
• 480i: 60 / 59.94
• SDI (8-Bit 4:2:2 YUV)
• 1080p: 60/59.94/50
• SDI (8-Bit 4:4:4/4:2:2 RGB, YUV)
• 1080p: 60/59.94/50/30/29.97/25/24/23.98
• 720p: 60/59.94/50
• Camera Connection: 5-pin Aviation Connector
• Power Cable: 1 x D-TAP to 4-pin Aviation Connector

Optics:

• Diopter Correction: -3.0 to +8.0

Power

• DC Input Power: 7 to 24 VDC
• Power Consumption: 10 W

General:

• Mounting: 1 x Rosette
• Material of Construction: Aluminum
• Dimensions: 7.1 x 2.9 x 2.7″ / 180 x 72.4 x 69.7 mm, Including
• Weight: 14.1 oz / 385g

• 1 x Power Cable (4-pin Aviation Connector – D-TAP)
• 1 x Camera Connection Cable (5-pin Aviation Connector – 5-pin Aviation Connector)
• 1 x Control Cable(4-pin LEMO – 3-pin Aviation Connector)
• 1 x OLED-RED Hub
• 1 x L-type Inner Allen Key Diameter 4.7mm
• 1 x 7-inch Safety Plastic Box
• 1 x SDI Cable
• 1 x Pipe Clamp
• 1 x Warm Prompt
• 1 x U Disk(Manual, 3D LUTs, Firmware Inside)
