Roland UVC-02 Web Presentation Dock: Look and Sound Your Best in Video Meetings and Presentations

Video streaming for business and pleasure has become a regular part of life. But you’ll never look and sound your best with the webcam and microphone on your average computer. The Roland UVC-02 Web Presentation Dock helps you bridge the gap, providing a simple and affordable way to level up your video presentations with higher-quality audio/visual gear and more control.

Present with Confidence

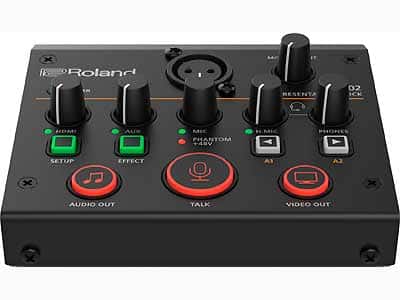

The Roland UVC-02 is a compact broadcast control center that fits comfortably on your desktop. It allows you to connect a high-quality HDMI camera, pro microphone, and other audio sources and send them directly to meeting and streaming platforms on your computer via a single USB cable. And with an array of hands-on knobs and switches at your fingertips, you can easily control the action without ever touching your mouse or computer keyboard.

Plug In and Play

Once connected to your computer via USB, the UVC-02 is instantly recognized as a webcam and audio source, with no drivers or setup required. That means it’s ready to go with popular web meeting software such as Zoom, Microsoft Teams, Webex by Cisco, or any application that uses a webcam as an A/V source for streaming or recording.

The Ultimate Webcam Upgrade

Connect just about any HDMI-compatible camera and instantly elevate the image quality over your built-in or USB webcam. Many standalone cameras offer HDMI output, from action and point-and-shoot cameras to higher-grade mirrorless and DSLR models. They have much better lenses than any webcam and often include zoom capability to frame your perfect shot.

Superior Image Quality

Improve color, sharpness, and focus to get a cinematic look.

Fast, No-Fuss Setup

Shows up like a webcam—no special software required.

Get Ready to Sound Great

There’s nothing worse than bad audio quality in an online meeting. The UVC-02 ensures your sound starts off strong and stays that way. With a tiny studio-grade mixer and four inputs backed by Roland’s pro audio technology, you have a whole new range of sonic superpowers at your command.

Works with Professional Mics

Pro broadcast and recording studios choose a specific microphone to get the best out of a performer’s voice. Now, you can choose the mic type that’s right for you and connect it via the XLR input on the UVC-02. Phantom power is also available, allowing you to use a studio-grade condenser mic for the very best sound quality.

Sound Monitoring Made Simple

The UVC-02 has a dedicated headphone jack, as well as a stereo monitor output for connecting to external speakers or a recorder. And both have dedicated panel knobs that allow you to reach out and control the listening level with a quick twist. The headphone jack also supports the inline mic on a standard set of earbuds, and there’s a dedicated level knob for this as well.

Love the Sound of Your Voice

Just like a broadcast studio, the UVC-02 includes a pro-quality equalizer and audio effects to make your voice sound great. Convenient templates are included to get you started, complete with easy controls to tweak the sound until it’s just right

Sound Proofing as Standard

With advanced echo cancellation and noise suppression on board, the focus is always on you—and not on distracting background sounds like domestic bustle and traffic. Version 2.0 adds a powerful option to improve the sound in challenging environments with a lot of ambient noise.

Customizable Control

Streamline your sessions even further with dedicated UVC-02 software for macOS and Windows. Choose two functions that you use most often—such as PowerPoint and Keynote slide advance* or a sound effect trigger—and assign them to the A1 and A2 buttons for one-touch operation.

To view more Roland products

Find more Encoder products

Other Site:

UVC-02 Web Presentation Dock

Features

Click to rate this post!

[Total: 1 Average: 5]

Convenient and affordable desktop docking station to upgrade your business streaming with pro-level audio and video
Inputs for a DSLR or other high-quality camera, an XLR microphone, and stereo audio sources
HDMI video input supports embedded sound and features automatic scaling for different video resolutions
Studio-grade sound with Roland’s acclaimed digital audio technology
Plug-and-play operation—automatically appears as a webcam and audio source in your favorite streaming software
Enhance your streams with professional audio processing, sound effects, and the unique Voice Change effect
Hands-on control of volume levels plus audio and video muting
Assignable buttons for customizable control, configurable with free UVC-02 software for macOS and Windows
Version 2.0 New adaptive noise suppression option for improved sound in challenging environments

Specifications

Click to rate this post!

[Total: 1 Average: 5]

VIDEO:

Input Connectors: HDMI IN : HDMI type A
* HDCP not Supported
* Multi-format Supported
Input Formats: 480/59.94p, 576/50p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
FHD (1920 x 1080) 60 Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
Output Connectors: USB STREAM: USB 3.0 Type-B
USB Video Output Format: YUY2 (Uncompressed), Motion JPEG (Compressed)
USB Video Output Resolution: 1920 x 1080, 1280 x 720, 640 x 480
* Maximum frame rate is 60 fps.

Audio:

Audio Processing: Sample Rate 48 kHz, 24 bits
Analog Connectors:MIC: XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
HEADSET: Stereo miniature phone type (CTIA, PLUG-IN power)
AUX IN: Stereo miniature phone type
MONITOR OUT: Stereo miniature phone type
Digital Connectors: HDMI IN: HDMI Type A
USB STREAM: USB 3.0 Type-B
Nominal Input Level: MIC IN: -54 to -14 dBu (Maximum input level: +4 dBu)
HEADSET: -20 dBu (Maximum input level: -2 dBu)
AUX IN: -10 dBu (Maximum input level: +8 dBu)
Nominal Output Level: MONITOR OUT: -10 dBu
HEADSET: 9 mW + 9 mW (32 ohms load)
Input Impedance: MIC IN: 5.8 k ohms
AUX IN: 10 k ohms
HEADSET: 1 k ohms
Output Impedance: MONITOR OUT: 1 k ohms
HEADSET: 22 ohms
Digital Audio Format: HDMI IN: Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
USB STREAM: Linear PCM, 48 kHz, 16 bits, Stereo
Audio Effects: Anti-feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay
Audio File Player: Number of tracks: 2
Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
Maximum Time: 5 seconds/track

OTHERS:

Other Functions: MIC Mute (TALK button)
Audio Mute (AUDIO OUT button)
Video Off (VIDEO OUT button)
Slideshow Control
Power Supply: Supplied from the computer via USB
Current Draw: 900 mA (4.5 W)
Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions: 124 (W) x 117 (D) x 52 (H) mm(4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches)
Weight (excluding Cables): 460 g(1 lb 0.3 oz)
Accessories: Leaflet “Read Me First”, USB 3.0 Cable
