Teradek Bolt 4K LT 1500 3G-SDI TX/RX Kit
USD 6,227.00 – USD 8,207.00 excl. Tax excl. Tax
Teradek Bolt 4K LT 1500 3G-SDI/HDMI Wireless Receiver
USD 3,406.00 – USD 3,604.00 excl. Tax excl. Tax
Teradek Bolt 4K LT 1500 3G-SDI/HDMI Wireless Transmitter
USD 3,406.00 excl. Tax
Product Highlights
- Includes: 1 TX
- Video: Up to 4Kp30 / 1080p60
- Range: 1500 ft.
- Inputs: HDMI 2.0, 3G-SDI
- Outputs: 3G-SDI
- Multicast: Up to 6 RX
- Compatibility: All Bolt 4K Series RX Devices
| Weight | 1 kg |
|---|
This model has been discontinued
Description
Click to rate this post!
[Total: 0 Average: 0]

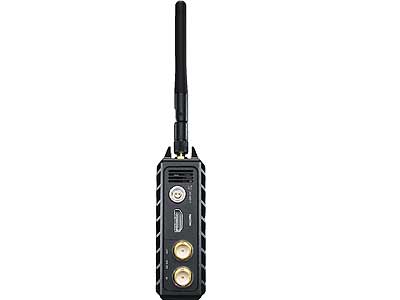

Bolt 4K LT 1500 3G-SDI Transmitter
Teradek Bolt 4K LT 1500 3G-SDI Transmitter is a real time wireless video transmitter that supports video signals up to 4Kp30 via HDMI at a line-of-sight distance of up to 1500ft (457m) with no image delay. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family.
Zero-Delay 4K Wireless Video
Transmit images up to 4Kp30 via HDMI at a line-of-sight distance of up to 1500ft (457m) with no image delay (>0.001sec).
Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
Output: 1x 3G-SDI (up to 1080p60)
True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Send Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.
Improved Wireless Performance
Reliable signal transmission over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.
Send Signal up to 6 Receivers
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.
Lightweight Body with Versatile Mounting
TX Mounting: M3 / ¼”-20
Universal Cross-Compatibility between all Bolt 4K Devices
Send signal to any Bolt 4K series RX device for expanding workflow requirements.
Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.
Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Specifications | |
|
Video |
|
| Video Inputs | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle |
| Video Outputs | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) |
| Sdi Ancillary Data Support | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Delay Tx To Rx | <0.001sec |
| Input Cross Conversion | Yes, HDMI to SDI |
|
Supported Resolutions |
|
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) |
|
Video Processing |
|
| Video Compression | Visually Lossless |
| Color Correction | None |
|
Audio Processing |
|
| Audio Format | 48kHz 24-bit PCM |
|
Inputs |
|
| Audio Input | Embedded SDI/HDMI Audio Input (2 Channel) |
|
Physical |
|
| Dimensions | 60mm x 103mm x 33mm |
| Weight | 206g (7.3oz) |
| Construction | Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4″x20 and M3 holes |
|
Interfaces |
|
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Mobile App | Bolt App |
| Desktop App | Bolt Manager application for OSX & Windows |
| Usb Interface Functionality | Upgrade via Micro-USB |
| External Control | Via Bolt App |
| Bluetooth | 2.4 GHz |
|
Network |
|
| Antennas | 2 External 2dBi antennas (included) |
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
| Number Of20 Mhz Channels | 25 (region dependent) |
| Number Of40 Mhz Channels | 13 (region dependent) |
| Channel Bandwidth | 20MHz, 40MHz |
| Rf Channel Selection | Auto, Manual |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 19 dbm EIRP (2 external 2dBi antennas) (<80mW transmit power) |
| Rf Sensitivity | 2 External 2dBi antennas (included) |
| Range | Up to 1500 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
|
Power |
|
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Sony/Canon dual battery plate |
| Nominal Power Consumption | 9 Watts |
|
Environmental |
|
| Operating Temperature | 0-40℃ |
In The Box
Click to rate this post!
[Total: 0 Average: 0]
- 1 x Bolt 4K LT TX 1500
- 1 x 2pin Connector to PowerTap Cable (P-Tap/D-Tap) – 18in
- 1 x 3G-SDI (BNC to BNC) Cable – 10in
- 1 x Micro-USB (5pin) to USB Cable (Firmware Cable) – 36in
- 1 x Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable – 18in
- 1 x 18 Watt AC Adapter Cable (2-Pin Connector) – 6ft
- 2 x TX/RX Antenna (2dBi WIFI 2.4/5.8GHz, Small)
