Teradek Bolt 4K LT 3G-SDI MAX TX/RX Deluxe Set
USD 13,157.00 excl. Tax
Product Highlights
- Video: Up to 4Kp30
- Range: 3000ft (Standard Mode) up to 5000 ft. (Broadcast Mode)
- Inputs: 3G-SDI, HDMI 2.0
- Outputs: 3G-SDI, HDMI 2.0
- Multicast: Unlimited with Broadcast Mode
- Compatibility: Bolt 4K Family
| Weight | N/A |
|---|---|
| Choose Product Variants |
Bolt 4K LT MAX TX/RX Deluxe Set GM ,Bolt 4K LT MAX TX/RX Deluxe Set VM |
This model has been discontinued
Description
Click to rate this post!
[Total: 1 Average: 5]

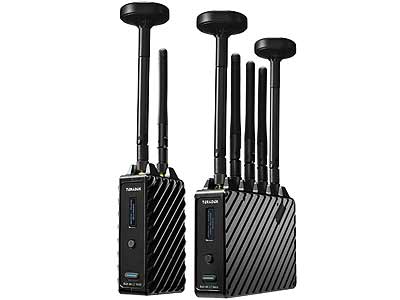

Teradek Bolt 4K LT 3G-SDI MAX Deluxe Set Kit(Gold Mount, V-Mount)
Teradek Bolt 4K LT MAX TX/RX (Deluxe Set, Gold Mount, V-Mount) is a real time wireless video transmission system that supports video signals up to 4Kp30 via 4Kp30 via HDMI, and 1080p60 via SDI, at a distance of up to 5000+ ft line-of-sight, with less than 1ms of delay. Key features include increased range with lighter weight, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and unlimited receivers using broadcast mode. These devices are cross-compatible with the entire Bolt 4K Family. This deluxe set includes the Bolt 4K LT MAX TX, the Gold Mount version, V-Mount of the Bolt 4K LT MAX RX, a carrying case and other essentials you need to get started.
Zero-Delay 4K Wireless Video
Transmit and receive uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to and beyond 5000 + feet of range.
True HDR Color
Supports 10-Bit 4:2:2
Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.
Universal Compatibility
Send & receive signal to any Bolt 4K series RX/TX device for expanding workflow requirements.
Broadcast Mode
Supports Broadcast Mode which means you can connect unlimited receivers simultaneously. Broadcast mode also can increase your wireless video range to 5000 feet and beyond with the next-generation Array 4K Panel Antenna.
Transmitter:
Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
Output: 1x 3G-SDI (up to 1080p60)
Receiver:
Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)
Battery Plates
Optional Gold Mount or V-Mount battery plate with pass-through power available RX.
Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.
Bolt App for iOS and Android
Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand. *LUT/Color processing is not available through the Bolt App
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Bolt 4K LT MAX TX Specifications | |
|
Video |
|
| Video Inputs | 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle |
| Video Outputs | 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1) |
| Sdi Ancillary Data Support | Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Delay Tx To Rx | <0.001sec |
| Input Cross Conversion | Yes, HDMI to SDI (4Kp30 HDMI input is scaled and looped out as 1080p30 on SDI loopout) |
|
Supported Resolutions |
|
| Supported Resolutions | 4Kp23.98/24/25/29.97/30(HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) |
|
Video Processing |
|
| Video Compression | Visually Lossless |
| Video Format Conversion Support |
|
| Color Correction | None |
|
Audio Processing |
|
| Audio Format | 48kHz 24-bit PCM |
|
Inputs |
|
| Audio Input | Embedded SDI/HDMI Audio Input (2 Channel) |
|
Outputs |
|
| Audio Output | NA |
|
Physical |
|
| Dimensions | 2.4” x 4.1” x 1.3” (60 x 103 x 33mm) |
| Weight | 7.3oz (206g) |
| Construction | Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4″x20 and M3 holes |
|
Interfaces |
|
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Mobile App | Bolt App |
| Desktop App | Bolt Manager application for OSX & Windows |
| Usb Interface Functionality | Upgrade via Micro-USB |
| Bluetooth | 2.4 GHz |
|
Network |
|
| Antennas | 2x External 2dBi antennas (included) |
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
| Channel Bandwidth | 13x 40MHz wide channels |
| Rf Channel Selection | Auto, Manual Manual available for non-DFS Channels |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 19 dbm EIRP (2x external 2dBi antennas; <80mW transmit power |
| Range | Up to 3000 ft line of sight (5000 ft with optional Bolt 4K Array Antenna) |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
|
Power |
|
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Nominal Power Consumption | 9 Watts |
|
Environmental |
|
| Operating Temperature | 0-40℃ |
| Bolt 4K LT MAX RX Specifications | |
|
Video |
|
| Video Inputs | NA |
| Video Outputs | 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle |
| Sdi Ancillary Data Support | Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Delay Tx To Rx | <0.001sec |
| Input Cross Conversion | NA |
|
Supported Resolutions |
|
| Supported Resolutions | 4Kp23.98/24/25/29.97/30(HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) |
|
Video Processing |
|
| Video Compression | NA |
| Video Format Conversion Support |
|
| Color Correction | None |
|
Audio Processing |
|
| Audio Format | 48kHz 24-bit PCM |
|
Inputs |
|
| Audio Input | NA |
|
Outputs |
|
| Audio Output | Embedded SDI/HDMI Audio Input (2 Channel) |
|
Physical |
|
| Dimensions | 4.8” x 3.7” x 1” (122 x 94 x 27mm) |
| Weight | 10.3oz (292g) |
| Construction | Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability | Multiple mounting options with 1/4″x20 and M3 holes |
|
Interfaces |
|
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Mobile App | Bolt App |
| Desktop App | Bolt Manager application for OSX & Windows |
| Usb Interface Functionality | Upgrade via Micro-USB |
| Bluetooth | 2.4 GHz |
|
Network |
|
| Antennas | 5x External 2dBi antennas (included) |
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
| Channel Bandwidth | 13x 40MHz wide channels |
| Rf Channel Selection | Auto, Manual Manual available for non-DFS Channels |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 17 dbm EIRP (1x external 2dBi antenna; <51mW transmit power) |
| Range | Up to 3000 ft line of sight (5000 ft with optional Bolt 4K Array Antenna) |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
|
Power |
|
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Nominal Power Consumption | 11 Watts |
|
Environmental |
|
| Operating Temperature | 0-40℃ |
