Teradek Bond 657 AVC USB + Cube 655 + MPEG-TS
USD 3,455.00 excl. Tax
Teradek Bond AVC Backpack USB - No Nodes
USD 3,950.00 – USD 6,850.20 excl. Tax excl. Tax
Teradek Bond HEVC Backpack USB – No Nodes
USD 4,445.00 – USD 7,830.20 excl. Tax excl. Tax
Product Highlights
- All in one complete Bonding Solution
- Real-Time HEVC/AVC (H.265/H.264) Encoder (Also available in just H.264 only. See Bond 659)
- Network Bonding with LTE Modems and
- High Gain Antennas
- Gold or V Mount Battery Options (battery not included)
- Integrated Locking Cables
- Active Cooling keeps gear running optimally
| Weight | N/A |
|---|---|
| Choose Product Variants |
Backpack USB – No Nodes (Gold Mount) ,Backpack USB – No Nodes (V-Mount) ,Backpack Europe & Asia Pacific (Gold Mount) ,Backpack Europe & Asia Pacific (V-Mount) ,Backpack – Asia Pacific & South America (Gold Mount) ,Backpack – Asia Pacific & South America (V-Mount) |
This model has been discontinued
Description
Click to rate this post!
[Total: 0 Average: 0]
Teradek Bond 759 – Bond HEVC/AVC Backpack + MPEG-TS
Next Level Mobile Broadcasting

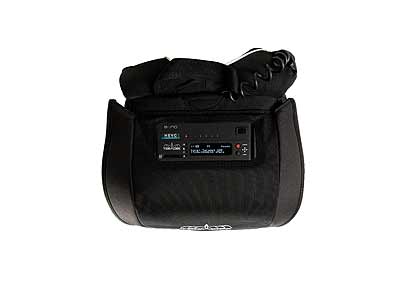

Teradek Bond Backpack is an all in one professional HEVC/H.264 streaming solution for broadcasters seeking the best in signal reception and video quality.
High Gain Antennas
Wireless reception for Teradek Node modems is greatly enhanced with two high gain antennas attached to the interior of the backpack.
Gold or V Mount Battery Plate
Choose between Gold-mount, V-mount, or no battery plate for portable power. When your battery runs dry, Cubes internal Li-Ion battery will give you 5 minutes of operation while you swap power sources.
Node Modems
Each backpack supports up to 5 USB or Teradek Node modems, ensuring you have connectivity wherever you go.
Integrated Locking Cables
To keep things tidy, we’ve neatly integrated several locking connector cables to attach your bonding encoder to each Node modem, ensuring your system is always running even if your backpack is dropped or tossed across the room.
HEVC/AVC Bonding Codec
At the heart of the Bond Backpack is the Cube encoder, a High Profile HEVC encoder that supports bitrates up to 30 Mbps, both HDMI and 3G-SDI inputs, and a boot-to-live time of just 20 seconds. H.264 only encoders are also available.
Active Cooling
To keep you comfortable and your gear operating optimally, we’ve integrated a practically silent fan to keep hot air out and cool air in.
Ergonomic, Weather Resistant Design
The Bond Backpack is ergonomic, lightweight, and weather resistant, allowing the camera operator to focus on the content and not on fatigue or damage from the elements. Nylon strips on the backpack’s shoulder straps keep your cables neatly dressed along your shoulder, while the quick release lock on the front offers quick access to both the encoder and battery.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
|
Cube 755+Bond 4pin Specifications |
|
|
Physical |
|
| Dimensions | 4.75”W x 3”D x 2”H [121 x 77.7 x 51.5 mm] |
| Weight | 21 oz (595 g) |
| Construction | Milled Aluminum (Chassis), regulation-compliant PCB |
|
Sets |
|
| Part1 | 10127025229|10-0319 |
| Part2 | 10267940365|10-0755 |
| Specifications | |
|
Physical |
|
| Dimensions | 3.258″ W x 0.728″ D x 2.198″ [ 82.75 x 18.5 x 59.25 mm] |
| Weight | 4oz. (110g) |
| Construction | Milled Aluminum (Chassis), regulation compliant PCB |
| Mountability | 1/4″-20 threaded hole, 2x 4-40 threaded holes, Additional mounting options available |
|
Environmental |
|
| Temperature | Operating: -10ºC to 50ºC Storage: -40ºC to 90ºC |
| Humidity | Operating: 5% to 95% (non-condensing) Storage: Max. 90% |
|
Interfaces |
|
| Interface | 2 Status LEDs |
| Interface | 4-pin to 4-pin connector |
|
Network |
|
| Lte | EU/Asia: LTE FDD Cat 4, Bands 1,3,5,7,8,20 SA/AUS: LTE FDD Cat 4, Bands 1,3,5,7,8,28 Please see other models for Support in Other Regions |
| Umts | EU/Asia: HSDPA Cat 24, HSUPA Cat 6, Bands 850/900/1900/2100 SA/AUS: HSDPA Cat 24, HSUPA Cat 6, Bands 850/900/1900/2100 Please see other models for Support in Other Regions |
| RF | 2×2 MIMO SMA Band 17 (700 MHz), Band 13 (750 MHz) Band 5 (850 MHz) Band 4 (1700 MHz) Band 2 (1900 MHz) |
| Power Class | Class 3 23dBm LTE mode Class 3 24 dBm for UMTS/HSDPA/HSUPA mode |
| Data Rate | LTE cat. 4: up to 150 Mb/s DL, 50 Mb/s UL HSDPA cat.14, up to 21 Mb/s DL HSUPA cat.6, up to 5.6 Mb/s UL |
| Sim | Full size SIM |
|
Power |
|
| Power Input | 2-Pin Connector, 5-28V |
| Battery | None |
| Nominal Power Consumption | 5W Max |
