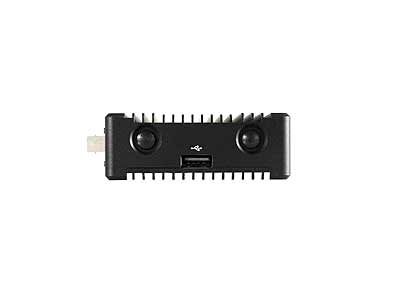

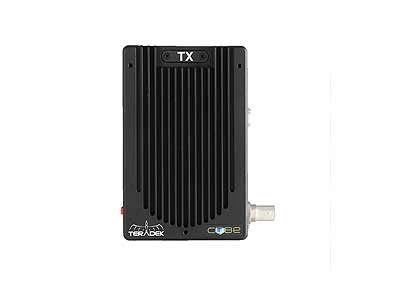

Teradek Cube 705 – H.265 (HEVC) and H.264(AVC) Camera Top Encoder – Ethernet Only
Teradek Cube 705 is the Real-Time H.265(HEVC) and H.264(AVC) Encoder, Ethernet and USB Interfaces (No WiFi), HDMI and SDI Video Inputs, Camera Top Form Factor, Built-In Color Grading, On-Board SD Card Recording, Two-Pin LEMO-Type Power Input
HEVC
HEVC, also known as H.265, is a next-generation compression standard that offers a number of enhancements over H.264. Compared to AVC (H.264) compression, HEVC is 50% more efficient, which translates into maintaining the same video quality at half the bitrate or double the video quality at the same bitrate.
HEVC Cube unique
• Can use both HEVC (H.265) and AVC (H.264) High Profile compression
• Compatible with Core transcoding engine. This allows you to take advantage of HEVC encoding when streaming to Core, while delivering your content in AVC to your destination.
• Dual input (HDMI + 3G-SDI)
• Compatible with the new Bond expansion module, allowing you to turn your Cube 700 series into a professional bonding solution
• GigE and 2.4 / 5Ghz 802.11ac WiFi built-in
• Bitrate support up to 30Mbps
• Streaming resolution support up to 1080p60
• Compatible with T-21, Sencore, and Vitec HEVC decoders
• Uses just 6W of power
Cube codecs
• Stream to any online video platform, such as Facebook, Youtube, Twitch, Periscope, and more.
• Stream point-to-point to decoders over the internet or on local networks with latency as low as 80ms
Comprehensive protocol support: MPEG-TS, RTSP, RTMP, HLS, TDS
• Monitor your live video feed on an iOS device for confidence or local configuration
• Turn your camera into a wireless video feed for Teradek’s Live:Air iOS switcher application
For Newtek NDI | HX (Network Device Interface High Efficiency Mode) compatibility, choose Teradek NDI license.
Teradek NDI License
The Teradek NDI license is an NDI | HX high performance streaming protocol add-on for the Cube 755 or Cube 705. NDI allows anyone to use real-time, ultra low-latency video on existing IP video networks and will be accessible as a protocol on your device once the license is purchased and activated.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Specifications | |
|
Video |
|
| Video Inputs | 1 xSD/HD/3G-SDI (75 Ohm BNC) 1 x HDMI Type-A receptacle |
| Video Outputs | None |
|
Bonding |
|
| Bonding | Up to 6 USB Devices Ethernet (requires USB to ethernet dongle WiFi |
|
Supported Resolutions |
|
| Supported Resolutions |
|
|
Video Processing |
|
| Video Compression | H.264: base/main/high profile up to level 4.2 H.265: main profile up to level 4.1 |
| Supported Video Bitrate | 250 Kbps to 30 Mbps |
| Video Format Conversion Support | Built in Video Scaler and Deinterlacer |
|
Protocol Support |
|
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Supported Video Transport Protocols | RTP, RTSP, RTSP over HTTP MPEG-TS |
| Remote Control | Teradek Core |
|
Audio Processing |
|
| Audio Compression | AAC-LC, MPEG Layer 2 |
|
Inputs |
|
| Audio Input | Embedded Audio Input Analog Line or Mic in, adjustable gain IFB: One-Way Talk-Back Analog Audio In/Out |
|
Outputs |
|
| Audio Output | Headphone output, adjustable volume IFB: One-Way Talk-Back Analog Audio In/Out |
|
Physical |
|
| Dimensions | 2.7″ W x 3.5″ D x 1.5″H [68.58 x 88.9 x 38.1 mm] |
| Weight | 8.4oz [238g] (without modems) |
|
Interfaces |
|
| Http | Feature-rich WebUI for configuration and control |
| Configuration Interfaces | OLED Display with joystick Navigation buttons |
| Switches | On/Off and Reset Switch |
| Recording Storage | SD Card: Micro |
| Usb Interface Functionality | 7 x USB 2.0 Type A Powered Ports for USB Modems |
|
Network |
|
| Wireless | 2.4/5GHz 802.11 a/b/g/n MiMO |
| Encryption | 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES |
|
Power |
|
| Power Input | 2 Pin Connector Power Input |
| Nominal Power Consumption | 3.5W, 2W (no WiFi) While Charging: up to 10W |
| Auxilary Power Input | 6-28V DC |
|
Enviornmental |
|
| Operating Temperature | 0 – 50 C |
In The Box
Click to rate this post!
[Total: 0 Average: 0]
- 1 x Cube 705
- 1 x Ethernet Cable
- 1 x HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
- 1 x SDI – BNC to BNC Cable, 10in
- 1 x PSU 2pin Conn to 18W AC Adapter (Int) – 6ft
