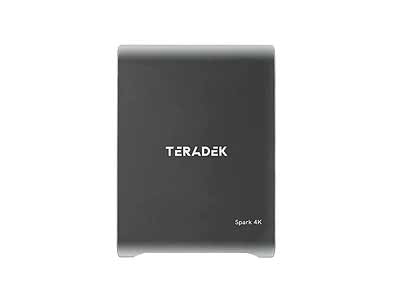

Teradek Spark 4K Receiver
USD 749.00 excl. Tax
Product Highlights
- Includes: 1 RX
- Video: Up to 4Kp30
- Range: 500 ft.
- Outputs: 1x HDMI
- Multicast: Can connect one transmitter to up to 2 receivers
- Compatibility: Spark 4K TX
| Weight | 2 kg |
|---|---|
| Choose Product Variant |
Bolt 4K 1500 TX/RX Set ,Bolt 4K 1500 TX/RX Set (Gold-mount) ,Bolt 4K 1500 TX/RX Set (V-mount) |
This model has been discontinued
Description
Click to rate this post!
[Total: 0 Average: 0]
Teradek Spark 4K RX
Transport your 4K HDR video signal from source in 0.001 seconds with the Spark 4K Receiver. Teradek Spark 4K Receiver is a wireless receiver that receives premium quality video and audio at up to 500 feet. It’s the perfectly simple A/V solution for zero-delay wireless transmission, designed for everything from weddings, conferences, live sports, and trade shows, to table tops and cameras.
The Spark 4K Receiver has been designed for an effortless stream. The RX is simple to set up and helps to create a clean, organized work environment, wirelessly receiving vivid images – with 10-Bit 4:2:2 color sampling and 4Kp60 resolution – at up to 500 feet. And thanks to a lightweight design and small build – only slightly larger than a cassette tape – the Spark 4K Receiver is perfect for on-the-move camera work.
Key features of this streaming include dual-powering options (USB-C and Barrell Connector) for backup battery redundancy, signal status and pairing with the Launchpad desktop and mobile app, and multicast transmission. The Spark 4K Receiver works with projectors, switchers, monitors, TV screens, and LED video walls.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Specifications | |
|
Video |
|
| Video Inputs | 1x HDMI 1.4b Type-A receptacle |
| Color Sampling | RGB 4:2:2, 10-bit |
| Delay Tx To Rx | <0.001sec (without format conversions) |
|
Supported Resolutions |
|
| Supported Resolutions | 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 |
|
Video Processing |
|
| Video Compression | Visually Lossless |
|
Audio Processing |
|
| Audio Format | 48kHz 24-bit PCM |
|
Outputs |
|
| Audio Output | Embedded HDMI Audio Input (2 channel) |
|
Physical |
|
| Dimensions | 4.39” x 3.19” x 1” (112mm x 81mm x 25mm) |
| Weight | 187g (6.6 oz) |
| Construction | ABS Plastic |
| Mountability | Multiple mounting options with M3 and 1/4-20” holes |
|
Interfaces |
|
| Configuration Interfaces | OLED display – Input video format, Selected frequency, Video Quality % , Link status |
| Switches | On/Off Switch |
| Mobile App | Launchpad App |
| Desktop App | Launchpad application for OSX & Windows |
| Usb Interface Functionality | Upgrade via Micro-USB |
| External Control | Enable/disable Bluetooth |
| Bluetooth | 2.4 GHz |
|
Network |
|
| Wireless | DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz |
| Rf Channel Selection | Auto only, 40 MHz only, no blocked frequencies |
| Encryption | AES-128, RSA-1024 key exchange |
| Rf Power | 17 dbm EIRP (<51mW transmit power |
| Range | Up to 500 ft line of sight |
| Unicast Multicast | Can connect one transmitter to up to 2 receivers |
| Noise Rejection | Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 4 sets in same location |
|
Power |
|
| Power Input | USB-C and 6-18 DC power input |
| Battery | None |
| Nominal Power Consumption | 7.5 Watts |
|
Enviornmental |
|
| Operating Temperature | 0~40 deg-C |
In The Box
Click to rate this post!
[Total: 0 Average: 0]
- 1 x Spark 4K RX
- 1 x Lightstand Adapter 1/4-20in
- 1 x Ultra Thin HDMI 18in Cable
- 1 x PSU 18W AC Adapter 12VDC (Int) – 6ft Cable
- 1 x Quickstart Guide – Spark 4K
