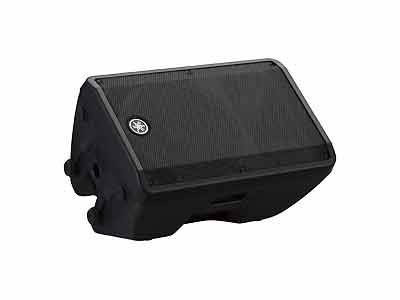

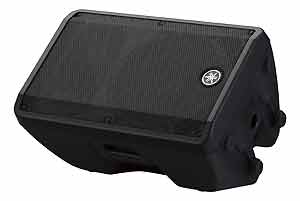

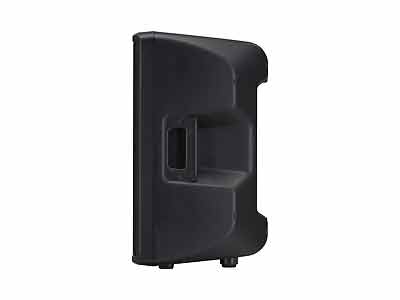

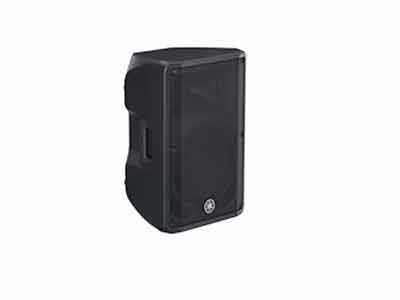

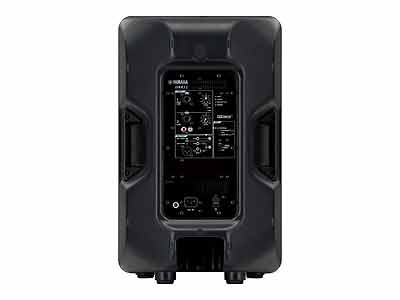

Yamaha DBR12 2-way Powered Loudspeaker
SGD 766.00 excl. Tax
Weight | 30.7 kg |
---|
Yamaha DBR12 1000w 12″ 2-way Powered Loudspeaker
Yamaha DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.
Features:
- High-Efficiency 1000W Class-D Amplifiers
- Custom Designed Transducer
- A Rugged, Highly Portable Cabinet
- Easy-to-use Onboard 2-Channel Mixer
- Smart Enclosure Design for Floor Monitoring
- Rigging Points for Installation Applications
To view more Yamaha Singapore Products
Related Products:
- Yamaha DBR10 2-way Powered Loudspeaker
- Yamaha DBR15 2-way Powered Loudspeaker
- Yamaha DHR10 2-way Powered Loudspeaker
- Yamaha DHR12M 2-way Loudspeaker
- Yamaha DHR15 2-way Powered Loudspeaker
- Yamaha DXR8MKII 2-way Powered Loudspeaker
- Yamaha DXR10MKII 2-way Powered Loudspeaker
- Yamaha DXR12MKII 2-way Powered Loudspeaker
- Yamaha DXR15mkII 2-way Powered Loudspeaker
- Yamaha DZR10 10? Powered Loudspeaker
- Yamaha DZR12 12? Powered Loudspeaker
- Yamaha DZR15 15? Powered Loudspeaker
- Yamaha DZR315 Powered Loudspeaker
- Yamaha DZR10-D 10? Powered Loudspeaker
- Yamaha DZR12-D 12? Powered Loudspeaker
- Yamaha DZR15-D 15? Powered Loudspeaker
- Yamaha DXL1K Powered Loudspeaker
DBR12 | ||||
---|---|---|---|---|
General specifications | ||||
Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type | |||
Frequency range (-10dB) | 52Hz – 20kHz | |||
Nominal coverage | H | 90° | ||
V | 60° | |||
Components | LF | Diameter:12″ cone, Voice Coil:2″, Magnet:Ferrite | ||
HF | Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite | |||
Crossover | 2.1kHz: FIR-X tuningâ„¢ (linear phase FIR filter) | |||
Output power | Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) | |||
Maximum output level (1m; on-axis) | 131dB SPL | |||
I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |||
Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |||
Heat dissipation | Fan cooling, 4 speeds | |||
Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | |||
Power consumption | 74W(1/8 Power Consumption), 18W(Idle) | |||
Cabinet material | Plastic | |||
Finish | Black | |||
Handle | Side x 2 | |||
Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) | |||
Pole socket | 35mm (Bottom x 1) | |||
Dimensions | W | 376mm (14.8″) | ||
H | 601mm (23.7″) | |||
D | 348mm (13.7″) | |||
Net weight | 15.8 kg (34.8 lbs) | |||
Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
