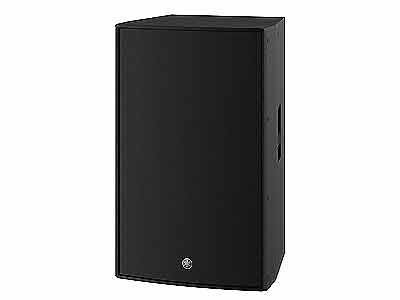

Yamaha DZR315 2000W 3-Way Active Loudspeaker
Yamaha DZR315 is a 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction. Yamaha DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front-of-house main PA, it also includes integrated M10 rigging points for suspended applications.
Features:
- 3-way powered loudspeaker with a 2? HF, an 8 ? MF, and a 15″ LF
- Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super-low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR315)
- Durable Black or white finish
To view more Yamaha Singapore Products
Related Products:
- Yamaha DBR10 2-way Powered Loudspeaker
- Yamaha DBR12 2-way Powered Loudspeaker
- Yamaha DBR15 2-way Powered Loudspeaker
- Yamaha DHR10 2-way Powered Loudspeaker
- Yamaha DHR12M 2-way Loudspeaker
- Yamaha DHR15 2-way Powered Loudspeaker
- Yamaha DXR8MKII 2-way Powered Loudspeaker
- Yamaha DXR10MKII 2-way Powered Loudspeaker
- Yamaha DXR12MKII 2-way Powered Loudspeaker
- Yamaha DXR15mkII 2-way Powered Loudspeaker
- Yamaha DZR10 10? Powered Loudspeaker
- Yamaha DZR12 12? Powered Loudspeaker
- Yamaha DZR15 15? Powered Loudspeaker
- Yamaha DZR10-D 10? Powered Loudspeaker
- Yamaha DZR12-D 12? Powered Loudspeaker
- Yamaha DZR15-D 15? Powered Loudspeaker
- Yamaha DXL1K Powered Loudspeaker
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Speaker type | 3-way, Bi-ampled Powered Speaker, Bass-reflex | |
|---|---|---|
| Frequency range (-10dB) | 31Hz – 20kHz | |
| Coverage area | H75ﾟ x V50ﾟ | |
| Components | LF | 15″ Cone, 3″ Voice Coil, Neodymium magnet |
| MF | 8″ Cone, 1.5″ Voice Coil, Ferrite magnet | |
| HF | 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 700Hz (FIR-X), 2.5kHz (Passive) | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on-axis) | 143dB SPL | |
| Power rating | Dynamic | 2000W (LF: 1000W, MF/HF: 1000W) |
| Burst (20ms) | 1100W (LF: 1000W, MF/HF: 100W) | |
| Continuous | 950W (LF: 850W, MF/HF: 100W) | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Rigging | M10 x16 | |
| Dimensions | W | 550 mm (21.6″) |
| H | 897 mm (35.3″) (with rubber feet) | |
| D | 520 mm (20.5″) | |
| Net weight | 41.6kg (91.7lbs) | |
| Options | Cover: SPCVR-DZR315 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White | |
| Floor Monitor Angle | – | |
| Pole socket | – | |
1: Measured peak SPL with pink noise @1m.
2: Total peak power of individual outputs (AC 120V, 25℃). This value was measured at minimum load impedance, with protection released.
