Yamaha VXC5F 4.5" Low Profile Ceiling Speaker
USD 355.00 – USD 368.00 excl. Tax excl. Tax
Yamaha VXC2F 2.5" Low Profile Ceiling Speakers
USD 170.00 excl. Tax
Yamaha VXC3F 3.5″ Low Profile Ceiling Speakers
USD 254.00 – USD 264.00 excl. Tax excl. Tax
| Weight | N/A |
|---|---|
| Yamaha 3.5" Ceiling Speaker |
Yamaha VXC3F Black ,Yamaha VXC3F White |
Description
Click to rate this post!
[Total: 1 Average: 5]

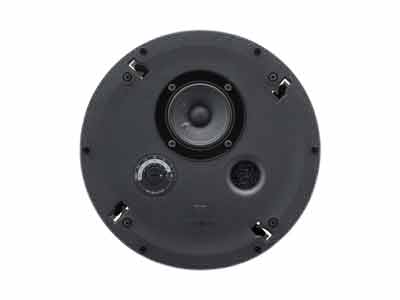

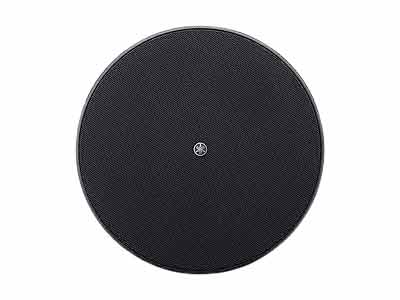

Yamaha VXC3F Ceiling Speaker(Black/White)
Yamaha VXC3F ceiling speakers allow you to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment. Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F’s shallow, lightweight construction, and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed. Yamaha VXC3F is a 3.5″ full-range low-profile ceiling speaker. Yamaha VXC3F ceiling speakers feature low-profile back boxes, reduced weight, and mechanical features that contribute to significantly safer, faster installation. And since these models support both low-impedance and high-impedance connections, the need for the extra stock is minimized and systems can be designed to ideally meet the requirements of any application.
Features:
- 3.5” full-range speaker unit
- Engineered for optimum BGM reproduction
- The low-profile design facilitates installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- A Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provides secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions are available
- 2.5kg (5.5lbs), Ø285 x D112 mm (Ø11-1/4″ x D4-7/16″)
- Delivers the Highest Quality Background Music
- Smart Design for Safer, Faster Installation
To view more Yamaha Products
Related Product:
VC Series Product:
- Yamaha VC8NW Ceiling Speaker
- Yamaha VC6NW Ceiling Speaker
- Yamaha VC4NW Ceiling Speaker
- Yamaha VC8W Ceiling Speaker
- Yamaha VC6W Ceiling Speaker
- Yamaha VC4W Ceiling Speaker
VXC Series Product:
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Speaker type | Full range, Bass reflex | |
|---|---|---|
| Frequency range (-10dB) | 71 Hz – 20 kHz (Half-space:2π) | |
| Nominal coverage | 140° conical (Half-space:2π) | |
| Components | LF-HF | 3.5” Full range unit |
| Power rating | NOISE | 20 W |
| PGM | 40 W | |
| PEAK | 80 W | |
| Nominal impedance | 8 Ω | |
| Transformer taps | 100V | 15W, 7.5 W, 3.8 W |
| 70V | 15 W, 7.5 W, 3.8 W, 1.9 W | |
| SPL | Sensitivity (1W; 1m on axis) | 87 dB SPL (Half-space:2π) |
| Peak (Calculated) | 106 dB SPL (Calculated, 1m) | |
| I/O connectors | Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-) | |
| Protection circuit | Load protection | Full-range power limiting to protect network and transducers |
| Finish | VXC3F: Black (approx. Munsell N3), VXC3FW: White (approx. Munsell N9.3) | |
| Dimensions | Diameter | 285 mm (11-1/4″) |
| D | 112 mm (4-7/16″) | |
| Net weight | 2.5 kg (5.5 lbs) | |
| Cutout size | Ø247 mm (Ø9-3/4″) | |
| Required ceiling board thickness | 5 mm – 37 mm | |
| Accessories | O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover | |
| Packaging | Packaged in pairs | |
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | |
| EN54-24 compliance | – | |
| Others | Conduit tube: Ø15.4 mm – Ø21.3 mm | |
| Options | – | |
