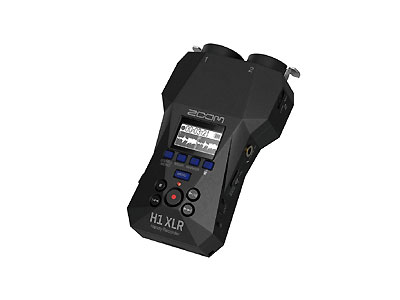

Zoom H1 XLR 2 Track Handy Recorder

Name: Zoom H1 XLR 2 Track Handy Recorder
Brand: Zoom
SKU: H1 XLR
Rating: 5 (1 reviews)

USD 138.00 excl. Tax

Product Highlights:

2-track 32-bit float recorder with Dual A/D Converters
Clip-free recording with no need to set the gain
Records up to 96 kHz sample rate
Voice Guidance accessibility for the visually impaired
2 XLR/TRS combo inputs with locking connector
Stereo ⅛” Mic/Line In mini phone jack
Stereo ⅛” Phone/Line Output jack with dedicated volume control

Weight	2.99 kg

SKU: H1 XLR Category: Field Recorder

Description

Click to rate this post!

[Total: 1 Average: 5]

Zoom H1 XLR 2-track 32-bit float recorder with Dual A/D Converters

The Zoom H1 XLR is the recorder for creators who know no limits. Capture audio for video, direct feeds from mixers, song ideas, and more.

Input Flexibility

Equipped with two locking XLR/TRS combo inputs, the H1 XLR is ready to record microphones, stereo board feeds, instruments, and more. The 3.5mm stereo input allows you to record on-camera mics, lavaliers, phones, and other sources.

Ultra-Clean Preamps

The H1 XLR’s preamps give you crystal clear audio with a -122 dB EIN and sample rates up to 96 khz.

Line Level Like a Pro

Capture +4dBu professional line-level signals to record clip-free audio from any mixer or line output.

Stereo or Mono

The H1 XLR can record both stereo and mono files depending on your application.

The Sound Designer’s Companion

With 32-bit float recording, you can capture the roar of the loudest engines and the delicate whispers of nature in stunning quality.

Podcast Anywhere

With the H1 XLR and two of your favorite mics it’s easy to record podcasts anywhere you go.

Perfect Audio for your Mobile Video

Connect the H1 XLR to your mobile device via the USB-C port and record professional audio directly onto your phone’s video. Perfect for video podcasts, live streams, and more.

32-bit Float Audio Interface

Connect to a PC, Mac, iOS, or Android device and use the H1 XLR as an audio interface while simultaneously recording to the SD card.

Applications:

Attention Musicians: Capture live band performances or DJ sets by taking a stereo feed from your mixing board.
Perfect on Camera: The H1 XLR is perfect for mounting on your rig to record great audio from a shotgun or wireless mics.

To view more Zoom Products

Other Site:

Zoom H1 XLR Handheld Audio Recorder

Features

Click to rate this post!

[Total: 1 Average: 5]

2-track 32-bit float recorder with Dual A/D Converters
Clip-free recording with no need to set the gain
Records up to 96 kHz sample rate
Voice Guidance accessibility for the visually impaired
2 XLR/TRS combo inputs with locking connector
Hardware MIC/LINE input level: select the switch for each input
Stereo ⅛” Mic/Line In mini phone jack
Stereo ⅛” Phone/Line Output jack with dedicated volume control
¼ | 20 Tripod mount
Real-time waveform display on OLED display
Built-in mixer to adjust each track’s audio input level
Built-in speaker for quick reference playback and voice guidance accessibility
32-bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
Use as an interface and record to SD card simultaneously
Records directly to microSDHC and microSDXC cards up to 1 TB
10 hours of battery life on an AA battery (2x) or USB-C Bus Power

Specifications

Click to rate this post!

[Total: 1 Average: 5]

INPUTS
MIC/LINE (mono)	Connectors	2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
	Input gain	Adjustment unnecessary (dual A/D converter circuits used)
	Input impedance	MIC: 2.7 kΩ or more
		LINE: 1 kΩ or more
	Maximum input level	MIC: +4 dBu
		LINE: +24 dBu
	Phantom power	+48 V
		Channel total 10 mA or less
	Equivalent input noise	MIC: –122 dBu or less (IHF-A) at 150Ω input
		LINE: –100 dBu or less (IHF-A) at 600Ω input
MIC/LINE IN jack	Connector	Stereo mini jack
	Input impedance	2 kΩ
	Plug-in power	2.5 V
OUTPUTS
PHONE / LINE OUT jack	Connector	Stereo mini jack
	Maximum output level	20 mW + 20 mW (when 32 Ω load)
	Output impedance	10 Ω or less
Built-in speaker	Type	20 mm × 30 mm elliptical dynamic speaker
	Effective maximum output	250mW
RECORDER
Recording format	WAV 44.1, 48 or 96 kHz / 32-bit float Stereo / Mono BWF and iXML formats supported
Recording media	4 – 32GB cards compatible with the microSDHC specification 64GB – 1TB cards compatible with the microSDXC specification
DISPLAY
OLED	128 x 64
USB
Connector	USB Type-C Use a USB cable that supports data transfer.
Audio interface	USB Audio Class 1.0
Input and output channels	2 in / 2 out (Stereo)
Sampling frequencies	>44.1, 48 kHz
Bit depths	16-bit, 32-bit float
File transfer	USB 2.0 High Speed
POWER
2 AA batteries	Alkaline, Lithium, or Rechargeable NiMH
AC adapter	ZOOM AD-17: DC 5 V/1 A USB bus power is supported.
Power consumption	2.5 W maximum
Dimensions	62.1 mm (W) × 107 mm (D) × 39.3 mm (H)
Weight (including batteries)	164 g
