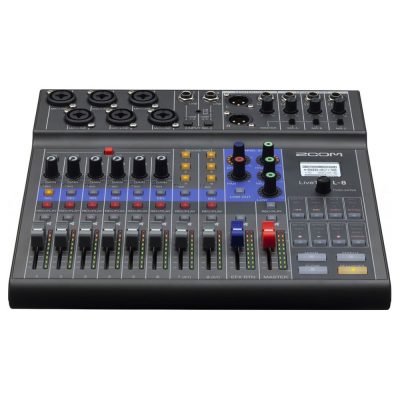

Zoom L8 LiveTrak Portable 8-Channel Digital Mixer

INPUTS AND OUTPUTS / NUMBER OF CHANNELS

INPUTS:
MIC/LINE: 6
LINE: 2

OUTPUT:
MASTER OUT: 1
MASTER OUT (PHONES): 1
MONITOR OUT (PHONES) : 3

INPUTS

MIC/LINE:

Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)
Input impedance: XLR: 3 kΩ
Input impedance: TRS: 3 kΩ/1 MΩ (when Hi-Z ON)
Maximum input level: –2 dBu when –26dB switch OFF (at 0 dBFS)
Maximum input level: +24 dBu when –26dB switch ON (at 0 dBFS)
Phantom power: +48 V

LINE:

Type: TS phone jack
Input impedance: 10 kΩ
Maximum input level: +3 dBu
Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)
Input impedance: XLR: 3 kΩ
Input impedance: TRS: 3 kΩ/1 MΩ (when Hi-Z ON)
Maximum input level: –2 dBu when –26dB switch OFF (at 0 dBFS)
Maximum input level: +24 dBu when –26dB switch ON (at 0 dBFS)
Phantom power: +48 V

LINE:

Type: TS phone jack
Input impedance: 10 kΩ
Maximum input level: +3 dBu
SMARTPHONE CONNECTION JACK: Type: TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
Input impedance: 10 kΩ
Maximum input level: +3 dBu

OUTPUT

MASTER OUT: Type: XLR jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω

MASTER OUT (PHONES): Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60Ω load)
Output impedance: 10 Ω

MONITOR OUT (PHONES): Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60Ω load)
Output impedance: 10 Ω

BUSES

MASTER: 1
MONITOR: 3
SEND EFX: 1

CHANNEL STRIP

LOW CUT: 75 Hz, 12 dB/OCT
EQ: HIGH: 10 kHz, ±15 dB, shelving
MID: 2.5 kHz, ±15 dB, peaking
LOW: 100 Hz, ±15 dB, shelving
LEVEL METER: 9 segments
SEND EFFECTS: 8 types

RECORDER

MAXIMUM SIMULTANEOUS RECORDING TRACKS: 12 at 44.1/48/96 kHz
MAXIMUM SIMULTANEOUS PLAYBACK TRACKS: 10
RECORDING FORMAT: WAV 44.1/48/96 kHz,　16/24-bit,　mono/stereo
RECORDING MEDIA: 4GB – 32GB SDHC-compliant cards (Class 10 or higher)
64GB – 1TB SDXC-compliant cards (Class 10 or higher)

AUDIO INTERFACE

44.1/48 KHZ: Recording: 12 channels
Playback: 4 channels
BIT DEPTH: 24-bit
INTERFACE: USB 2.0

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE

WINDOWS: OS： Windows® 8.1 / 10 / 11 (32bit/64bit)
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0
Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

MAC: OS： macOS 10.12 ~ 13

CPU: Intel® Core i3 or faster

USB: USB 3.0/USB 2.0*
Operation is not guaranteed when used with USB hubs or expansion cards.

IPHONE/IPAD: OS： iOS 10 ~ 16, iPadOS 15 ~ 16
Apple Lightning-to-USB Camera Adapter required.

CARD READER

CLASS: Mass storage USB 2.0 High Speed
SAMPLING FREQUENCY: 44.1/48/96 kHz
FREQUENCY RESPONSE: 20 Hz – 20 kHz: –1 dB at 44.1 kHz
20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o’clock)EQUIVALENT INPUT NOISE: –121 dBu or less (IHF-A) at +54dB/150Ω input
DISPLAY: LCD with backlight (96×64 resolution)

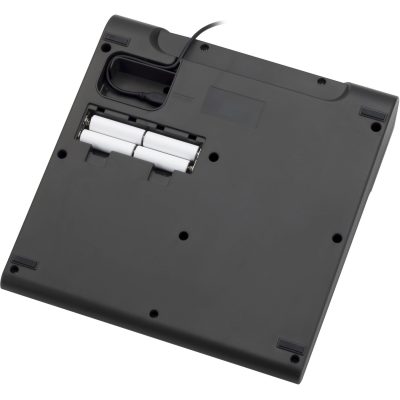

POWER: 4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
Supports USB bus power

ESTIMATED CONTINUOUS RECORDING TIME USING BATTERIES:

Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62Ω):
Alkaline batteries: about 1.5 hours
NiMH batteries (1900 mAh): about 3 hours
Lithium batteries: about 5 hours
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
POWER CONSUMPTION: 5 W
EXTERNAL DIMENSIONS: 268 mm (W) × 282 mm (D) × 74 mm (H)
WEIGHT (UNIT ONLY): 1.56 kg

• LiveTrak L-8 Mixer/Recorder
• TRRS Cable
• USB Cable
• AD-17 AC Adapter
• Quick Guide
