Name: Audio-Technica ATND1061 DAN Beamforming Ceiling Array Microphone
Brand: Audio-Technica
SKU: ATND1061 DAN
Rating: 5 (1 reviews)

Description

Click to rate this post!

[Total: 1 Average: 5]

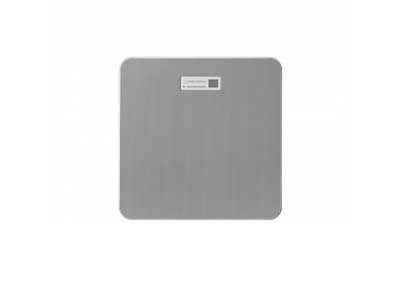

Audio-Technica ATND1061 DAN Beamforming Ceiling Array Microphone with Dante & Analog

The Dante-enabled Audio-Technica ATND1061DAN has two network ports, which can be configured to fit any installation requirement. In “Single Cable Mode,” Dante audio and microphone control data are sent together over a single standard category cable. In “Split Mode,” Dante audio and microphone control data are sent separately over two category cables.

The ATND1061 Beamforming Ceiling Array Microphone is an ideal solution for conference rooms, boardrooms, and meeting spaces large and small. The microphone may be used singly or in multiples (for larger meeting spaces) to capture every person speaking in a room with clear, natural audio that reduces distracting environmental sounds. A state-of-the-art professional product in a familiar form factor (roughly the size of a wireless access point), the ATND1061 is easy to install, set up, and operate.

To view more Audio-Technica Products

View more Hanging Microphone Products

Features

Click to rate this post!

[Total: 1 Average: 5]

The ATND1061 beamforming microphone array is an ideal solution for conference rooms, boardrooms, and meeting spaces large and small
Powerful onboard DSP: automix, acoustic echo cancelation, noise reduction, automatic gain control, and 4-band EQ
User-friendly Digital Microphone Manager software easily configures single or multiple ATND1061 microphone settings
Six individual output channels with up to 32 user-defined microphone pickup zones provide the flexibility to cover a wide variety of room sizes and meeting types
Output Channel 1 can be configured with up to 16 user-defined Coverage Zones to ensure coverage of non-priority or unplanned participants
Output Channels 2–6 can be configured with up to 16 user-defined Priority Zones to ensure priority pickup of participants in known locations
Proprietary voice activity detection (VAD) technology enables the microphone to discern between a voice and unwanted noises such as paper shuffling
Exclusion zones can be set in the software to avoid known sources of unwanted noise (such as air-handling systems)
Two network ports with Single Cable and Split modes to send Dante audio and microphone control data together or separately over category cable (ATND1061DAN)
Mounts flush or on the surface of a drop ceiling or hard ceiling or in open architecture spaces using VESA mount
UL 2043 compliant for installation in plenum spaces
Includes tile bridge, safety wiring, and mounting hardware and accessories
The low-reflective white finish matches ceiling tiles in most environments
Powered by network PoE

Specifications

Click to rate this post!

[Total: 1 Average: 5]

General
Power requirement	PoE (IEEE 802.3af Class 0)
Power consumption	Max. 7 W
Operation temperature range	0°C to 40°C (32°F to 104°F)
Operation humidity range	25% to 85% (Non-condensing)
Dimensions	227.5mm (9.0”) x 227.5mm (9.0”) x 30mm (1.2”) (W x D x H)
Weight	1250 g (44 oz)
Microphone
Beam width	90°
Polar pattern	Beam pattern
Frequency Response	60 Hz to 18,000 Hz
Sensitivity	-8 dBFS (1 kHz, 94 dBSPL)
Dynamic Range	89 dB (A-weighted)
Signal-to-noise ratio	61.5 dB (A-weighted)
Self-noise	25 dBSPL (A-weighted)
Maximum input sound level	102 dBSPL
Analogue Audio
Frequency response	20 Hz to 20 kHz (+1.0/-2.0 dB)
Dynamic range	100 dB (A-weighted)
Signal-to-noise ratio	80 dB (A-weighted)
Headroom	20 dB
Residual noise	-75.8 dBu (A-weighted)
T.H.D	<0.1% (1 kHz, unity)
Analogue input	MIC Maximum: -30 dBu MIC Unity: -50 dBu LINE Maximum: +12.2 dBu LINE Unity: -10 dBV, Switchable
Analogue output	OUTPUT Maximum: +19.2 dBu OUTPUT Unity: +4 dBu/ dBV/-33 dBV, Switchable
Others
Network	Dante: 1 Gbps IP control: 100 Mbps
Digital audio	Sampling rate: 48 kHz Bit depth: 24 bit
Latency	Microphone (CH1 to CH6): 47 msec Microphone (Auto Mix CH): 79 msec Dante: Min. 250 usec, Max. 5 msec
I/O connector	Network/ Dante: RJ-45 Analogue input: Euroblock 3 pin Analogue output: Euroblock 3 pin GPI: Euroblock 3 pin
Phantom power	Analogue input: 12 V
Included accessories	IR remote controller Surface mount adapter Screw (M4 x 50 mm) x 4 Flush mount adapter Flush mount cover Screw (M4 x 10 mm) x 12 Hole cover Nut x 4 Snap bushing x 2 Tile bridge A x 2 Tile bridge B x 2 Tile bridge C x 2 Seismic cable Zip tie Safety belt Euroblock connector x 3 Installation template
