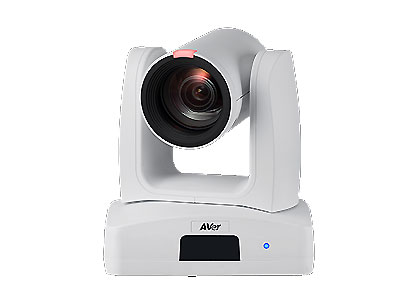

Aver PTZ310UNV2 NDI|HX3 PTZ Camera

Camera:

• Image Sensor: 1/2.8” 4K Exmor CMOS
• Effective Picture Elements: 8 Megapixels
• Output Resolutions: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination: 0.46 lux (IRE50, F1.6, 30fps)
• S/N Ratio: ≥ 50 dB
• Gain: Auto, Manual
• TV Lines: 1600 (Center/Wide)
• Shutter Speed: 1/1 to 1/32,000 sec
• Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, and WDR
• White Balance: Auto, Manual, ATW, One Push
• Optical Zoom: 12X
• Digital Zoom: 12X
• Total Zoom: 144X
• Focal Length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance: 0.3 m (Wide), 1.5 m (Tele)
• Image Processing: Noise Reduction (2D / 3D), Flip, Mirror
• Power Frequencies: 50 Hz, 60 Hz

Viewing Angles

• DFOV: 80.6° (Wide) to 7.7° (Tele)
• HFOV: 72.8° (Wide) to 6.7° (Tele)
• VFOV: 44.1° (Wide) to 3.8° (Tele)

Pan / Tilt Angles

• Pan: ±170°
• Tilt : +90° / -30°

Pan / Tilt Speed (Manual)

• Pan : 0.1° to 100° / sec
• Tilt : 0.1° to 100° / sec

Preset Speed

• Pan: 200° / sec
• Tilt: 200° / sec

Preset Positions

• 10 (IR)
• 256 (RS-232, RS-422, IP)

Camera Control: Interfaces

• RS-232 (DIN8)
• RS-422 (RJ45)
• IP

Camera Control: Protocols

• VISCA (RS-232 / RS-422 / IP)
• PELCO-D & PELCO-P (RS-232 / RS-422)
• CGI (IP)
• ONVIF

AI Function:

• Mode: SmartShoot

Audio:

• Channels: 2ch Stereo
• Codecs: AAC-LC

Interface:

• Video Outputs: 3G-SDI, HDMI, IP, USB
• Audio Outputs: 3G-SDI, HDMI, IP, USB
• Audio Inputs: MIC in, Line in

General:

• Power Requirement: AC 100 – 240V to DC 12V/2A
• Power Consumption: 19W
• PoE: PoE+
• Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
• Net Weight: 2.0 (±0.1) kg
• Application: Indoor
• Tally Lamp: Yes
• Security: Kensington Slot
• Remote Control: Infrared

Operating Conditions:

• Temperature : 0 °C to +40 °C
• Humidity: 20% to 80%

Storage Conditions:

• Temperature : -20 °C to +60 °C
• Humidity: 20% to 95%

IP Streaming:

• Resolution: 4K 60fps
• Network Video Compress Formats: H.264, H.265, MJPEG
• Maximum Frame Rate: 4K 60fps
• Bit-Rate Control Modes: VBR, CBR (selectable)
• Range of Bit-Rate Setting: 512 Kbps to 120 Mbps
• Network Interface: 10 / 100 / 1000 Base-T
• Multi-Stream Capability: 5
• 4K 60fps: RTSP, HDMI, USB & NDI® HX
• 1080p 60fps: 3G-SDI
• Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI® HX3: Yes
• NDI ® Genlock: Yes (available in Q2)

USB:

• Connector: USB 3.1
• Video Formats: MJPEG, YUY2
• Maximum Video Resolution: 2160p
• USB Video Class (UVC): UVC 1.1
• USB Audio Class (UAC): UAC 1.0

Web UI:

• Live Video Preview: Yes
• Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment: Exposure, White Balance, Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools:

• IP Search and Configuration Tool: Support Windows® 7 or later
• PTZ Management: Support Windows® 7 or later
• PTZ Control Panel: Supports iOS & iPadOS® 11 or later
• PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
• OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
• CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later

Warranty:

• Camera: 5 Years
• Accessories: 1 Year

Optional Accessories:

• AVer CL01 PTZ Camera Controller
• L-Type Wall Mount

• Camera
• Drilling Paper
• Ceiling Mount Bracket (x2)
• Quick Start Guide
• Cable Fixing Plate
• M2 x 4 mm Screw (x3)
• Power Adapter & Power Cord
• 1/4”-20 L=6.5 mm Screw (x2)
• Remote Control
• M3 x 6 mm Screw (x3)
• DIN 8 to D-Sub 9 Cable
• RS-232 In/Out Y Cable
• Cable Ties (x4)
