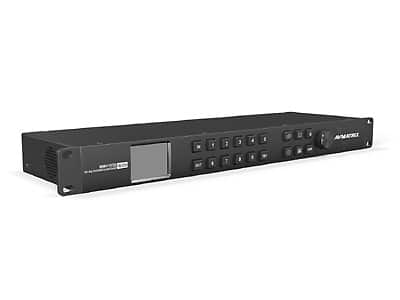

AVMATRIX MMV1630 16 Channel 3G-SDI Multiviewer

MULTIVEIWER MODE

• Inputs: SD/HD/3G-SDI×16
• Loop Outputs: SD/HD/3G-SDI×16
• Outputs: SDI×2, HDMI×1
• SDI Input Format Support: 1920×1080p 60/59.94/50/30/29.97/25/24/23.98 1920×1080PsF 30/29.97/25/24/23.98
  1920×1080i 60/59.94/50
  1280×720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC
• SDI/HDMI Outputs Format: 1080p 60/50/30/25/24
  1080i 60/50
  720p 60/50
• SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input
• SDI Video Rate: SD/HD/3G-SDI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M
• Color Space and Precision: YUV 4:2:2/YUV 4:4:4/RGB 4:4:4 (SDI input) YUV 4:2:2 (Multiview HDMI/SDI output) SD/HD/3G-SDI/DVB-ASI×16

SWITCHER MODE

• Inputs: SD/HD/3G-SDI/DVB-ASI×16
• Outputs: SD/HD/3G-SDI/DVB-ASI×16
• SDI Format Support: 2048×1080p 30/29.97/25/24/23.98
  2048×1080PsF 30/29.97/25/24/23.98
  1920×1080p 60/59.94/50/30/29.97/25/24/23.98
  1920×1080PsF 30/29.97/25/24/23.98
  1920×1080i 60/59.94/50
  1280×720p 60/59.94/50/30/29.97/25/24/23.98
  625i 50 PAL, 525i 59.94 NTSC
• SDI Auto Switching: Auto selects SD, HD and 3G-SDI on input
• SDI Video Rate: SD/HD/3G-SDI
• SDI Compliance:
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M
  SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI
• Color Space and Precision Control: YUV 4:2:2/YUV 4:4:4/RGB 4:4:4/XYZ 4:4:4

CONTROLS

• Control: Front panel buttons and knob control
  LAN (Software control and update)
  RS-422 (Reserved)

POWER

• Power Connector: Threaded locking connector
• Voltage Range: DC 12-20V
• Power Supply:
• PS-1, PS-2, power redundancy
• Power Consumption: 36W

ENVIRONMENT

• Operating Temperature: 0°C-60°C
• Storage Temperature: -30°C-70°C
• Relative Humidity: 0%-90% non-condensing
• Size: Standard 19″ 1 rack unit
• Weight: 2kg
• Warranty: 3 year limited warranty

• Compact 1RU 16 Channel 3G-SDI Multiviewer with 16×16 3G-SDI Matrix Switcher
• DC 12V 5A Power Adapter × 2
