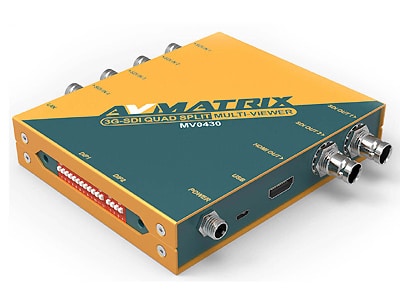

AVMATRIX MV0430 3G-SDI Quad Split Multiviewer

Connections

• SDI Video Input: 4×SD/HD/3G-SDI(75Ω BNC)
• SDI Video Output: 2×SD/HD/3G-SDI(75Ω BNC)
• Configuration: DIP switches, LAN and USB
• HDMI Video Output: 1×HDMI type A
• Updates: LAN

Standards

• SDI Input Format Support
  1080p 60/59.94/50
  1080p 30/29.97/25/24/23.98
  1080PsF 30/29.97/25/24/23.98
  1080i 60/59.94/50
  720p 60/59.94/50
  720p 30/29.97/25/24/23.98
  625i 50 PAL
  525i 59.94 NTSC
• SDI Auto Switching: Auto selects SD/HD/3G-SDI on input
• SDI Video Rate: SD/HD/3G-SDI
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M
• SDI Color Space and Precision: YUV or RGB for inputs, YUV for outputs
• SDI & HDMI Output Format Support
  1080p 60/50/30/25/24
  1080i 60/50
  720p 60/50/30/25

Power

• Power: Threaded locking connector
• Power Consumption: 6W
• Voltage Range: DC 6-24V

Physical Specifications

• Dimension: 125.5×104×24.5mm
• Net Weight: 512g
• Gross Weight: 1200g

Enviornmental Specifications

• Operating Temperature: -20℃~60℃
  0℃~60℃(HDMI output)
• Storage Temperature: -30℃~70℃
• Relative Humidity: 0%~90% non-condensing
• Warranty: 3 Year Limited Manufacturer’s Warranty

• MV0430 (3G-SDI Quad Split Multi-viewer)
• 2pcs Mounting Brackets
• DC 12V Universal Power Supply with International Socket Adapters
