AVMATRIX PVS0613U Portable 6-Channel SDI/HDMI Multi-format Streaming Switcher
USD 1,299.00 excl. Tax
AVMATRIX VS0601U Mini 6-Channel Streaming Switcher
USD 783.00 excl. Tax
AVMATRIX PVS0615U 6-Channel Multi-Format Streaming Switcher
USD 2,199.00 excl. Tax
- Uncompressed capture for live streaming, comply with UVC & UAC
- Portable All-In-One design with 15.6 inch FHD LCD display for multiview
- 6 channel inputs: 4×SDI and 2×HDMI/ DVI-I/ VGA/ USB
- 1×USB type-C out, 3×SDI PGM/ AUX out
- 2×HDMI PGM & 1×HDMI multiview out
- Multiformat input auto-detected and PGM/AUX output format selectable
- T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- Luma Key/ Chroma Key/ Recordder/
- Audio mixer: TRS audio & SDI, HDMI, USB embedded audio
| Weight | 8 kg |
|---|
Description
Click to rate this post!
[Total: 6 Average: 5]

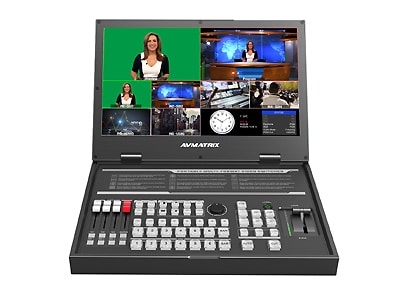

AVMATRIX PVS0615U Portable 6-Channel SDI/HDMI Multi-format Streaming Video Switcher
AVMATRIX PVS0615U is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and video recording. The unit integrated a 15.6” LCD monitor which can be used in a wide variety of venues for events, seminars, etc.
Key Features for SDI/HDMI Multi-format Streaming Video Switcher
- Uncompressed Capture for Live Streaming: Immerse your audience in stunning clarity with uncompressed capture, ensuring every detail is preserved for a captivating viewing experience. Compliant with UVC & UAC standards, this switcher guarantees seamless integration and compatibility with a wide range of devices.
- Portable All-In-One Design: Experience unparalleled convenience with the portable all-in-one design of the AVMATRIX PVS0615U. Featuring a 15.6-inch Full HD LCD display for multiview, this compact unit offers everything you need for professional-grade productions on the go.
- 6 Channel Inputs: With four SDI and two versatile HDMI/DVI-I/VGA/USB inputs, the AVMATRIX PVS0615U provides exceptional flexibility to accommodate various sources, including cameras, computers, and media players. Say goodbye to limitations and hello to endless creative possibilities.
- Versatile Output Options: Take control of your output with a USB Type-C out, three SDI Program (PGM)/AUX outs, and two HDMI PGM outs, along with one HDMI multiview out. Whether you’re streaming to multiple platforms or need to monitor your production in real-time, these output options offer unmatched versatility.
- Selectable Output Formats: Auto-detect and select the preferred format for Program (PGM) and AUX outputs, ensuring seamless integration and compatibility with your existing setup. Say goodbye to compatibility issues and hello to hassle-free operation.
- Dynamic Transition Effects: Elevate your productions with T-Bar, AUTO, and CUT transitions, as well as MIX, FADE, and WIPE effects. Whether you’re switching between scenes or adding visual flair to your content, these dynamic transition options offer endless creative possibilities.
- Keying and Recording: Unlock new creative possibilities with Luma Key and Chroma Key functionality, allowing you to superimpose images or video onto your scenes seamlessly. Additionally, the built-in recorder feature enables you to capture your productions for later use or distribution.
- Audio Mixer: Achieve pristine sound quality with the integrated audio mixer, supporting TRS audio, as well as SDI, HDMI, and USB embedded audio sources. Ensure clear and balanced audio in your live streams and recordings for a professional-quality finish.
Related Products:
Specifications
Click to rate this post!
[Total: 6 Average: 5]
LCD Display
- Size: 15.6 inch
- Resolution: 1920×1080
Inputs
- Video Inputs: 4×3G/HD/SD-SDI, 2×HDMI/DVI/VGA/USB
- Bit Rate: 270Mbps~3Gbps
- Impedance: 75Ω (SDI/VGA), 100Ω (HDMI/DVI)
- SDI Input Format
1080p 60/59.94/50/30/29.97/25/24/23.98
1080psF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
625i 50 PAL, 525i 59.94 NTSC - HDMI Input Format
4K 60/50/30, 2K 60/50/30
1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
1080i 50/59.94/60
720p 60/59.94/50/30/29.97/25/24/23.98
576i 50, 576p 50, 480i 60, 480p 60 - VGA/DVI Input Format
1920×1080 60Hz/ 1680×1050 60Hz/
1600×1200 60Hz/ 1600×900 60Hz/
1440×900 60Hz/ 1366×768 60Hz/
1360×768 60Hz/ 1 280×1024 60Hz/
1280×960 60Hz/ 1280×800 60Hz/
1280×768 60Hz/ 1280×720 60Hz/
1152×864 60Hz/ 1024×768 60Hz/
640×480 60Hz - SDI Video Rate: Auto detection, SD/HD/3G-SDI
- SDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424M
- Bit Rate: 270Mbps~3Gbps
- Color Space and Precision
SDI: YUV 4:2:2;
HDMI: RGB 444; YUV 444;YUV 422
Outputs
- PGM Outputs: 3×3G/HD/SD-SDI; 2×HDMI
- PGM Output Format: 1080p 50/60/30/25/24
1080i 50/60 - Multiview Output: 1×HDMI
- Multiview Output Format: 1080p 60
- Return Loss: >15dB 5MHz~3GHz
- Signal Amplitude: 800mV±10% (SDI/HDMI/DVI/VGA)
- Impedance SDI: 75Ω; HDMI: 100Ω
- DC Offset: 0V±0.5V
USB Output
- USB interface: 1×USB3.0 Type-C (USB3.1 Gen1, up to 200MB/s)
- Output Format
1920×1200, 1920×1080, 1680×1050, 1440×900, 1368×768,1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 1024×576, 960×540, 856×480, 800×600, 768×576, 720×576, 720×480, 640×480, 640×360 - Frame Rate: Up to 60fps
- Supports OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), Mac OS (10.8 and above)
- Software compatibility: OBS studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuikcTime Player, Face time, Twitch.tv, etc. (Windows) etc.
Audio
- Audio Input: 1×TRS(L/R), 50 Ω
- Audio Output: 1×TRS(L/R), 50 Ω; 3.5mm Earphone×1, 100 Ω
Others
- LAN: RJ45
- SD Card Slot: 1
- Power: DC 8-15V, 2.75A
- Consumption: <33W
- Operation Temperature: -20℃~60℃
- Storage Temperature: -30℃~70℃
- Operation Humidity: 20%~70%RH
- Storage Humidity: 0%~90%RH
- Dimension: 375×271.5×43.7mm
- Weight: 3.8Kg
- Warranty: 2 Year Limited
- Accessories: 1×Power Supply (DC12V 5A). 1×User Manual, 1×USB Type-C Cable
