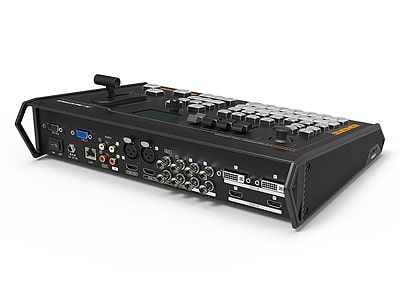

AVMATRIX VS0605U Mini 6-Channel Streaming Switcher

Inputs

• Video Inputs: 4×SDI, 2×HDMI/DVI-I/VGA/USB
• Bit Rate: 270Mbps~3Gbps
• Impedance: 75Ω (SDI/VGA), 100Ω (HDMI/DVI)
• SDI Input Format
  1080p 60/59.94/50/30/29.97/25/24/23.98
  1080psF 30/29.97/25/24/23.98
  1080i 60/59.94/50
  720p 60/59.94/50/30/29.97/25/24/23.98
  625i 50 PAL, 525i 59.94 NTSC
• HDMI Input Format
  4K 60/50/30, 2K 60/50/30
  1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
  1080i 50/59.94/60
  720p 60/59.94/50/30/29.97/25/24/23.98
  576i 50, 576p 50, 480i 60, 480p 60
• DVI-I/ VGA Input Format
  1920×1080 60Hz/ 1680×1050 60Hz/
  1600×1200 60Hz/ 1600×900 60Hz/
  1440×900 60Hz/ 1366×768 60Hz/
  1360×768 60Hz/ 1 280×1024 60Hz/
  1280×960 60Hz/ 1280×800 60Hz/
  1280×768 60Hz/ 1280×720 60Hz/
  1152×864 60Hz/ 1024×768 60Hz/
  640×480 60Hz
• SDI Video Rate: Auto detection, SD/HD/3G-SDI
• SDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424M
• Bit Rate: 270Mbps~3Gbps
• Color Space and Precision
  SDI: YUV 4:2:2;
  HDMI: RGB 444; YUV 444; YUV 422

USB Output

• USB interface: 1×USB3.0 Type-C (USB3.1 Gen1, up to 200MB/s)
• Output Format: 1920×1200, 1920×1080, 1680×1050, 1440×900, 1368×768,1280×1024, 1280×960, 1280×800, 1280×720, 1024×768, 1024×576, 960×540, 856×480, 800×600, 768×576, 720×576, 720×480, 640×360
• Frame Rate: Up to 60fps
• Supports OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and
  above), Mac OS (10.8 and above)
• Software compatibility: OBS studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuikcTime Player, Face time, Wirecast, CAMTASIA, Ecamm.live, Twitch.tv, etc. (Windows) etc.

Outputs

• PGM Outputs: 2×HD/3G-SDI; 1×HDMI
• AUX Output: 1×HD/3G-SDI
• PGM Output Format
  1080p 50/60/30/25/24
  1080i 50/60
• Multiview Output: 1×3G-SDI; 1×HDMI Type A
• Multiview Output Format: 1080p60
• Return Loss: >15dB 5MHz~3GHz
• Signal Amplitude: 800mV±10% (SDI/HDMI/DVI-I/VGA)
• Impedance: SDI: 75Ω; HDMI: 100Ω
• DC Offset: 0V±0.5V

Audio & Others

• Audio Input
  1×TRS(L/R), 50Ω
  1×XLR(L/R), 50Ω
• Audio Output: 1×TRS(L/R), 50Ω;
• LAN: RJ45
• SD Card Slot: 1
• Power: DC 12V In, 1.7A
• Consumption: ≤20W
• Operation Temperature: -20℃~60℃
• Storage Temperature -30℃~70℃
• Operation Humidity: 20%~70%RH
• Storage Humidity: 0%~90%RH
• Dimension: 322.4×19.7×57.8cm
• Weight: Net Weight: 1.9kg, Gross Weight: 3.7kg
• Warranty: 2 Year Limited
• Accessories: 1×Power Supply (DC12V 5A), 1× USB A-C cable, 1×RS422 Connector, 1×User Manual
