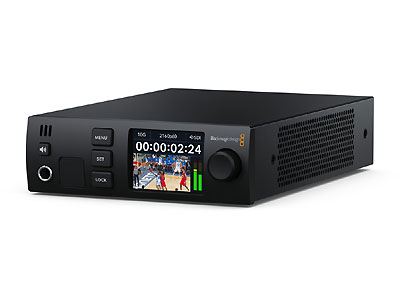

Blackmagic 2110 IP UpDownCross 12G Professional Standards Converter

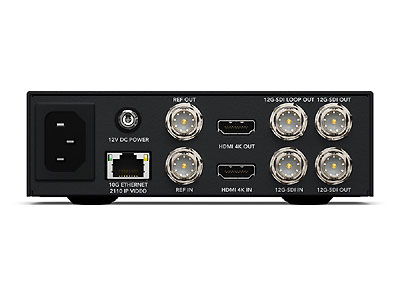

Connections:

• SDI Inputs: 1
• SDI Loop Outputs: 1
• SDI Outputs: 2
• SDI Rates: SD, 1.5G, 3G, 6G and 12G
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• SMPTE 2110 Input / Output: 1 x 10G Ethernet
• SMPTE ST 2110 IP Audio Inputs / Outputs: 16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet.
• SDI Audio Inputs: 16 channels embedded audio.
• SDI Audio Outputs: 16 channels embedded audio.
• HDMI Audio Inputs: 8 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Analog Audio Outputs: 1 x 6.35 mm headphone jack.
• Webcam Outputs: 1 x USB-C up to 1080p60
• Reference In: 1
• Reference Output: 1
• Ethernet: Ethernet supports 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out, configuration and software updates.
• Computer Interface: USB-C for webcam out, updates and configuration

Video Standards:

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• 2K Video Standards: 720p50, 720p59.94, 720p60
  1080i50, 1080i59.94, 1080i60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SMPTE Compliance: SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
• SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
• Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• Color Precision: 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
• Color Space: Rec. 601, Rec. 709, Rec. 2020
• HDMI HD Video Standards: 720p50, 720p59.94, 720p60
  1080i50, 1080i59.94, 1080i60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• HDMI Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p62
• HDMI 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
• HDMI Color Precision: 4:2:2
• HDMI Color Space: YUV

Audio:

• Local Audio Monitoring: Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
• IP Video Compliance:
• SMPTE 2110-20 (Uncompressed Video): IGMP v2
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow
  Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2)
  ST 2059-1
  ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2
  Peer-to-peer via mDNS/DNS‑SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Control:

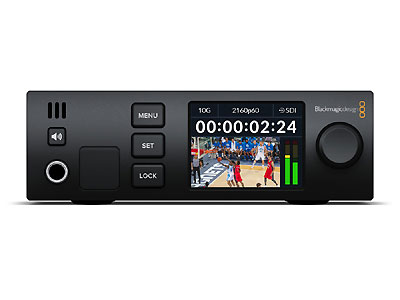

• Built in Control Panel: Built in control panel including 3 buttons, spin knob control and 2.2-inch color display.
• External Control: RJ-45 10Gb/s Ethernet and USB-C.
• REST API over Ethernet for external control via HTTP when used with REST client applications.

Displays:

• Built in 2.2-inch LCD for monitoring video, audio and status plus menu settings.

Operating Systems:

• Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11.

Power Requirements:

• Power Supply: 1 x Internal 100 – 240V AC 50/60Hz.
• Power Inputs: 1 x IEC C14 socket for AC power.
  1 x 12V DC Input
• Power Usage: 30 W max.

Environmental Specifications:

• Operating Temperature: 0° C to 40° C (32° ‑ 104°F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non‑condensing
• Warranty: 1 Year Limited Manufacturer’s Warranty.

• Blackmagic 2110 IP UpDownCross 12G
• Welcome wallet with QR code for software download
