Clear-Com DX300ES System Digital Wireless Intercom Systems
USD 3,325.00 excl. Tax
This product has been discontinued.
Description
Click to rate this post!
[Total: 1 Average: 5]

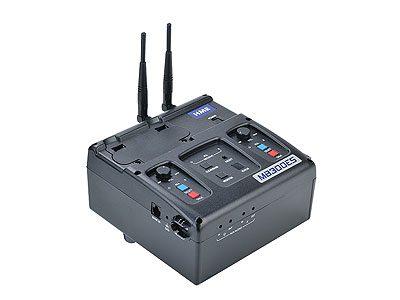

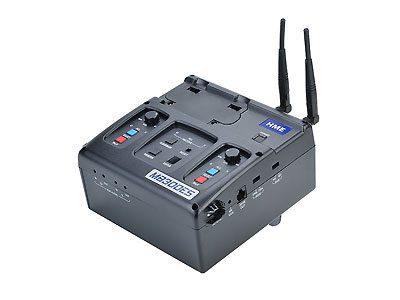

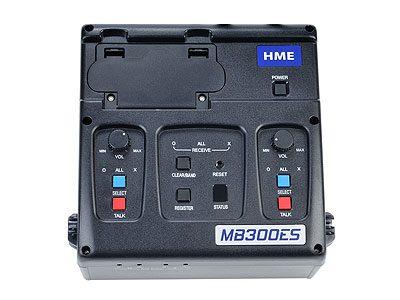

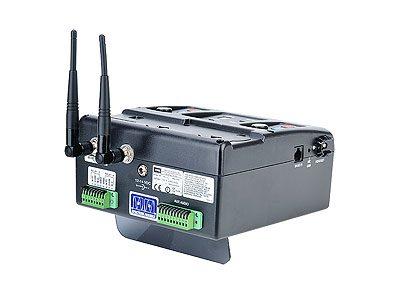

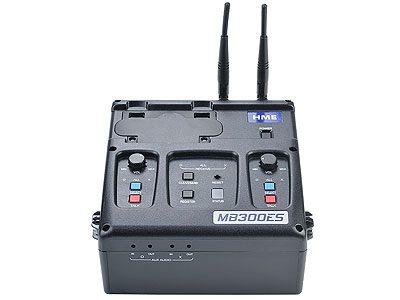

Clear-Com DX300 System Two-Channel 2.4GHz Mobile Base Station
Clear-Com DX300ES system supports hands-free, two-way digital conversations with interfacing for two channels of external radio or intercom communications. Its compact design makes it highly portable and very quick to set up and operate.
Clear-Com DX300ES system Features:
- Up to 4 full-duplex or 12 half-duplex beltpack and/or all-in-one headset users per base station
- Link two bases together to support a maximum of 30 users
- Secure 64-bit encryption
- Dedicated channel relays
- 10-pin terminal strip connector for easy connection to 4-wire intercom systems
- Triple diversity (space, time, and frequency) operation for extreme multi-path environments
- No frequency coordination or licensing for operation
- Power via 100-240 VAC, 12-14 VDC, 1.5V “AA” batteries, or an optional rechargeable BAT850 battery
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Technical Specifications | |
| System Specifications | Frequency Range: All (2400 – 2483.5MHz) |
| Low (2401.92 to 2439.936MHz) | |
| High Band (2443.392 to 2481.408MHz) | |
| Frequency Response: 200Hz to 3.5kHz | |
| Security: 64-Bit Encryption | |
| Temperature Range: 4 to131°F (-20 to 55°C) Typ. | |
| Transmit/Receive: Frequency-Hopping, Spread Spectrum (FHSS) | |
| Transmit Power: 100mw Burst | |
| Modulation Type: Gaussian Filtered FSK, TDMA | |
| Frequency Stability: 13ppm | |
| Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over Temperature | |
| RF Sensitivity: <-90dBm w 10-3 BER | |
| System Distortion: <2% | |
| Dynamic Range: -90dBm to –20dBm; | |
| FCC License: None Required (Approved for Worldwide Use) | |
| FCC Acceptance: Part 15 | |
| Base Station Specifications | Antenna Type: External, Dual Diversity ½-Wave Dipole, R-TNC Connector (x2) |
| Power Requirements: 100–240V AC, 50-60Hz or 12-14V DC or Six 1.5V AA Batteries or | |
| BAT850 Rechargeable Battery (Optional) | |
| Size: 8 x 8 x 3.5in (20.32 x 20.32 x 8.89cm) | |
| Weight: 2.75 lb. (1.25kg) with Battery | |
| AUX I/O: 600 Ω Balanced, with Level Adjustment | |
| Headset Connector (x2): Mini-DIN | |
| Headset Output: 200mW into 32W | |
| Relay: 8-Pin Phoenix – NC,COM,NO,GND (x2) | |
| 2A @ 30V DC | |
