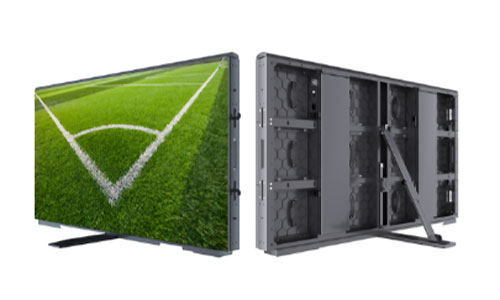

COMMBOX LED Stadium designed for Sports Stadiums

General:

• Model: CBLWOSM06
• Design: SMD
• Application: Outdoor
• Cabinet Size (L*W*H)/(mm): 1600x960x120
• Cabinet Resolution (dots): 256×144
• Cabinet Weight (kg): 46
• Cabinet Material: Aluminium Sheet Metal
• Pixel Pitch (mm): 6.25
• Module Resolution (bit): 64×48
• Module Size (L*W)/(mm): 400×300
• LED Module Configuration: 4×3
• Pixel Density (dots/m2): 25,600

Viewing Specifications:

• Brightness (nits): 6,000
• Contrast Ratio: >6,000:1
• Refresh Rate Frequency (Hz): >3840
• Color Processing Depth (Bit): 14
• Viewing Angle (H/V): 160/120

Power:

• AC Input Voltage (V): AC100-240
• AC Input Frequency (Hz): 50/60
• Maximum Power Consumption (W/m2): 750
• Average Power Consumption (W/m2): 250
• Maximum Power Consumption (W/unit): 1080
• Average Power Consumption (W/unit): 360

Operation:

• Working Temperature (C°): -20-50+
• Working Humidity (RH): 10%~90% without condensation
• IP Rating: Front: IP65; Rear: IP54
• Brightness Uniformity: >95%
• LEDs Life Time (hrs): 100,000
• Service Access: Front + Rear Access
• Certifications: CE, RCM, RoHS

Warranty:

• 3 year onsite swap-out plus optional
• 4 or 5-year spare parts warranty
